Legrand TX3 2-pole 6A miniature circuit breaker with 10kA breaking capacity, C curve characteristic, and IP20 protection. Ideal for residential and small commercial electrical installations with flexible supply options.

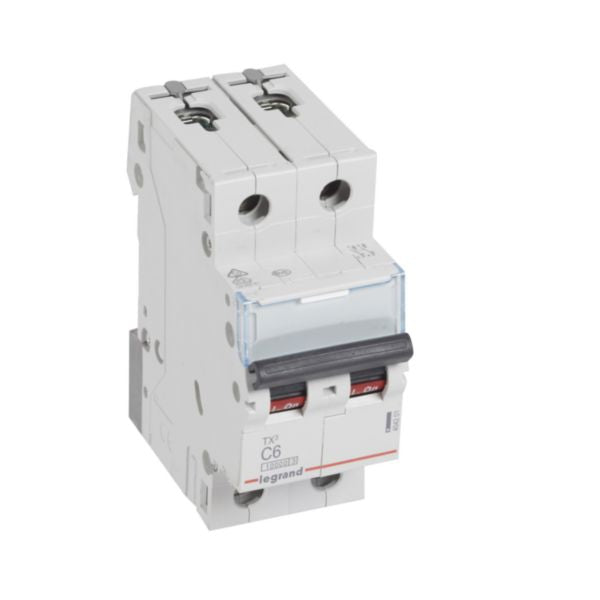

The Legrand TX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with a rated breaking capacity of 10,000A according to IEC 60898-1 standard. This 2-pole device features a C curve characteristic with a tripping threshold between 5In and 10In, making it ideal for residential and small commercial applications. The breaker can be supplied by copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), providing flexible installation options for various electrical configurations.
With an IP20 degree of protection against solid bodies larger than 12.5mm, this fingerproof device meets the highest safety standards. The TX3 MCB incorporates energy limitation class 3 according to IEC 60898-1, ensuring maximum protection and minimal let-through energy during fault conditions. The device features a special DIN rail clamp on the bottom side, allowing independent removal when the fork busbar is still in place. A convenient label holder enables clear identification of circuits, while ON/OFF indicators printed on the handle with red and green backgrounds provide easy status identification.
The TX3 MCB is compatible with Legrand DX3 auxiliaries and accessories, and can be connected to aluminum cable using the appropriate Legrand terminal accessory. This product complies with substance-restriction requirements and has been designed following environmentally conscious processes. Installation should be performed by qualified electricians in compliance with local electrical installation rules to ensure safety and optimal performance.
Key Features
- 10,000A breaking capacity according to IEC 60898-1 standard for household installations
- C curve characteristic with tripping threshold between 30A-60A (5In to 10In)
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum protection and minimal let-through energy
- Compatible with Legrand DX3 auxiliaries, accessories, and aluminum cable terminals
- Special DIN rail clamp allowing independent removal with busbar in place
- Clear circuit identification with label holder and ON/OFF status indicators
- Multiple supply options: copper cable, prong busbar, or fork busbar
- Environmentally conscious design with substance-restriction compliance
- Thermal-magnetic protection against overloads and short-circuits
Technical Specifications
| Specification |
Value |
| Product Name | MCB TX3 10000A 2 Pole 6A Curve C |
| Manufacturer | Legrand |
| Reference Number | 404201 |
| EAN Code | 3414970394019 |
| Number of Poles | 2 |
| Rated Current | 6 A |
| Release Characteristic | C Curve |
| Breaking Capacity (Icn) | 10,000 A at 400V / 16,000 A at 230V |
| Rated Voltage | 400 V |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Voltage Type | AC |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | 3 |
| Degree of Protection | IP20 |
| Degree of Impact Strength | IK02 |
| Width (Modular Spacing) | 2 modules |
| Width | 35.4 mm |
| Height | 88 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Color | Grey (RAL 7035) |
| Connection Type | Screwed Terminal, Busbar and Cable |
| Mounting Method | DIN Rail |
| Electric Supply Direction | By Top or Bottom |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to 70°C |
| Nominal Voltage Range | 240-415 V |
| Halogen Free | Yes |
| Concurrently Switching Neutral | No |
| Flush-mounted Installation | Yes |
| Explosion-proof | No |
| Additional Equipment Possible | Yes |
| Terminal Marking Indication | No |
| Label Space/Information Surface | Yes |
