Thermal-magnetic 2-pole circuit breaker with 2A rating, C-curve characteristic, and 10000A breaking capacity for residential and small commercial wiring protection with IP20 rating and DIN rail mounting.

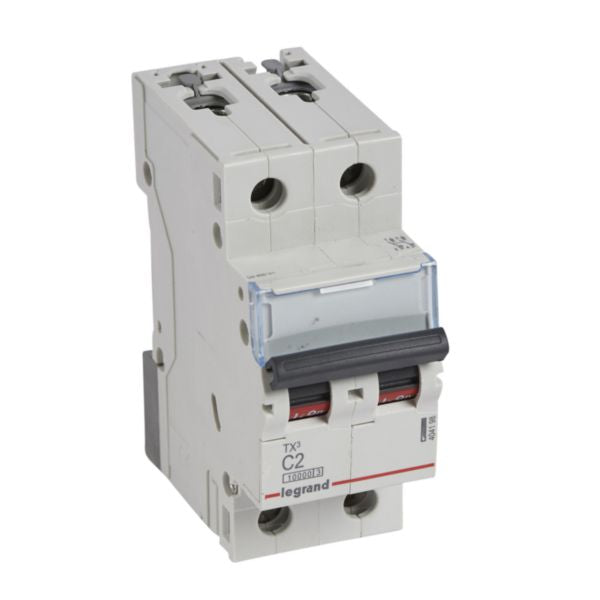

The Legrand TX3 MCB (Miniature Circuit Breaker) is a thermal-magnetic circuit breaker designed to protect wiring installations against overloads and short circuits. With a 2-pole configuration, 2A rated current, and C-curve tripping characteristic, this device provides reliable protection with a breaking capacity of 10000A according to IEC 60898-1 standard. The breaker features IP20 protection rating, making it fingerproof against solid bodies larger than 12.5mm, and can be supplied via copper cable, prong busbar, or fork busbar connections on DIN rail mounting.
This circuit breaker offers advanced current limiting capabilities with energy limitation class 3 according to IEC 60898-1 standard, ensuring maximum protection for household and small commercial installations. The device operates at rated voltage of 400V with insulation voltage of 500V and impulse withstand voltage of 4kV. It features a special DIN rail clamp on the bottom side allowing independent removal when fork busbar is still in place. The TX3 is equipped with a label holder for clear circuit identification and On/Off indication printed on the handle with red and green backgrounds for easy status identification.
The product is halogen-free and complies with substance-restriction requirements, designed in an environmentally conscious process. It can be equipped with Legrand DX3 auxiliaries and accessories, and can be connected to aluminium cable with appropriate terminal accessories. With storage temperature range of -40 to 70°C, frequency range of 50-60Hz, and pollution degree 2 rating, this breaker is suitable for various installation environments and provides professional-grade electrical protection for residential and small commercial applications.
Key Features
- Breaking capacity of 10000A according to IEC 60898-1 standard for household installations
- C-curve tripping characteristic with short-circuit threshold between 10A and 20A (5In to 10In)
- IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
- Energy limitation class 3 for maximum protection and reduced let-through energy
- Multiple supply options: copper cable, prong busbar, or fork busbar connections
- Special DIN rail clamp allowing independent removal with busbar still in place
- Label holder for clear circuit identification and status indication
- Compatible with Legrand DX3 auxiliaries and accessories
- Halogen-free and environmentally conscious design
- Can be connected to aluminium cable with appropriate terminal accessories
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Manufacturer | Legrand |
| Model Series | TX3 |
| Reference Number | 404198 |
| EAN Code | 3414970393951 |
| Number of Poles | 2 poles (2P) |
| Rated Current | 2 A |
| Release Characteristic | C curve |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 16 kA according to EN 60898 |
| Breaking Capacity at 400V | 10 kA (10000A) according to EN 60898 |
| Current Limiting Class | 3 |
| Frequency Range | 50-60 Hz |
| Protection Degree | IP20 |
| Impact Strength Rating | IK02 |
| Mounting Method | DIN rail |
| Width | 35.4 mm (2 modular spacings) |
| Height | 88 mm |
| Depth | 77.8 mm (built-in depth 44 mm) |
| Color | Grey (RAL 7035) |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom |
| Pollution Degree | 2 |
| Storage Temperature Range | -40 to 70°C |
| Nominal Voltage Range | 240-415 V |
| Halogen Free | Yes |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes |
| Concurrently Switching Neutral | No |
| Terminal Marking Indication | No |
| Label Space | Yes |
