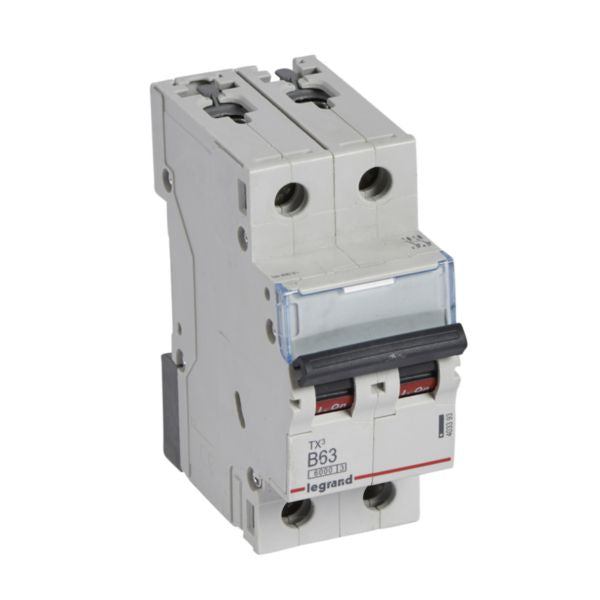

Shop Legrand TX3 MCB 2 Pole 63A B Curve Circuit Breaker | 403393 In Iraq Best Prices
Thermal magnetic 2-pole circuit breaker with 63A rating, B curve tripping, 6000A breaking capacity, IP20 protection, and DIN rail mounting for reliable overcurrent and short-circuit protection.
The Legrand TX3 MCB is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with exceptional reliability. This 2-pole device features a 63A rated current and B curve tripping characteristic, providing protection between 189A and 315A for short-circuit conditions. With a breaking capacity of 6000A according to IEC 60898-1 standard, this circuit breaker is ideal for household and small commercial installations. The device offers IP20 protection against solid bodies larger than 12.5mm, ensuring fingerproof safety in residential and commercial environments.
The TX3 MCB is engineered for versatile installation options, supporting copper cable, prong busbar (top or bottom side), or fork busbar (bottom side) connections. It features a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar supplying the row remains in place. The circuit breaker incorporates maximum energy limitation with class 3 current limiting capability, minimizing let-through energy during fault conditions. With its compact 44mm built-in depth and modular design spanning 2 spacings, this device integrates seamlessly into standard distribution panels.
This product includes a convenient label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status recognition. The TX3 MCB is compatible with Legrand DX3 auxiliaries and accessories, offering flexibility for enhanced functionality. Designed with environmental consciousness, this device complies with substance-restriction requirements and halogen-free standards, making it an eco-friendly choice for modern electrical installations. Installation should be performed by qualified electricians in compliance with local electrical codes and regulations.
Key Features
- 6000A breaking capacity according to IEC 60898-1 standard for household installations
- B curve tripping characteristic with short-circuit threshold between 189A and 315A (3-5 times rated current)
- IP20 fingerproof protection against solid bodies larger than 12.5mm per IEC/EN 60529
- Class 3 current limiting with maximum energy limitation for enhanced safety
- Flexible connection options including copper cable, prong busbar, and fork busbar
- Special DIN rail clamp allowing independent removal with busbar in place
- Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
- Integrated label holder for clear circuit identification and status indication
- Halogen-free and environmentally conscious design with RoHS compliance
- Compact 44mm built-in depth with 2-module width for space-efficient installation
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Number of Poles | 2 poles |
| Rated Current | 63 A |
| Release Characteristic | B curve (3-5 In) |
| Breaking Capacity (Icn) | 6000A at 400V / 10000A at 230V according to IEC 60898-1 |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage (Ui) | 500V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK02 |
| Built-in Depth | 44 mm |
| Width | 35.4 mm (2 modular spacings) |
| Height | 88 mm |
| Overall Depth | 77.8 mm |
| Mounting Method | DIN rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Electric Supply Direction | By the top or bottom |
| Color | Grey (RAL 7035) |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 240-415V |
| Halogen Free | Yes |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes (DX3 auxiliaries and accessories) |
| Reference Number | 403393 |
| EAN Code | 3414970387356 |
