Description

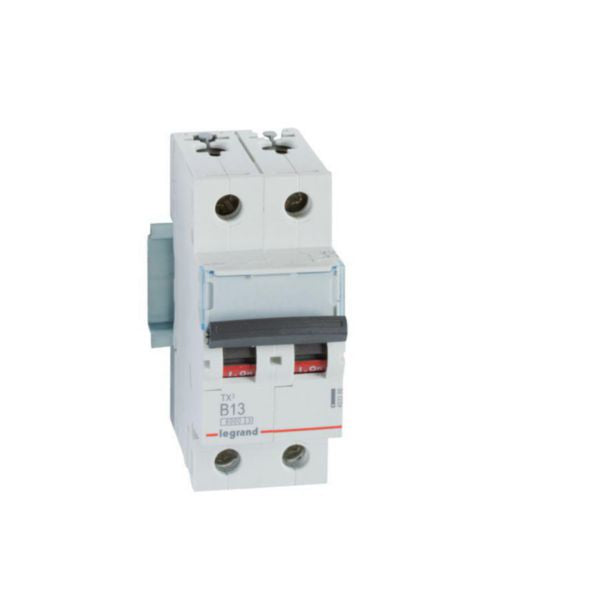

Shop Legrand TX3 MCB 2 Pole 13A Curve B Circuit Breaker | 403386 In Iraq Best Prices

Legrand TX3 2-pole miniature circuit breaker rated 13A with 6000A breaking capacity, B curve release characteristic, and DIN rail mounting for household electrical protection.

The Legrand TX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit breaker designed to protect wiring installations against overloads and short circuits. With a breaking capacity of 6000A according to IEC 60898-1 standard, this 2-pole breaker features a B curve release characteristic that provides precise household protection. The device is rated for 13A at 400V nominal voltage and incorporates current limiting class 3 technology for maximum energy limitation. It accepts both cable and busbar supply (top or bottom) for flexible DIN rail mounting, making it ideal for residential and small commercial electrical panels. This circuit breaker is engineered with advanced safety features including fingerproof protection (IP20) against solid bodies larger than 12.5mm and includes an intuitive label holder for circuit identification. The B curve tripping threshold operates between 39A and 65A (3-5 times the rated current), ensuring reliable protection for standard household circuits. The device complies with substance-restriction requirements and has been designed following environmentally conscious manufacturing processes. Its compact 2-module width (35.4mm) and 44mm built-in depth make it suitable for standard DIN rail installations in switchboards and distribution panels. The TX3 breaker can be equipped with Legrand DX3 auxiliaries and accessories for enhanced functionality, and supports connection to aluminum cables using Legrand DX3 terminal accessories. The grey-colored housing (RAL 7035) features clear ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. With a storage temperature range of -40°C to 70°C and rated impulse withstand voltage of 4kV, this breaker delivers reliable long-term performance in various installation environments.

Key Features

6000A breaking capacity according to IEC 60898-1 standard for household installations
B curve release characteristic with tripping threshold between 39A and 65A (3-5 times rated current)
Accepts cable or busbar supply (copper cable, prong busbar top/bottom, fork busbar bottom) for flexible installation
IP20 fingerproof protection against solid bodies larger than 12.5mm with current limiting class 3
Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
Clear ON/OFF indication on handle with red/green backgrounds for easy status identification
Label holder for convenient circuit identification and tracking
DIN rail mounting with special clamp allowing independent removal during busbar operation

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB) - Thermal Magnetic
Rated Current	13 A
Number of Poles	2 poles (2 protected poles)
Release Characteristic	B curve (tripping threshold 3-5 times rated current)
Breaking Capacity	6000A at 400V / 10000A at 230V (IEC 60898-1)
Rated Voltage	400V AC
Rated Insulation Voltage	500V
Rated Impulse Withstand Voltage	4 kV
Frequency Range	50-60 Hz
Current Limiting Class	Class 3 (maximum energy limitation)
Degree of Protection	IP20 (fingerproof)
Degree of Impact Strength	IK02
Width in Modular Spacings	2 modules
Width	35.4 mm
Height	88 mm
Depth	77.8 mm
Built-in Depth	44 mm
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable (top or bottom supply)
Colour	Grey (RAL 7035)
Concurrently Switching Neutral	No
Flush-mounted Installation	Yes
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	240-415V
Halogen Free	Yes
Additional Equipment Possible	Yes (DX3 auxiliaries and accessories)
Terminal Marking Indication	No
Label Space/Information Surface	Yes
Voltage Type	AC

Order Legrand TX3 MCB 2 Pole 13A Curve B Circuit Breaker | 403386 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
