Single-pole thermal magnetic circuit breaker with 10kA breaking capacity, C curve characteristic, and IP20 fingerproof protection for residential and small commercial wiring installations.

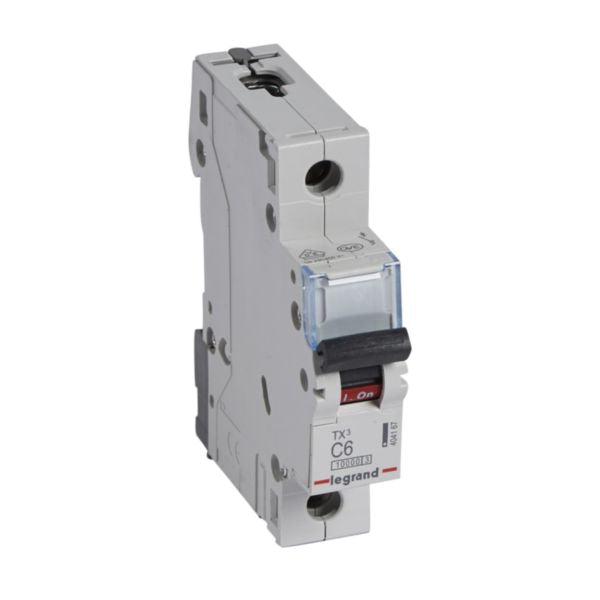

The Legrand TX3 MCB (Miniature Circuit Breaker) is a single-pole thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a breaking capacity of 10kA and C curve characteristic, this device offers reliable protection for residential and small commercial applications. The C curve provides a tripping threshold between 5 In and 10 In, making it ideal for circuits with moderate inrush currents. Featuring IP20 fingerproof safety protection, this circuit breaker prevents accidental contact with live parts and meets all modern safety standards including IEC 60898-1 compliance.
This single-pole breaker operates at 230V rated voltage with a rated insulation voltage of 500V and impulse withstand voltage of 4kV. The device can be supplied via copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), providing flexible installation options. With a built-in depth of 44mm and width of 17.8mm (1 modular spacing), it fits seamlessly into standard DIN rail mounted distribution boards. The TX3 features energy limitation class 3 according to IEC 60898-1, ensuring maximum protection and minimal let-through energy during fault conditions.
The Legrand TX3 includes convenient features such as a label holder for clear circuit identification and ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. It can be equipped with Legrand DX3 auxiliaries and accessories for enhanced functionality. The device is halogen-free and manufactured in an environmentally conscious process, complying with substance-restriction requirements. Installation should be performed by qualified electricians in compliance with local installation rules, and only Legrand brand accessories should be used for optimal performance and safety.
Key Features
- 10kA breaking capacity according to IEC 60898-1 standard for household installations
- C curve tripping characteristic between 5 In and 10 In for moderate inrush current applications
- IP20 fingerproof safety protection against solid bodies larger than 12.5mm
- Energy limitation class 3 providing maximum let-through energy limitation
- Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
- Label holder for clear circuit identification with ON/OFF indication on handle
- Flexible connection options: copper cable, prong busbar, or fork busbar
- Halogen-free construction manufactured in environmentally conscious process
- DIN rail mounted with independent removal capability
- Rated at 230V with 500V insulation voltage and 4kV impulse withstand voltage
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Number of Poles | 1 pole (single-pole) |
| Rated Current | 6 Amperes |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4kV |
| Breaking Capacity | 10kA at 230V |
| Trip Characteristic | C curve (5 In to 10 In) |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 (fingerproof) |
| Impact Strength | IK02 |
| Width | 17.8mm (1 modular spacing) |
| Height | 88mm |
| Built-in Depth | 44mm |
| Total Depth | 77.8mm |
| Color | Grey (RAL 7035) |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom |
| Mounting Method | DIN rail |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 240-415V |
| Pollution Degree | 2 |
| Halogen Free | Yes |
| Concurrently Switching Neutral | No |
| Flush-mounted Installation | Yes |
| Additional Equipment Possible | Yes (DX3 auxiliaries and accessories) |
| Reference Number | 404167 |
| EAN Code | 3414970393494 |
| Compliance Standard | IEC 60898-1 |
