Description

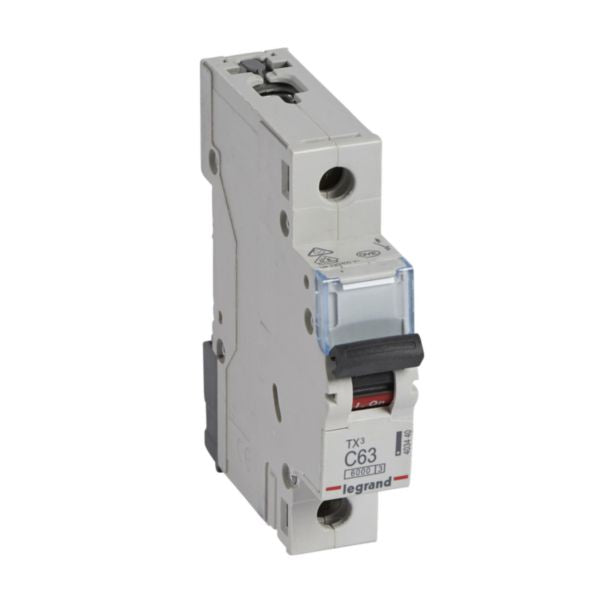

Shop Legrand TX3 MCB 1P 63A Curve C 6kA Circuit Breaker | 403440 In Iraq Best Prices

Legrand TX3 single-pole 63A circuit-breaker with 6kA breaking capacity and C curve protection for residential and commercial electrical installations. Features DIN rail mounting, IP20 protection, and energy limitation class 3.

The Legrand TX3 MCB 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with a breaking capacity of 6kA and C curve characteristic. This single-pole device is rated at 63A and 230V, making it ideal for residential and small commercial electrical installations. The MCB features a tripping threshold in case of short-circuit between 315A and 630A (C curve between 5 In and 10 In), ensuring reliable protection for your electrical circuits. This circuit-breaker can be supplied by copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), offering flexible installation options. It is protected against solid bodies larger than 12.5mm with an IP20 rating according to IEC/EN 60529 standard. The device is equipped with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar is still in place. Maximum level of limitation of let-through energy is achieved with energy limitation class 3 according to IEC 60898-1 standard. The TX3 MCB can be equipped with Legrand DX3 auxiliaries and accessories for enhanced functionality and can be connected to aluminium cable with Legrand DX3 terminal accessory. The product features a label holder for clear circuit identification and On/Off indication printed on the handle with red and green backgrounds for easy status identification. This device complies with substance-restriction requirements and has been designed in an environmentally conscious process, featuring halogen-free construction.

Key Features

Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
C curve characteristic with tripping threshold between 315A and 630A (5 In to 10 In)
Flexible supply options: copper cable, prong busbar (top/bottom), or fork busbar (bottom)
IP20 protection against solid bodies larger than 12.5mm with fingerproof design
Maximum energy limitation class 3 according to IEC 60898-1 standard
Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
Special DIN rail clamp allowing independent removal without disturbing busbar
Clear circuit identification with label holder and color-coded On/Off indication
Halogen-free construction complying with substance-restriction requirements
Environmentally conscious design with REACH and RoHS compliance

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit-Breaker (MCB)
Model	TX3
Number of Poles	1 pole (single pole)
Rated Current	63 A
Rated Voltage	230 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity (Icn)	6 kA at 230 V according to EN 60898
Release Characteristic	C curve
Short-Circuit Tripping Threshold	Between 315A and 630A (C curve: 5 In to 10 In)
Current Limiting Class	Class 3
Frequency	50-60 Hz
Voltage Type	AC
Degree of Protection (IP)	IP20
Degree of Impact Strength (IK)	IK02
Width	17.8 mm
Height	88 mm
Depth	77.8 mm (built-in depth: 44 mm)
Width in Modular Spacings	1
Color	Grey (RAL 7035)
Connection Type	Screwed terminal, Busbar and cable
Electric Supplying Direction	By the top or bottom
Mounting Method	DIN rail
Flush-Mounted Installation	Yes
Concurrently Switching Neutral	No
Pollution Degree	2
Storage Temperature Range	-40 to +70 °C
Nominal Voltage Range	240-415 V
Halogen Free	Yes
Explosion-Proof	No
Additional Equipment Possible	Yes
Label Space/Information Surface	Yes
Reference Number	403440
EAN Code	3414970388469
Compliance Standards	IEC 60898-1, IEC/EN 60529, RoHS, REACH

Order Legrand TX3 MCB 1P 63A Curve C 6kA Circuit Breaker | 403440 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
