Single-pole thermal-magnetic circuit breaker with 63A rated current, B-curve tripping, 6kA breaking capacity, and IP20 finger-safe protection for residential and commercial electrical installations.

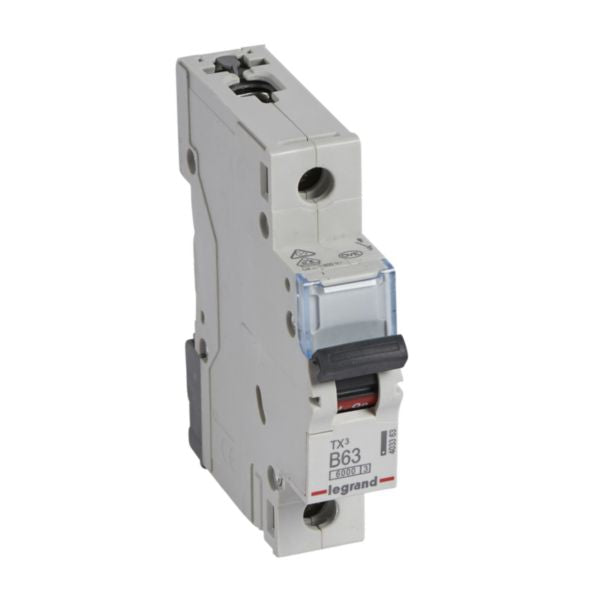

The Legrand TX3 MCB 6000A is a thermal-magnetic circuit breaker designed to protect residential and small commercial wiring installations against overloads and short-circuits. With a breaking capacity of 6kA, it is suitable for 230/400V AC networks and features a B-curve tripping characteristic at 63A rated current. The device offers IP20 finger-safe protection, preventing contact with live parts and solid bodies larger than 12.5mm. This single-pole breaker is equipped with a DIN rail clamp for easy installation and removal, even when fork busbars remain in place. The label holder allows for clear circuit identification with ON/OFF indication printed on the handle in green and red backgrounds respectively.
The TX3 MCB incorporates advanced protection features including current limiting class 3 according to IEC 60898-1 standard, ensuring maximum limitation of let-through energy during short-circuit events. It can be supplied by copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), providing flexible installation options. The breaker is compatible with Legrand DX3 auxiliaries and accessories, and can connect to aluminum cables using Legrand DX3 terminal accessories. With a compact design measuring 17.8mm width and 44mm built-in depth, it occupies only one modular spacing on standard DIN rails.
This product is manufactured with environmental consciousness and complies with substance-restriction requirements including RoHS and REACH directives. The halogen-free construction and grey RAL 7035 color finish make it suitable for modern electrical installations. Rated at 230V with an impulse withstand voltage of 4kV and operating frequency of 50-60Hz, the TX3 MCB delivers reliable performance across various climatic conditions with storage temperature range from -40°C to +70°C. Professional installation by qualified electricians is recommended to ensure compliance with local electrical codes and safety standards.
Key Features
- 6kA breaking capacity compliant with IEC 60898-1 standard for household installations
- B-curve tripping characteristic between 3In and 5In (189A to 315A) for optimal circuit protection
- IP20 finger-safe protection preventing contact with live parts and solid bodies exceeding 12.5mm
- Current limiting class 3 with maximum let-through energy limitation during short-circuits
- DIN rail mounting with special clamp allowing independent removal without disturbing busbar supply
- Compatible with Legrand DX3 auxiliaries, accessories, and aluminum cable terminals
- Clear circuit identification with ON/OFF indication in green and red on handle
- Compact single-modular spacing design (17.8mm width, 44mm depth) for space-efficient installation
- Flexible supply options via copper cable, prong busbar, or fork busbar connections
- Halogen-free, environmentally conscious design compliant with RoHS and REACH directives
Technical Specifications
| Specification |
Value |
| Product Type | Thermal-Magnetic Circuit Breaker (MCB) |
| Brand | Legrand |
| Series | TX³ (TX3) |
| Reference Number | 403363 |
| EAN Code | 3414970386489 |
| Number of Poles | 1 pole (single-pole) |
| Rated Current | 63 A |
| Release Characteristic | B-curve (3In to 5In tripping range) |
| Breaking Capacity | 6 kA (6000 A) |
| Rated Voltage | 230 V AC |
| Nominal Voltage Range | 240-415 V |
| Rated Insulation Voltage | 500 V |
| Impulse Withstand Voltage | 4 kV |
| Frequency | 50-60 Hz |
| Voltage Type | AC (Alternating Current) |
| Current Limiting Class | Class 3 (maximum energy limitation) |
| Short-Circuit Breaking Capacity | 6 kA at 230 V according to EN 60898 |
| Degree of Protection | IP20 (finger-safe protection) |
| Impact Strength Rating | IK02 |
| Pollution Degree | 2 |
| Width | 17.8 mm |
| Height | 88 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Modular Spacing | 1 module |
| Color | Grey |
| RAL Number | RAL 7035 |
| Mounting Method | DIN rail mounting |
| Installation Type | Flush-mounted (Yes) |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom electrical supply |
| Neutral Conductor Switching | No (does not switch neutral) |
| Halogen Free | Yes |
| Storage Temperature Range | -40°C to +70°C |
| Operating Temperature Range | -25°C to +70°C (typical) |
| Additional Equipment | Compatible with Legrand DX3 auxiliaries and accessories |
| Aluminum Cable Compatibility | Yes (with Legrand DX3 terminal accessory n° 4 063 10) |
| Label Space | Yes (label holder included) |
| Compliance Standards | IEC 60898-1, IEC/EN 60529, RoHS, REACH |
| Warranty | Standard manufacturer warranty (refer to Legrand terms) |
