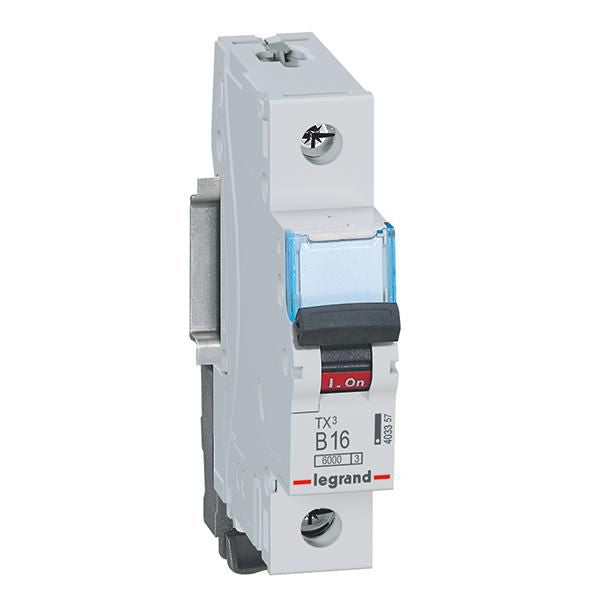

Shop Legrand TX3 MCB 1P 16A Curve B 6000A Circuit Breaker | 403357 In Iraq Best Prices

Single-pole thermal magnetic circuit breaker with 6000A breaking capacity, 16A B-curve protection, and advanced current limiting technology for residential and small commercial electrical installations.

The Legrand TX3 MCB is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits while providing reliable control and isolation of the installation. This single-pole device delivers a breaking capacity of 6000A at 230V with B-curve 16A protection, making it ideal for residential and small commercial applications. The circuit breaker features advanced current limiting technology (Class 3) that minimizes let-through energy during fault conditions, ensuring maximum protection for connected equipment and personnel. This MCB is engineered with a special DIN rail clamp system on the bottom side, allowing independent removal even when the fork busbar supplying the row remains in place. The device is fingerproof (IP20 rated) with protection against solid bodies larger than 12.5mm, and can be supplied by copper cable, prong busbar, or fork busbar connections. The TX3 is compatible with Legrand DX3 auxiliaries and accessories, and features clear on/off indication printed on the handle with red and green backgrounds for easy status identification. With a rated voltage of 230V and impulse withstand voltage of 4kV, this circuit breaker meets IEC 60898-1 standard requirements for household installations. The device includes a label holder for convenient circuit identification and is constructed with halogen-free materials in an environmentally conscious process. Built-in depth of 44mm and width of 17.8mm (1 modular spacing) make it compact and suitable for standard DIN rail installation in residential and small commercial panels.

Key Features

Breaking capacity of 6000A at 230V according to IEC 60898-1 standard for household installations
B-curve tripping characteristic with short-circuit threshold between 48A and 80A (3-5 In range)
Current limiting Class 3 technology minimizing let-through energy during fault conditions
Fingerproof IP20 protection against solid bodies larger than 12.5mm per IEC/EN 60529
Special DIN rail clamp allowing independent removal with fork busbar still in place
Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
Clear on/off status indication with red and green background printing on handle
Label holder for convenient and visible circuit identification
Accepts copper cable, prong busbar, or fork busbar connections
Halogen-free construction with environmentally conscious design process

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Number of Poles	1 pole (single-pole)
Rated Current	16 Amperes
Release Characteristic	B-curve
Breaking Capacity (Icn)	6000A (6 kA) at 230V
Rated Voltage	230V AC
Rated Insulation Voltage (Ui)	500V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Current Limiting Class	Class 3
Voltage Type	AC (Alternating Current)
Frequency Range	50-60 Hz
Degree of Protection (IP)	IP20 (Fingerproof)
Impact Strength Rating (IK)	IK02
Built-in Depth	44 mm
Width	17.8 mm (1 modular spacing)
Height	88 mm
Overall Depth	77.8 mm
Colour	Grey (RAL 7035)
Connection Type	Screwed terminal, Busbar and cable
Mounting Method	DIN rail
Electric Supply Direction	Top or bottom
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	240-415V
Halogen Free	Yes
Additional Equipment Possible	Yes - Compatible with DX3 auxiliaries
Concurrently Switching Neutral	No
Flush-mounted Installation	Yes
Terminal Marking Indication	No
Label Space	Yes - Includes label holder
Standards Compliance	IEC 60898-1, IEC/EN 60529
Manufacturer	Legrand
Product Series	TX³
Reference Number	403357
EAN Code	3414970386304

Order Legrand TX3 MCB 1P 16A Curve B 6000A Circuit Breaker | 403357 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
