Description

Shop Legrand TX3 MCB 3 Pole 16A Circuit Breaker 10kA | 404222 In Iraq Best Prices

Professional-grade thermal magnetic circuit-breaker with 10kA breaking capacity, 3-pole configuration, and C curve protection for reliable overload and short-circuit protection in residential and commercial installations

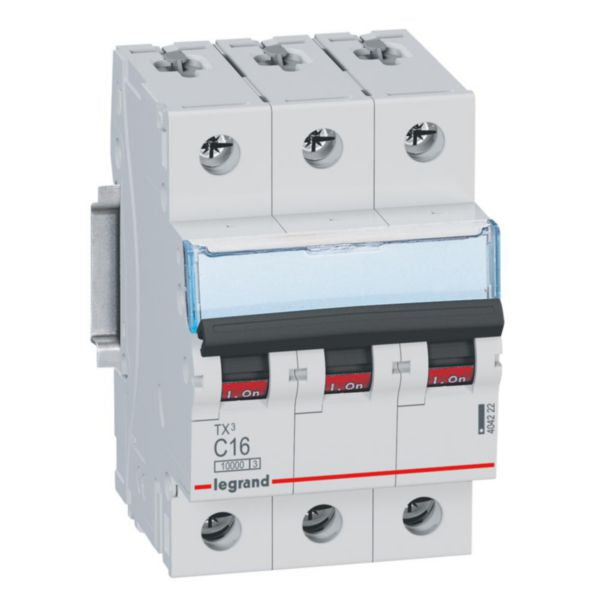

The Legrand TX3 MCB 10000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with an exceptional 10kA breaking capacity at 400V. This 3-pole device features a C curve characteristic that provides optimal protection for residential and small commercial applications. The circuit-breaker can control and isolate the installation effectively, accepting both cable and busbar supply options for flexible installation configurations. This advanced protective device is equipped with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar supplying the row remains in place. The TX3 features fingerproof protection (IP20) against solid bodies larger than 12.5mm and incorporates maximum energy limitation (class 3 according to IEC 60898-1 standard). The device includes a convenient label holder for clear circuit identification and has ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. The TX3 MCB complies with all substance-restriction requirements and has been designed in an environmentally conscious process. It can be equipped with Legrand DX3 auxiliaries and accessories, and supports connection to aluminum cables with the appropriate Legrand DX3 terminal accessory. With its robust construction, comprehensive protection features, and reliable performance, this circuit-breaker is an essential component for modern electrical installations requiring dependable overload and short-circuit protection.

Key Features

10kA breaking capacity at 400V according to IEC 60898-1 standard for household installations
C curve tripping characteristic with short-circuit threshold between 80A and 160A (5-10 In range)
Flexible supply options: copper cable, prong busbar (top/bottom), or fork busbar (bottom side)
Fingerproof protection (IP20) against solid bodies larger than 12.5mm per IEC/EN 60529
Maximum energy limitation class 3 for enhanced protection and reduced let-through energy
Compatible with Legrand DX3 auxiliaries, accessories, and aluminum cable terminals
Special DIN rail clamp allowing independent removal without disturbing busbar supply
Built-in label holder for clear circuit identification and status indication
ON/OFF indication with red/green background printing on handle for easy status recognition
Environmentally conscious design complying with substance-restriction requirements

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit-Breaker (MCB)
Number of Poles	3 poles (3P)
Rated Current	16 Amperes
Rated Voltage	400V AC
Rated Insulation Voltage	500V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity at 400V	10 kA (Icn)
Breaking Capacity at 230V	16 kA (Icn)
Release Characteristic	C Curve
Short-Circuit Tripping Range	80-160A (5-10 In)
Current Limiting Class	Class 3
Frequency	50-60 Hz
Degree of Protection	IP20 (Fingerproof)
Impact Strength Rating	IK02
Width	53.1 mm
Height	88 mm
Depth/Built-in Depth	77.8 mm / 44 mm
Modular Width	3 modules
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	Top or bottom
Mounting Method	DIN rail
Mounting Installation	Flush-mounted installation compatible
Color	Grey (RAL 7035)
Pollution Degree	2
Nominal Voltage Range	240-415V
Storage Temperature Range	-40 to 70°C
Neutral Conductor Switching	No
Additional Equipment Possible	Yes
Halogen Free	Yes
Explosion-Proof	No
Reference Number	404222
EAN Code	3414970394378
Brand	Legrand
Series	TX³

Order Legrand TX3 MCB 3 Pole 16A Circuit Breaker 10kA | 404222 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
