Legrand TX3 single-pole 40A MCB with 6kA breaking capacity, C curve release, IP20 protection, and flexible connection options for reliable electrical circuit protection in residential installations.

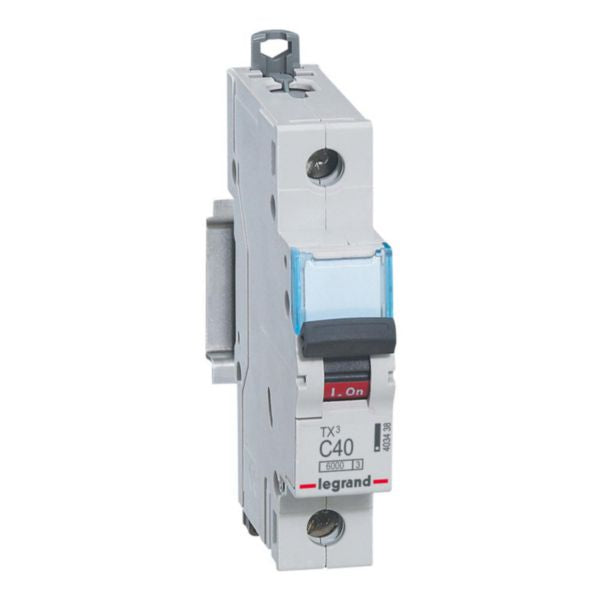

The Legrand TX3 MCB (Miniature Circuit Breaker) is a thermal magnetic circuit-breaker specifically designed to protect wiring installations against overloads and short-circuits. With a rated current of 40A and a 6kA breaking capacity according to IEC 60898-1 standard, this single-pole device features a C curve release characteristic with tripping thresholds between 200A and 400A (5 In to 10 In). The MCB provides IP20 "fingerproof" protection, preventing contact with solid bodies larger than 12.5mm, ensuring safe operation in household and residential installations.
This circuit breaker can be supplied through multiple connection options including flexible copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), offering maximum flexibility for installation requirements. The device features energy limitation class 3 according to IEC 60898-1 standard, providing superior protection against short-circuit damage. The TX3 series is equipped with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar supplying the row remains in place.
The Legrand TX3 MCB is compatible with DX3 auxiliaries and accessories, making it highly adaptable for various electrical system configurations. It can be connected to aluminium cable using Legrand DX3 terminal accessory, and features a label holder for clear circuit identification. The device complies with substance-restriction requirements and has been designed following environmentally conscious manufacturing processes. Operating at 230V rated voltage with 50-60Hz frequency, this MCB is an essential component for reliable electrical protection in modern installations.
Key Features
- 6kA breaking capacity according to IEC 60898-1 standard for household installations
- C curve release characteristic with tripping threshold between 200A and 400A (5 In to 10 In)
- IP20 fingerproof protection prevents contact with solid bodies larger than 12.5mm
- Multiple connection options: flexible copper cable, prong busbar, or fork busbar
- Energy limitation class 3 for superior short-circuit protection
- Compatible with Legrand DX3 auxiliaries and accessories
- Special DIN rail clamp allows independent removal when busbar remains in place
- Label holder for clear circuit identification with ON/OFF indication
- Can connect to aluminium cable using DX3 terminal accessory
- Environmentally conscious design complying with substance-restriction requirements
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Manufacturer | Legrand |
| Series | TX3 |
| Reference Number | 403438 |
| EAN Code | 3414970388407 |
| Number of Poles | 1 (Single Pole) |
| Rated Current | 40 A |
| Rated Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Breaking Capacity | 6 kA at 230V (Icn according to EN 60898) |
| Release Characteristic | C Curve |
| Tripping Threshold | 200A to 400A (5 In to 10 In) |
| Current Limiting Class | 3 |
| Voltage Type | AC |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 |
| Impact Strength | IK02 |
| Built-in Depth | 44 mm |
| Width | 17.8 mm |
| Height | 88 mm |
| Depth | 77.8 mm |
| Width in Modular Spacings | 1 |
| Colour | Grey |
| RAL Number | 7035 |
| Mounting Method | DIN Rail |
| Connection Type | Screwed Terminal, Busbar and Cable |
| Supply Direction | Top or Bottom |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral | No |
| Pollution Degree | 2 |
| Additional Equipment Possible | Yes |
| Storage Temperature Range | -40°C to 70°C |
| Nominal Voltage Range | 240-415 V |
| Halogen Free | Yes |
| Label Space | Yes |
| Explosion-proof | No |
| Standards Compliance | IEC 60898-1, IEC/EN 60529 |
| Warranty | As per Legrand standard warranty terms |
