Professional multifunction time delay relay with 8A output capacity, offering ON/OFF delay, timer, flashing, and totalizer modes for precise circuit control from 0.1 seconds to 100 hours. Compatible with 12-230V AC/DC supply.

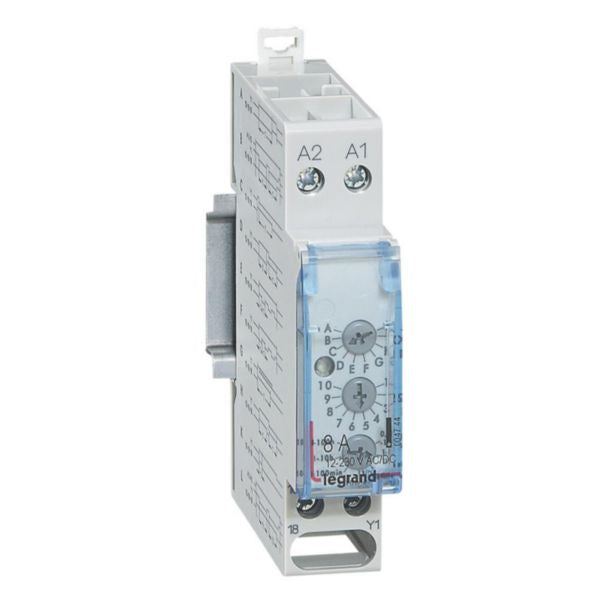

The Legrand Time Delay Relay Multifunction (REF. 004744) is a sophisticated control device designed for professional electrical installations. This advanced relay operates with supply voltages ranging from 12 to 230V AC/DC (50/60 Hz) and delivers an output of 8A at 250V AC with a power factor of 1 per inverter contact. The device is specifically engineered for controlling the switching ON or OFF of circuits including lighting, ventilation, automation, and signalling systems with precise timing from 0.1 seconds to 100 hours.
This single-module relay offers exceptional versatility with multiple operational modes: ON delay, OFF delay, ON/OFF delay, timer (pulse), timer with passing contact, flashing, totalizer on delay, and totalizer delay on power-up. These comprehensive functions make it an ideal solution for complex automation requirements in residential, commercial, and industrial applications. The Lexic series design ensures reliable performance and seamless integration into modern electrical distribution systems.
The relay is manufactured to the highest standards with full compliance to RoHS Directive and REACH regulations, ensuring environmental responsibility and safety. With its compact single-module design and robust construction, this time delay relay provides dependable operation for demanding control applications where precise timing and multiple function capabilities are essential.
Key Features
- Multifunction time delay relay with 8 operational modes including ON delay, OFF delay, ON/OFF delay, timer, flashing, and totalizer functions
- Wide supply voltage range from 12V to 230V AC/DC (50/60 Hz) for flexible installation options
- 8A output capacity at 250V AC with power factor of 1 per inverter contact for reliable circuit control
- Precise timing control from 0.1 seconds to 100 hours enabling diverse automation applications
- Single compact module design for easy integration into distribution panels and control cabinets
- Full RoHS compliance and REACH declaration for environmental safety and regulatory compliance
- Professional-grade construction suitable for lighting, ventilation, automation, and signalling control
- Lexic series design ensuring reliable performance and seamless compatibility with modern electrical systems
Technical Specifications
| Specification |
Value |
| Product Reference | 004744 |
| EAN Code | 4010957047443 |
| Manufacturer | Legrand |
| Series | Lexic |
| Supply Voltage | 12 to 230V AC/DC (50/60 Hz) |
| Output Rating | 8A - 250V AC |
| Power Factor | 1 per inverter contact |
| Number of Modules | 1 |
| Timing Range | 0.1 seconds to 100 hours |
| Operating Modes | ON delay, OFF delay, ON/OFF delay, Timer (pulse), Timer with passing contact, Flashing, Totalizer on delay, Totalizer delay on power-up |
| Application | Lighting, ventilation, automation, signalling control |
| RoHS Compliance | Yes - Full compliance with RoHS Directive |
| REACH Compliance | Yes - Manufacturer REACH Declaration included |
| Installation Type | DIN rail mounted module |
| Category | Control and signalling |
