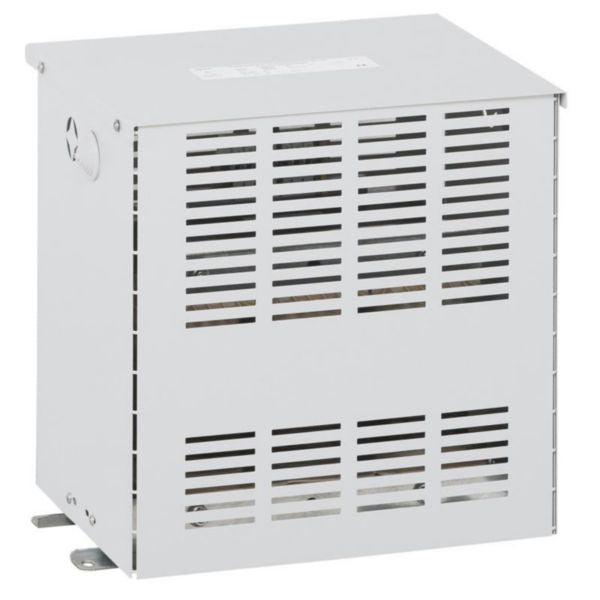

Shop Legrand Three-Phase Isolating Transformer Hospital 8kVA 400V/230V | 42584 In Iraq Best Prices

Professional three-phase isolating transformer for hospitals with 8 kVA output, 400V/230V conversion, temperature monitoring, electrostatic shield, and full IEC 61558-2-15 compliance for maximum safety.

This Legrand three-phase isolating transformer is specifically designed for hospital applications and complies with the stringent requirements of IEC EN 61558-2-15 standard. The transformer features a robust construction with an output capacity of 8 kVA, converting primary voltage of 400V to secondary voltage of 230V. It is equipped with advanced safety features including an electrostatic shield connected to dedicated terminals and a temperature monitoring system with bi-metal strips for connection to control systems such as optical or acoustic alarms. The transformer is built with YY wiring configuration and features IP21 degree of protection with IK08 impact strength rating. It includes flexible cable terminals with 16 mm² for primary and 35 mm² for secondary connections, ensuring secure and reliable installation. The secondary/earth leakage current is limited to 0.5 mA off-load, and the inrush current is controlled to 12 times the peak value of primary current, meeting the highest safety standards required in hospital environments. With dimensions of 470mm width × 410mm height × 340mm depth, this transformer is designed for efficient space utilization in medical facilities. The H-class insulation material provides excellent thermal performance and durability. The terminal marking indication and screwed terminal connections ensure proper identification and secure electrical connections for professional installation and maintenance.

Key Features

Three-phase isolating transformer compliant with IEC EN 61558-2-15 hospital standard
8 kVA output capacity with 400V primary to 230V secondary conversion
Integrated electrostatic shield connected to dedicated terminals for enhanced safety
Temperature monitoring system with bi-metal strips and control system connectivity
Secondary/earth leakage current limited to 0.5 mA off-load with controlled inrush current
IP21 degree of protection with IK08 impact strength rating
H-class insulation material for superior thermal performance and durability
YY wiring configuration for optimal three-phase distribution
Flexible cable terminals: 16 mm² primary and 35 mm² secondary
Screwed terminal connections for secure and professional installation

Technical Specifications

Specification	Value
Product Type	Three-Phase Isolating Transformer
Application	Hospital Medical Facilities
Rated Power Output	8 kVA
Primary Voltage	400V ±10% (Three-phase + Neutral)
Secondary Voltage	230V (Three-phase + Neutral)
Wiring Configuration	YY (Star-Star)
Insulation Class	H (180°C)
Short-Circuit Voltage	2.7%
Secondary/Earth Leakage Current	0.5 mA off-load maximum
Inrush Current Limitation	12 times peak primary current maximum
Degree of Protection (IP)	IP21
Impact Strength Rating (IK)	IK08
Temperature Monitoring	Bi-metal strips with control system connectivity
Electrostatic Shield	Yes, connected to dedicated terminals
Primary Cable Terminal	Flexible cable 16 mm²
Secondary Cable Terminal	Flexible cable 35 mm²
Connection Type	Screwed Terminals
Terminal Marking	Yes, clearly indicated
Width	470 mm
Height	410 mm
Depth	340 mm
Safety Transformer	No
Isolating Transformer	Yes
Energy Saving Transformer	No
Short-Circuit Proof	No
International Standard Compliance	IEC EN 61558-2-15, IEC 61558-2-4
Reference Number	042584
EAN Code	3245060425845
Manufacturer	Legrand

Order Legrand Three-Phase Isolating Transformer Hospital 8kVA 400V/230V | 42584 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
