Shop Legrand Soliroc French Socket Outlet 16A IP55 IK10 | 077831 In Iraq Best Prices
Premium French socket outlet with IK10 impact resistance, IP55 weatherproof rating, 16A capacity, automatic terminals, and chrome metallic finish for indoor and outdoor use.
The Legrand Soliroc French Socket Outlet is a premium-grade electrical outlet designed for both residential and commercial applications requiring enhanced durability and weather resistance. This IK10-rated socket outlet features a robust metal construction with chrome finish and is specifically engineered to meet French electrical standards (2P+E configuration). With an IP55 protection rating, it provides complete protection against dust and water jets from any direction, making it ideal for outdoor installations, bathrooms, kitchens, and other moisture-prone environments.
This socket outlet comes equipped with automatic push-in clamp terminals, eliminating the need for manual screw adjustments and ensuring faster, more reliable installations. The device supports a nominal current of 16A at 250V with 50-60Hz frequency compatibility, providing ample power for standard household and commercial appliances. The integrated hinged lid with enhanced contact protection prevents accidental contact with live terminals, while the loop-through function allows for convenient daisy-chaining of multiple outlets.
The Soliroc outlet features a sleek chrome metallic finish with a matte surface treatment, providing both aesthetic appeal and corrosion resistance. Built to withstand extreme mechanical stress with its IK10 impact strength rating, this outlet is suitable for harsh environments and heavy-duty applications. The halogen-free construction ensures environmental compliance and safety, while the operating temperature range of -5°C to 40°C guarantees reliable performance across diverse climate conditions. Each unit includes comprehensive technical documentation and comes with a reference number 077831 for easy identification and ordering.
Key Features
- IK10 impact strength rating for extreme durability and harsh environment resistance

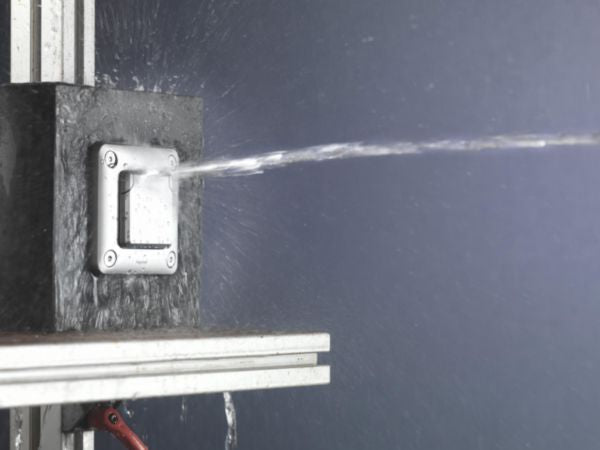

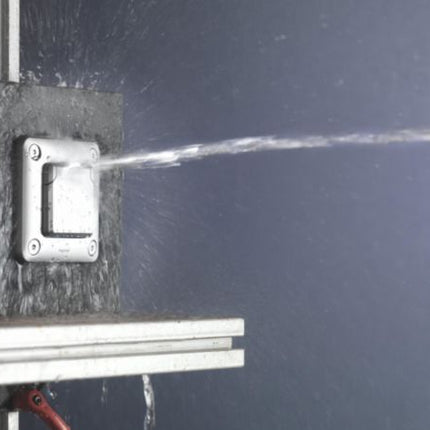

- IP55 protection rating providing complete dust and water jet protection from any direction
- French standard 2P+E configuration compliant with European electrical standards
- Automatic push-in clamp terminals for fast and reliable installation without manual adjustments
- Chrome metallic finish with matte surface treatment for corrosion resistance and aesthetic appeal
- 16A nominal current at 250V with 50-60Hz frequency compatibility
- Halogen-free construction ensuring environmental compliance and enhanced safety

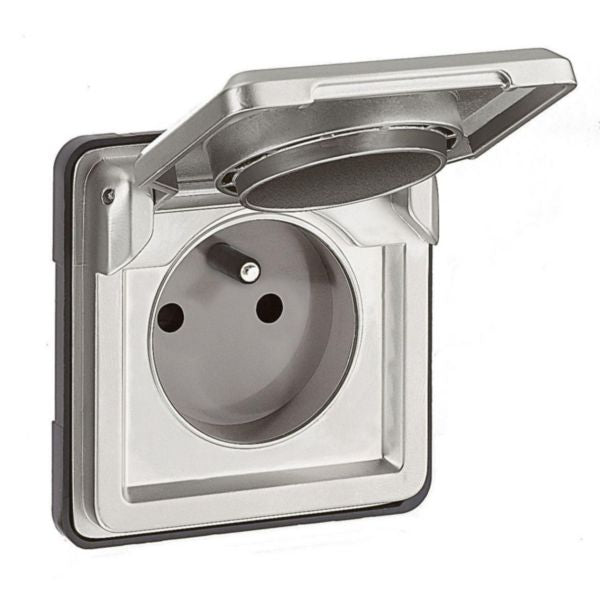

- Hinged lid with enhanced contact protection preventing accidental terminal contact
- Loop-through function enabling convenient daisy-chaining of multiple outlets
- Operating temperature range -5°C to 40°C for reliable performance in diverse climates
Technical Specifications
| Specification |
Value |
| Product Reference | 077831 |
| EAN Code | 3245060778316 |
| Brand | Legrand |
| Product Line | Soliroc |
| Socket Type | French Standard 2P+E |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Protection Rating (IP) | IP55 |
| Impact Strength Rating (IK) | IK10 |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 |
| Connection Type | Push-in clamp (automatic terminals) |
| Protective Contact | Round |
| Number of Active Contacts | 2 |
| Material | Metal |
| Color | Chrome |
| Surface Finish | Matt metallic |
| Halogen Free | Yes |
| Device Width | 70.4 mm |
| Device Height | 70.4 mm |
| Device Depth | 48.7 mm |
| Built-in Depth | 36 mm |
| Operating Temperature Range | -5°C to 40°C |
| Storage Temperature Range | -10°C to 70°C |
| Voltage Type | AC |
| Cable Section | 2.5-2.5 mm² |
| Cable Nature | Rigid |
| Mounting Method | Module frame with screw fastening |
| Hinged Lid | Yes |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| Assembly Arrangement | Basic element with central cover plate |
| Concurrently Switching Neutral Conductor | No |
| USB Ports | None |
| Switchable Socket Outlets | 0 |
| Function Lighting | No |
| Overvoltage Protection | No |
| Power Delivery | No |
Order Legrand Soliroc French Socket Outlet 16A IP55 IK10 | 077831 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
