Premium 6A shuttered electrical socket with protective contact, gold finish, halogen-free construction, and loop-through functionality for safe residential and commercial power distribution.

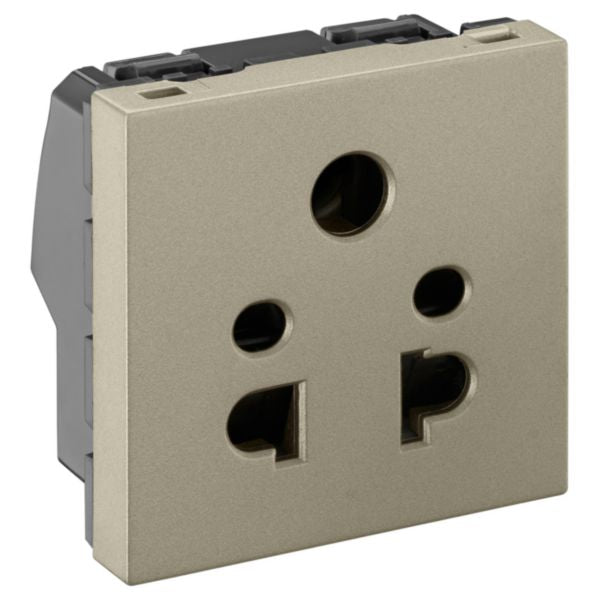

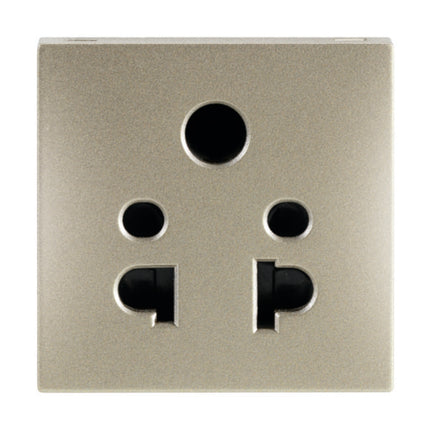

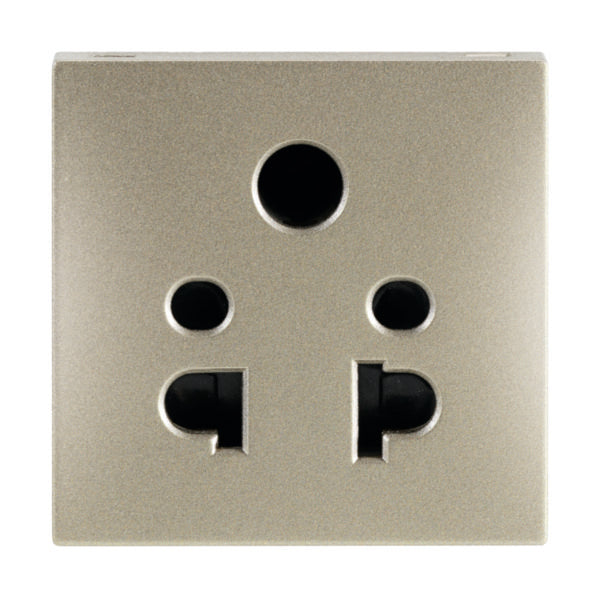

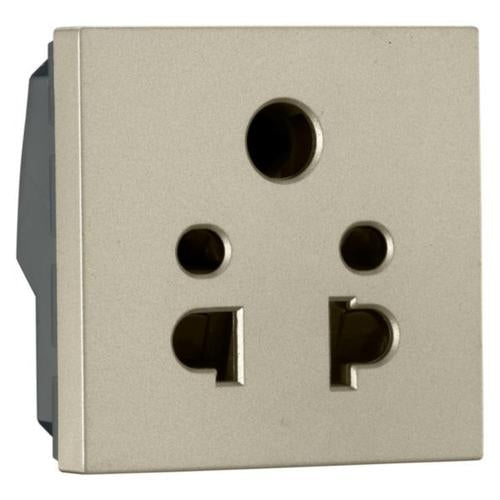

The Legrand Socket Shuttered 6A 2/3 PIN is a premium electrical outlet designed for safe and reliable power distribution in residential and commercial applications. This shuttered socket features protective contact technology with round protective contacts, ensuring enhanced safety by preventing accidental contact with live conductors. The gold-colored finish provides an elegant aesthetic while maintaining professional-grade functionality. With a nominal current rating of 6A at 230V and frequency compatibility of 50-60Hz, this socket is suitable for a wide range of electrical devices and appliances.
This socket is constructed from halogen-free thermoplastic material, making it environmentally friendly and compliant with modern safety standards. The device features a loop-through function, allowing for convenient series installation in electrical circuits. The mounting method utilizes a module frame system with snap mounting engagement, enabling quick and secure installation. With an IP40 protection degree and IK04 impact strength rating, this socket offers reliable protection against dust and minor mechanical impacts, making it ideal for both indoor residential and light commercial environments.
The socket features screwed terminal connections with a terminal capacity of 0.75-2.5 mm², accommodating both flexible and rigid cable connections. Operating temperature range of -5 to 50°C ensures reliable performance in various climate conditions, while the storage temperature range of -10 to 70°C provides flexibility in handling and warehousing. The compact dimensions of 45mm width and height with 50mm depth allow for easy integration into standard electrical installations. This product meets international electrical standards and is backed by Legrand's reputation for quality and reliability.
Key Features
- Protective Round Contact Technology - Enhanced safety with round protective contacts preventing accidental conductor contact
- Halogen-Free Thermoplastic Material - Environmentally friendly and compliant with modern safety standards
- Loop-Through Function - Convenient series installation capability for flexible circuit configuration
- Snap Mounting System - Quick and secure module frame installation with engagement fastening
- Wide Temperature Range - Operating from -5 to 50°C and storage from -10 to 70°C for reliable performance
- IP40 Protection Rating - Dust protection suitable for indoor residential and light commercial environments
- Flexible Terminal Connections - Screwed terminals accommodating 0.75-2.5 mm² flexible or rigid cables
- Premium Gold Finish - Elegant aesthetic design with professional-grade functionality
Technical Specifications
| Specification |
Value |
| Product Model | Other Standard |
| Nominal Current | 6 A |
| Nominal Voltage | 230 V |
| Frequency Range | 50-60 Hz |
| Number of Active Contacts (Round) | 4 |
| Number of Active Contacts (Flat) | 2 |
| Protective Contact Type | Round |
| Assembly Type | Basic element with central cover plate |
| Number of Modules | 2 |
| Connection Type | Screwed terminal |
| Terminal Capacity | 0.75-2.5 mm² |
| Cable Type | Flexible or rigid |
| Mounting Method | Module frame with snap mounting |
| Material | Halogen-free thermoplastic |
| Colour | Gold |
| Surface Finishing | Matt lacquered |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 50 mm |
| IP Protection Degree | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5 to 50 °C |
| Storage Temperature Range | -10 to 70 °C |
| Voltage Type | AC |
| Loop Through Function | Yes |
| Hinged Lid | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Antimicrobial Treatment | No |
| SKU | 574833 |
| EAN Code | 3414971719149 |
| Manufacturer | Legrand |
