Shop Legrand Socket Outlet T13 10A/250V Magnesium Swiss | 571870 In Iraq Best Prices
Premium Swiss-standard socket outlet with 10A/250V rating, halogen-free materials, and modern magnesium finish for reliable residential and commercial power distribution.

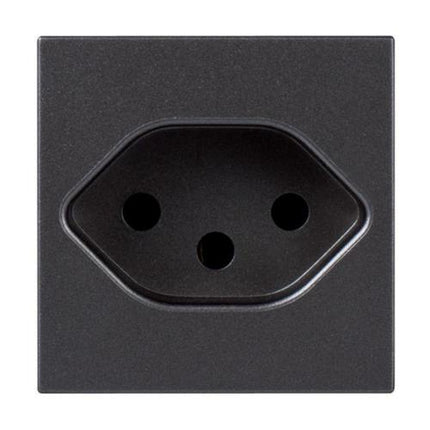

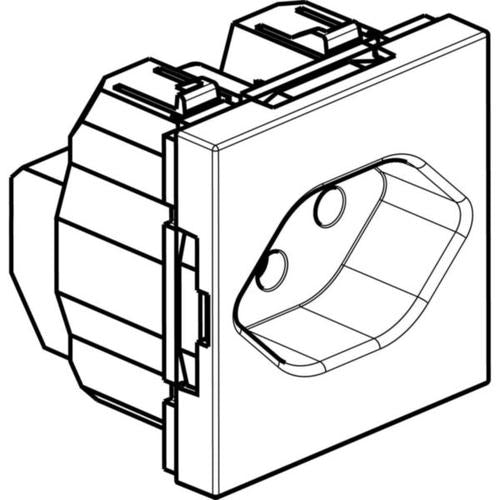

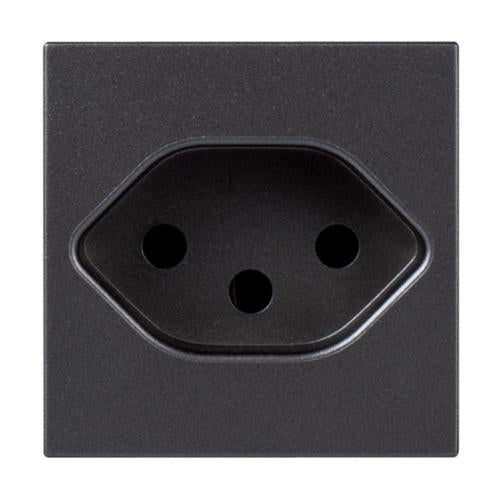

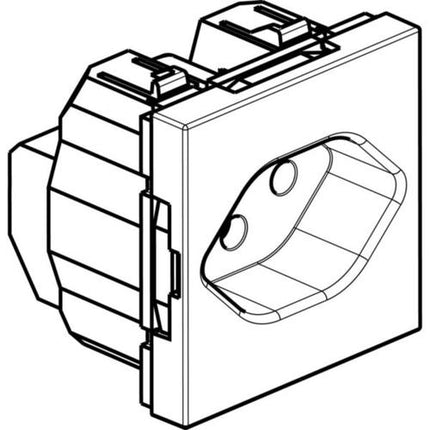

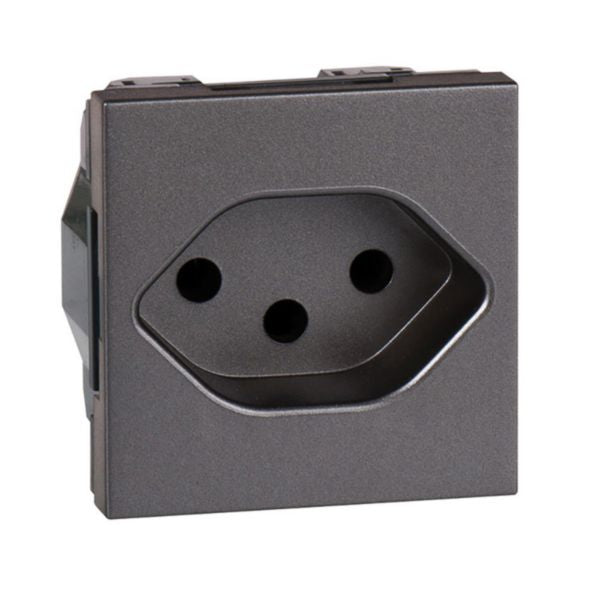

The Legrand Socket Outlet T13 10A/250V in Magnesium finish is a premium Swiss-standard electrical socket designed for modern residential and commercial applications. This socket outlet features a robust construction with thermoplastic material and provides reliable power distribution with a nominal current of 10A and voltage rating of 250V. The device is engineered to meet Swiss norm type 13 specifications, ensuring compatibility with Swiss electrical standards and safety requirements. With its sleek aluminium magnesium finish, this socket outlet combines aesthetic appeal with functional performance, making it an ideal choice for contemporary interior designs.
This socket outlet is equipped with advanced safety features including enhanced contact protection and halogen-free materials, ensuring environmental compliance and user safety. The push-in clamp connection type allows for easy and secure wire installation, while the snap mounting method enables quick installation on module frames. The socket features a single round protective contact and operates at a frequency range of 50-60 Hz, making it suitable for both European and international electrical systems. Its compact dimensions of 45mm x 45mm x 35.2mm depth make it perfect for space-constrained installations.
The product includes a loop-through function, allowing for daisy-chain installation in multi-socket configurations. With an IP40 degree of protection and IK04 impact strength rating, this socket outlet is durable and suitable for standard indoor environments. The operating temperature range of -5°C to 50°C ensures reliable performance across various climate conditions. This Legrand socket outlet comes with comprehensive technical documentation and is certified for RoHS compliance, making it an environmentally responsible choice for modern electrical installations.
Key Features
- Swiss norm type 13 standard compliance for European electrical systems
- 10A/250V nominal rating with 50-60 Hz frequency support
- Halogen-free thermoplastic material for environmental safety
- Push-in clamp connection for easy and secure wire installation
- IP40 protection degree and IK04 impact strength rating
- Loop-through function for daisy-chain multi-socket installations
- Compact 45mm x 45mm dimensions suitable for space-constrained areas
- Operating temperature range -5°C to 50°C for diverse climates
- RoHS compliant certification for environmental responsibility
- Snap mounting method for quick installation on module frames
Technical Specifications
| Specification |
Value |
| Product Type | Socket Outlet |
| Standard | Swiss norm type 13 |
| Nominal Current | 10 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Protective Contact Type | Round |
| Connection Type | Push-in clamp |
| Material | Thermoplastic |
| Color | Aluminium magnesium |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.2 mm |
| IP Rating | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -10°C to 70°C |
| Cable Section | 2.5 mm² |
| Number of Modules | 2 |
| Mounting Method | Module frame with snap mounting |
| Halogen Free | Yes |
| Surface Protection | Lacquered |
| Surface Finishing | Matt |
| Loop Through Function | Yes |
| Voltage Type | AC |
| SKU | 571870 |
| EAN Code | 3245065718706 |
Order Legrand Socket Outlet T13 10A/250V Magnesium Swiss | 571870 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
