Shop Legrand Socket Outlet 2XT13 10A 250V White Swiss | 571827 In Iraq Best Prices
Premium Legrand 2XT13 dual socket outlet with 10A/250V rating, Swiss norm type 13, white finish, IP40 protection, and push-in clamp connections for reliable residential and commercial electrical installations.

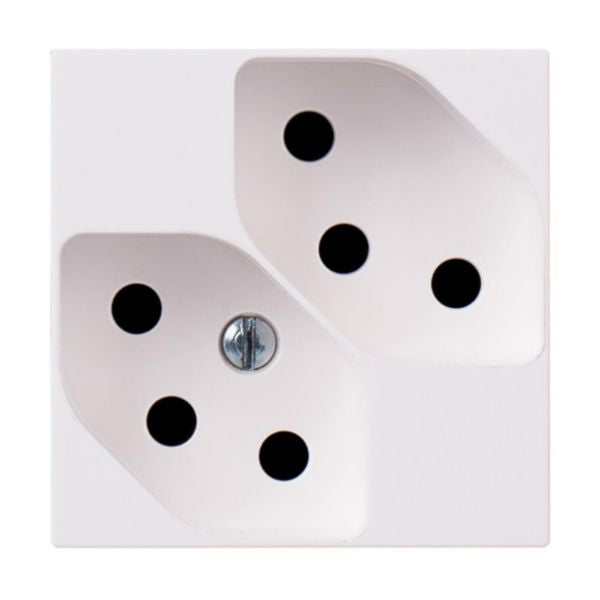

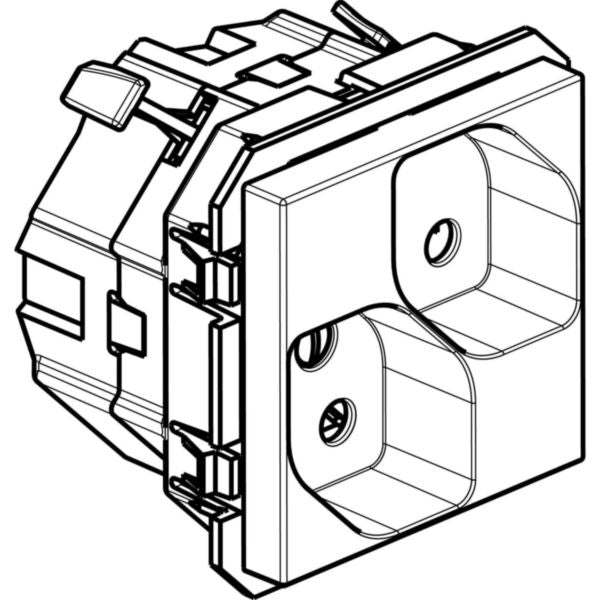

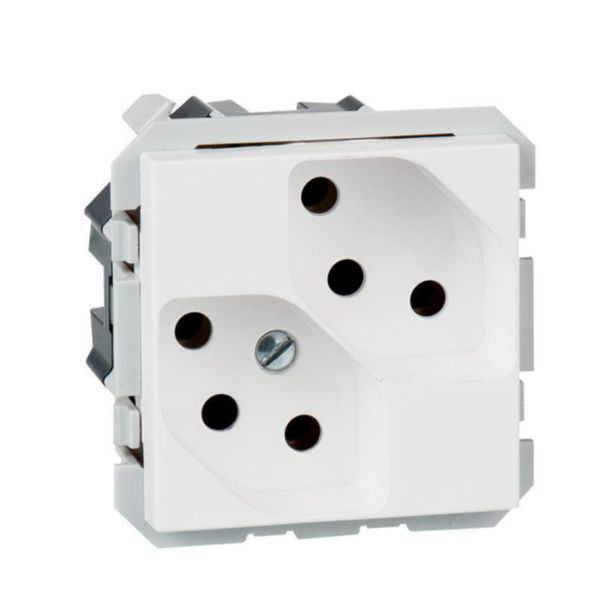

The Legrand Socket Outlet 2XT13 is a premium dual-socket electrical outlet designed to Swiss norm type 13 specifications, providing reliable power distribution for residential and commercial applications. This white plastic socket features two active round protective contacts rated at 10A/250V, making it suitable for standard European electrical installations. The device incorporates advanced push-in clamp connection technology, ensuring secure and stable electrical connections while maintaining compliance with international safety standards including IP40 protection and IK04 impact resistance.
This socket outlet is engineered with thermoplastic material construction and halogen-free composition, making it environmentally friendly and safe for use in sensitive environments. The module frame mounting system allows for flexible installation options, while the loop-through function enables convenient daisy-chaining of multiple outlets. With dimensions of 45mm width and height, and a 35.2mm depth, it seamlessly integrates into standard electrical installation frameworks. The device operates reliably across 50-60 Hz frequencies and maintains performance in temperature ranges from -5°C to 50°C during operation.
Designed for professional installation by certified electricians, this Legrand socket outlet meets RoHS compliance requirements and carries certification from recognized testing authorities. The white RAL 9003 finish provides a clean, modern aesthetic that complements contemporary interior designs. Reference number 571827 with EAN 3245065718270 ensures proper identification and ordering.
Key Features
- Swiss Norm Type 13 dual socket configuration with two active round protective contacts
- 10A/250V rated capacity suitable for standard European electrical applications
- Advanced push-in clamp connection technology for secure electrical connections
- Halogen-free thermoplastic construction ensuring environmental safety and compliance
- IP40 protection rating and IK04 impact resistance for enhanced durability
- Loop-through function enabling convenient daisy-chaining of multiple outlets
- Module frame mounting system providing flexible installation options
- Operating temperature range of -5°C to 50°C with 50-60 Hz frequency compatibility
- RoHS compliance and international safety certifications
- Clean white RAL 9003 finish complementing modern interior designs
Technical Specifications
| Specification |
Value |
| Product Type | Socket Outlet - Dual Socket |
| Socket Standard | Swiss Norm Type 13 |
| Number of Sockets | 2 active round protective contacts |
| Nominal Current | 10 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Push-in clamp |
| Cable Section | 2.5-2.5 mm² |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Color | White |
| RAL Number | 9003 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 35.2 mm |
| Built-in Depth | 35.2 mm |
| Protection Degree (IP) | IP40 |
| Impact Strength (IK) | IK04 |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -10°C to +70°C |
| Voltage Type | AC |
| Mounting Method | Module frame |
| Type of Fastening | Snap mounting (engagement) |
| With Loop Through Function | Yes |
| With On/Off Switch | No |
| Protective Contact | Round |
| Assembly Arrangement | Basic element with central cover plate |
| Luminous Signal | No |
| USB Ports | None |
| Switchable Outlets | 0 |
| Number of Phases | 1 |
| Enhanced Contact Protection | No |
| Lockable | No |
| Eject-mechanism | No |
| Overvoltage Protection | No |
| Fault Current Protection | No |
| Power Delivery | No |
| RoHS Compliant | Yes |
| Reference Number | 571827 |
| EAN Code | 3245065718270 |
| Manufacturer | Legrand |
