Professional single-phase safety transformer with 1000VA capacity, converting 230/400V primary to 12/24V secondary. Features Type B insulation, flexible cable terminals, and compact industrial design for reliable low-voltage power distribution.

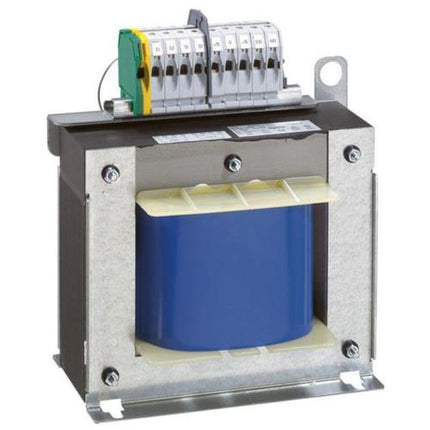

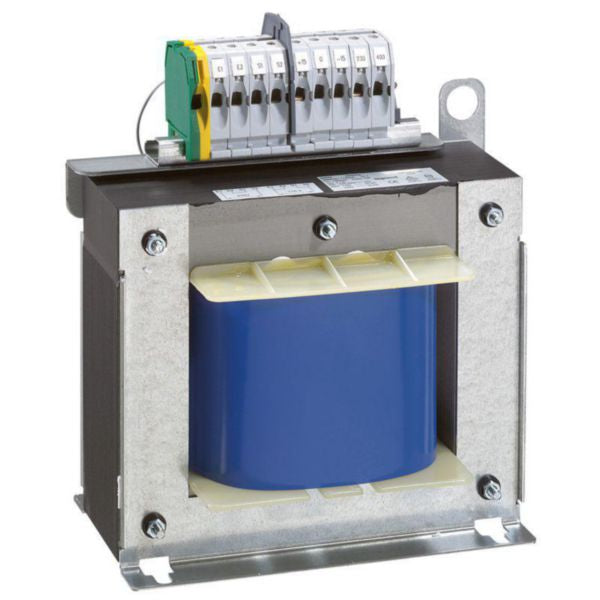

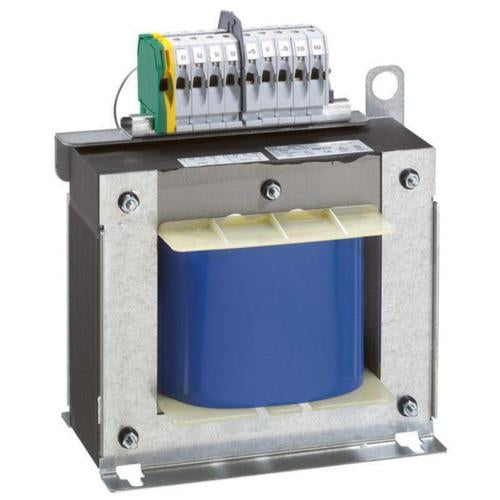

The Legrand Transformer Safety Equipment is a professional-grade single-phase transformer designed for safe low-voltage power distribution in industrial and commercial applications. With a rated apparent power of 1000 VA, this transformer provides reliable conversion from primary voltages of 230V or 400V to secondary voltages of 12V or 24V, making it ideal for safety equipment, control systems, and low-voltage applications requiring isolation and protection.
This safety transformer features robust construction with comprehensive protection characteristics including IP00 degree of protection and Type B insulation material according to IEC 85 standards. The transformer incorporates flexible cable terminals capable of accommodating primary conductors from 0.25 to 6 mm² and secondary conductors from 4 to 35 mm², providing excellent versatility for various installation configurations. The compact dimensions (220mm width × 222mm height × 170mm depth) make it suitable for space-constrained installations while maintaining industrial-grade performance.
Built as a certified safety transformer, this unit is not short-circuit-proof but features a relative short circuit voltage of 2.38%, ensuring stable operation under various load conditions. The transformer is designed for mounting in distribution systems and offers excellent compatibility with modern electrical installations. With its comprehensive technical documentation and compliance with RoHS directives, this transformer represents a reliable solution for applications requiring safe, isolated low-voltage power distribution.
Key Features
- Certified safety transformer with comprehensive low-voltage protection
- Dual primary voltage options (230V and 400V) with dual secondary outputs (12V and 24V)
- 1000VA rated apparent power for reliable industrial applications
- Flexible cable terminals accommodating 0.25-6mm² primary and 4-35mm² secondary conductors
- Type B insulation material compliant with IEC 85 international standards
- Compact dimensions (220×222×170mm) suitable for space-constrained installations
- IP00 degree of protection for standard indoor environments
- Low relative short circuit voltage (2.38%) ensuring stable operation
- RoHS compliant with full regulatory documentation
- Professional-grade construction for industrial and commercial use
Technical Specifications
| Specification |
Value |
| Product Type | Single-Phase Safety Transformer |
| Rated Apparent Power | 1000 VA |
| Primary Voltage 1 | 230V (230-230V range) |
| Primary Voltage 2 | 400V (400-400V range) |
| Secondary Voltage 1 | 12V (12-12V range) |
| Secondary Voltage 2 | 24V (24-24V range) |
| Insulation Material Type | Type B according to IEC 85 |
| Primary Cable Terminal Capacity | 0.25 to 6 mm² |
| Secondary Cable Terminal Capacity | 4 to 35 mm² |
| Width | 220 mm |
| Height | 222 mm |
| Depth | 170 mm |
| Degree of Protection | IP00 |
| Relative Short Circuit Voltage | 2.383372494% |
| Short-Circuit-Proof | No |
| Ring Core | No |
| Suitable for PCB Mounting | No |
| Suitable for Distribution Board | No |
| Built as Safety Transformer | Yes |
| Built as Isolating Transformer | No |
| Built as Energy Saving Transformer | No |
| SKU/Reference | 042849 |
| EAN Code | 3245060428495 |
| Manufacturer | Legrand |
| Regulatory Compliance | RoHS Directive Compliant |
