Shop Legrand Single-Phase Isolation Transformer 63 VA 230/400V | 42510 In Iraq Best Prices
Professional-grade single-phase isolation transformer with 63 VA capacity, dual voltage inputs (230/400V), and dual outputs (115/230V). Features IP55 protection, RoHS compliance, and flexible cable terminals for secure installation.

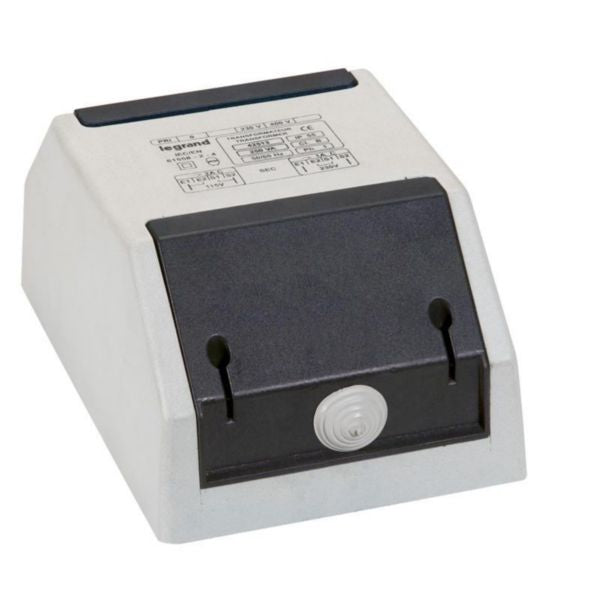

This Legrand single-phase isolation transformer (Model 042510) is specifically designed for safety-critical applications requiring electrical isolation and protection. With a rated power of 63 VA, this transformer provides reliable voltage conversion from primary inputs of 230V or 400V to secondary outputs of 115V or 230V. The transformer features robust construction with IP55 degree of protection, making it suitable for various industrial and commercial environments. It incorporates flexible cable terminals with 4 mm² cross-section on both primary and secondary sides, ensuring secure and reliable electrical connections.
The transformer is built as an isolating transformer according to international standards, providing essential galvanic isolation between primary and secondary circuits. This design ensures enhanced safety and protection against electrical faults and surges. With a relative short circuit voltage of 9.8%, the transformer maintains stable performance under varying load conditions. The compact dimensions of 182 mm (width) × 92 mm (height) × 112 mm (depth) allow for flexible installation in space-constrained environments. Type B insulation material according to IEC 85 standards ensures durability and long-term reliability.
The transformer is manufactured by Legrand, a globally recognized leader in electrical and digital building infrastructure. This product is RoHS compliant and meets all relevant European and international safety standards. It is ideal for applications requiring voltage conversion, circuit isolation, and electrical safety protection in residential, commercial, and light industrial settings.
Key Features
- Built as isolating transformer for enhanced electrical safety and galvanic isolation between primary and secondary circuits
- Dual primary voltage inputs (230V and 400V) with dual secondary outputs (115V and 230V) for flexible voltage conversion
- 63 VA rated apparent power with 9.8% relative short circuit voltage for stable performance under load
- IP55 degree of protection ensuring reliability in various industrial and commercial environments
- Type B insulation material per IEC 85 standards with RoHS compliance and international safety certifications
Technical Specifications
| Specification |
Value |
| Manufacturer | Legrand |
| Model/Reference | 042510 |
| Product Type | Single-Phase Isolation Transformer |
| Rated Apparent Power | 63 VA |
| Primary Voltage Options | 230V or 400V |
| Secondary Voltage Options | 115V or 230V |
| Relative Short Circuit Voltage | 9.8% |
| Primary Terminal Flexible Cable Cross Section | 4 mm² |
| Secondary Terminal Flexible Cable Cross Section | 4 mm² |
| Insulation Material Type | Type B (IEC 85) |
| Degree of Protection | IP55 |
| Width | 182 mm |
| Height | 92 mm |
| Depth | 112 mm |
| Safety Transformer | No |
| Isolating Transformer | Yes |
| Energy Saving Transformer | No |
| Short-Circuit-Proof | No |
| Ring Core | No |
| Suitable for PCB Mounting | No |
| Suitable for Distribution Board | No |
| EAN Code | 3245060425104 |
| Regulatory Compliance | RoHS Directive, IEC 85 Standards |
Order Legrand Single-Phase Isolation Transformer 63 VA 230/400V | 42510 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
