Shop Legrand Single-Phase Isolating Transformer Hospital 2.5kVA 230V | 42591 In Iraq Best Prices

Hospital-grade single-phase isolating transformer with 2.5kVA output, dual temperature monitoring, and advanced safety features compliant with IEC EN 61558-2-15 standard for critical medical applications.

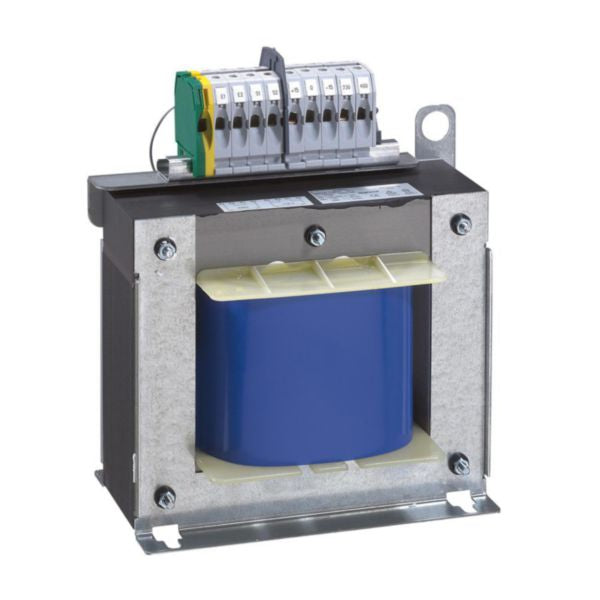

This Legrand isolating transformer is specifically designed for hospital applications, conforming to the stringent requirements of IEC EN 61558-2-15 standard. The transformer features advanced safety specifications including a secondary/earth leakage current limited to 0.5 mA off-load and inrush current restricted to 12 times the peak value of primary current. It is equipped with an electrostatic shield connected to a dedicated terminal, ensuring maximum protection and safety for sensitive medical equipment. The transformer is furnished with dual temperature monitoring systems comprising both bi-metal strips and a thermocouple PT 100 sensor, making it fully compatible with any medical control system. With an IP 00 protection rating and a 2.5 kVA output capacity, this single-phase unit operates with primary and secondary voltages of 230V. The flexible cable terminals accommodate 16 mm² cross-sections on both primary and secondary sides, providing robust electrical connections suitable for demanding hospital environments. This isolating transformer represents the highest standards in electrical safety and reliability for medical facility applications, offering protection against electrical hazards while maintaining consistent power delivery to critical hospital equipment. The comprehensive technical specifications and compliance certifications ensure peace of mind for healthcare facility managers and engineers.

Key Features

Dual temperature monitoring systems with bi-metal strips and PT 100 thermocouple for comprehensive thermal protection
Secondary/earth leakage current limited to 0.5 mA off-load for enhanced electrical safety
Inrush current restricted to 12 times peak primary current value for equipment protection
Electrostatic shield with dedicated terminal connection for noise reduction and EMI protection
Full compliance with IEC EN 61558-2-15 hospital safety standard for medical applications

Technical Specifications

Specification	Value
Product Type	Single-Phase Isolating Transformer
Primary Voltage	230V AC
Secondary Voltage	230V AC with centre tap
Rated Apparent Power	2.5 kVA
Degree of Protection	IP 00
Width	300 mm
Height	292 mm
Depth	171 mm
Primary Terminal Cable	Flexible cable 16 mm²
Secondary Terminal Cable	Flexible cable 16 mm²
Type of Insulation Material	Class B (IEC 85)
Relative Short Circuit Voltage	3.1%
Short-Circuit-Proof	No
Ring Core	No
Secondary/Earth Leakage Current	0.5 mA off-load
Inrush Current	Limited to 12 times peak primary current
Temperature Monitoring	Bi-metal strips and thermocouple PT 100
Compliance Standard	IEC EN 61558-2-15
Application	Hospital medical equipment
Manufacturer	Legrand

Order Legrand Single-Phase Isolating Transformer Hospital 2.5kVA 230V | 42591 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
