Professional single-phase control and isolation transformer with 460V primary, 115/230V secondary outputs, 2500 VA capacity, screw terminals, and full IEC/UL/CSA compliance for industrial applications.

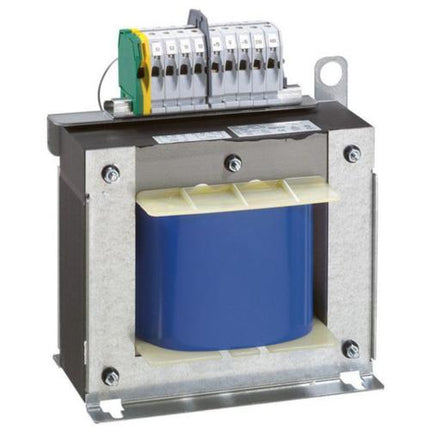

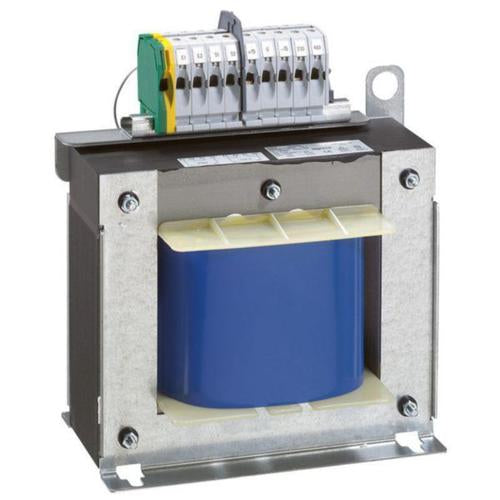

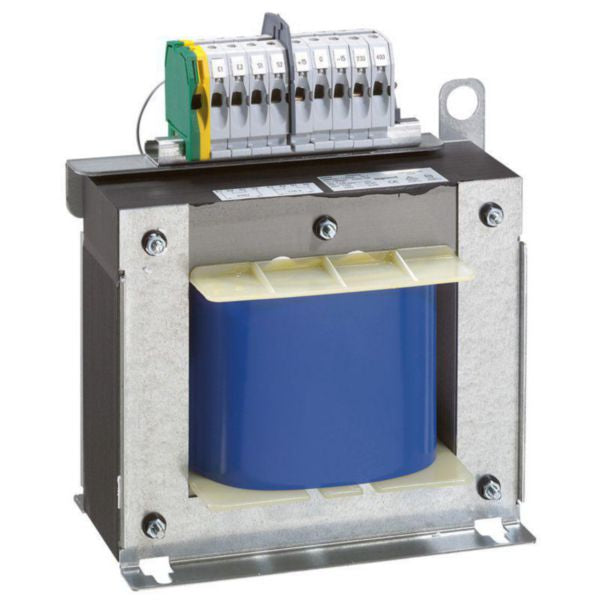

The Legrand Control and Signal Transformer model 044290 is a professional-grade single-phase isolation transformer designed for control, safety, and circuit isolation applications. This transformer features a primary voltage of 460V and dual secondary outputs of 115V and 230V, with a rated apparent power of 2500 VA. Built to IEC EN 61558-2-2, 2-4, and 2-6 standards, as well as UL506 and CSA C22-2 No. 66 specifications, this transformer ensures reliable performance in demanding industrial and commercial environments.
The transformer comes equipped with screw terminal connections and includes two coupling strips for secure 0V secondary/earth connections. With an instantaneous admissible power of 7100 VA at cos φ = 0.5, this unit provides robust power handling capabilities. The device features interference filtering (except for specific catalog numbers), active parts protection by cover up to 1000 VA, and meets building equipment standards EN 61131-2, EN 60204-1, and EN 60439-1.
Designed with precision engineering, this transformer offers a relative short-circuit voltage of 1.66% and operates with Type B insulation material according to IEC 85. The compact dimensions (300mm width × 292mm height × 171mm depth) and IP XXA degree of protection make it suitable for various installation environments. Terminal marking indication is included for ease of identification and installation.
Key Features
- Dual secondary voltage outputs (115V and 230V) for flexible application compatibility
- Screw terminal connections with two coupling strips for secure 0V secondary/earth connections
- IEC EN 61558-2-2, 2-4, 2-6, UL506, and CSA C22-2 No. 66 certified
- Type B insulation material with 1.66% relative short-circuit voltage for safety
- Interference filtering and active parts protection up to 1000 VA with IP XXA protection degree
Technical Specifications
| Specification |
Value |
| Product Type | Control and Signal Transformer - Single Phase |
| Primary Voltage | 460V ± 20V AC (also compatible with 440V and 480V) |
| Secondary Voltage | 115V and 230V AC dual output |
| Rated Apparent Power | 2500 VA (IEC/CSA), 1300 VA (UL) |
| Instantaneous Admissible Power | 7100 VA at cos φ = 0.5 |
| Insulation Material Type | Type B according to IEC 85 |
| Relative Short-Circuit Voltage | 1.66% |
| Connection Type | Screw terminal with coupling strips |
| Dimensions (W × H × D) | 300mm × 292mm × 171mm |
| Degree of Protection | IP XXA over 400 VA |
| Impact Strength Rating | IK04 |
| Voltage Type | AC |
| Ring Core | No |
| Short-Circuit-Proof | No |
| Safety Transformer | No |
| Isolating Transformer | Yes |
| Energy Saving Transformer | No |
| Terminal Marking Indication | Yes |
| PCB Mounting Suitable | No |
| Distribution Board Suitable | No |
| Reference Number | 044290 |
| EAN Code | 3245060442903 |
| Manufacturer | Legrand |
| Standards Compliance | IEC EN 61558-2-2, IEC EN 61558-2-4, IEC EN 61558-2-6, UL506, CSA C22-2 No. 66, EN 61131-2, EN 60204-1, EN 60439-1 |
| Features | Interference filtering, active parts protection by cover, coupling strips included, terminal marking |
