Description

Shop Legrand Safety Transformer 230V 12V 100VA Single Phase | 42761 In Iraq Best Prices

Professional single-phase safety transformer with 230V to 12V conversion, 100VA power rating, IP55 protection, and full compliance with IEC EN 61558-2-6 safety standards for reliable low-voltage applications.

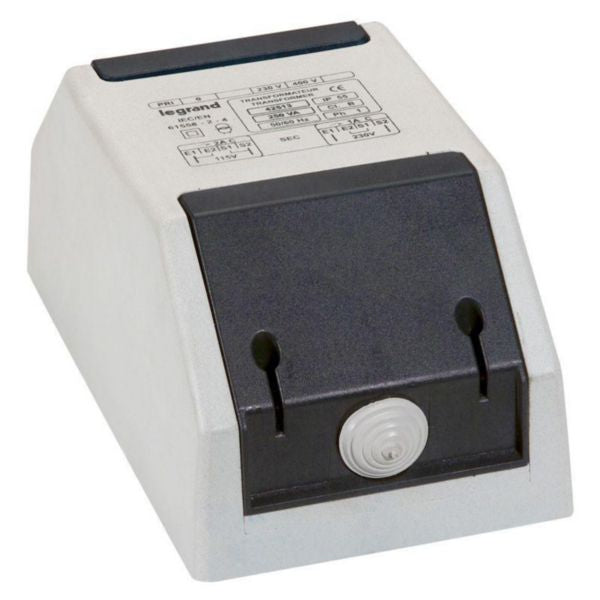

The Legrand Safety Transformer 230V/12V 100VA is a professional-grade single-phase safety transformer designed for low-voltage applications requiring enhanced electrical safety and isolation. This transformer conforms to international safety standards IEC EN 61558-2-6 and provides reliable step-down voltage conversion from 230V AC primary to 12V AC secondary output. With a rated apparent power of 100 VA, it is ideal for control circuits, lighting systems, and other low-voltage equipment in residential and commercial installations. This safety transformer features IP55 degree of protection, making it suitable for various environmental conditions. The unit is constructed as a Class II transformer with Type B insulation material, ensuring superior safety and durability. It includes flexible cable terminals with 4mm² cross-section on both primary and secondary sides, facilitating easy installation and connection. The transformer incorporates appropriate fuse protection with gG 10 x 38 fuse cartridges and fuse carrier (Cat. No. 0 058 08) for optimal overcurrent protection and compliance with safety regulations. The compact dimensions (182mm width × 92mm height × 112mm depth) and robust construction make this transformer suitable for mounting in distribution boards and electrical enclosures. With a relative short-circuit voltage of 9.7%, the transformer provides stable voltage regulation and protection against short-circuit conditions. This Legrand product is manufactured to the highest quality standards and is backed by comprehensive technical documentation and compliance certifications including RoHS compliance.

Key Features

Safety transformer compliant with IEC EN 61558-2-6 international safety standards
230V primary to 12V secondary voltage conversion with 100VA rated power
IP55 degree of protection for enhanced durability in various environments
Class II construction with Type B insulation material for superior safety
Flexible 4mm² cable terminals on both primary and secondary sides for easy installation
Integrated fuse protection with gG 10 x 38 cartridge fuses for overcurrent safety
Compact dimensions (182x92x112mm) suitable for distribution board mounting
9.7% relative short-circuit voltage for stable voltage regulation
RoHS compliant and manufactured to highest quality standards
Comprehensive technical documentation and CAD specifications available

Technical Specifications

Specification	Value
Product Type	Single-Phase Safety Transformer
Primary Voltage	230V AC
Secondary Voltage	12V AC
Rated Apparent Power	100 VA
Insulation Class	Class II
Insulation Material Type	Type B
Degree of Protection	IP55
Primary Cable Cross-Section	4 mm²
Secondary Cable Cross-Section	4 mm²
Relative Short-Circuit Voltage	9.7%
Width	182 mm
Height	92 mm
Depth	112 mm
Fuse Protection Type	gG 10 x 38 cartridge fuses
Fuse Carrier Reference	Cat. No. 0 058 08
Short-Circuit Proof	No
Ring Core	No
PCB Mounting Suitable	No
Distribution Board Mounting	No
Safety Standard Compliance	IEC EN 61558-2-6
Regulatory Compliance	RoHS Directive
Manufacturer	Legrand
Product Reference	042761
EAN Code	3245060427610

Order Legrand Safety Transformer 230V 12V 100VA Single Phase | 42761 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
