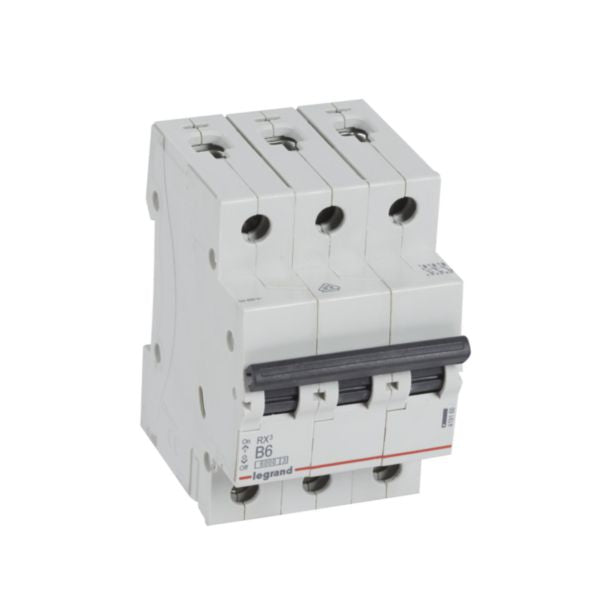

Shop Legrand RX3 MCB 3 Pole 6A Curve B Circuit Breaker | 419166 In Iraq Best Prices

Premium 3-pole miniature circuit breaker with 6A rating and B-curve protection, offering 6000A breaking capacity and advanced current-limiting technology for residential and commercial applications.

The Legrand RX3 MCB (Miniature Circuit Breaker) is a premium 3-pole circuit breaker designed for residential and small commercial electrical installations. This 6A rated device features a B-curve tripping characteristic that provides optimal protection against overloads and short circuits in typical household wiring applications. With a breaking capacity of 6000A according to IEC 60898-1 standard, this circuit breaker ensures reliable protection for your electrical systems. This device is engineered with advanced current-limiting technology (Class 3 energy limitation) that minimizes let-through energy during fault conditions, protecting downstream equipment from damage. The RX3 breaker can be supplied via copper cable or busbar connections (top or bottom side), offering flexible installation options. It features IP20 protection rating against solid bodies larger than 12.5mm, making it suitable for fingerproof installations in standard electrical panels. The Legrand RX3 meets all modern electrical safety standards and is compliant with substance-restriction requirements. It operates reliably at frequencies between 50-60 Hz with a rated voltage of 400V and insulation voltage of 500V. The device is compact, measuring 53.1mm in width and designed for DIN rail mounting with a built-in depth of 44mm. Installation should be performed by qualified electricians in compliance with local electrical codes and regulations.

Key Features

3-pole configuration with 3 protected poles for comprehensive circuit protection
6A rated current with B-curve tripping characteristic (3-5 In threshold) for reliable overload protection
6000A breaking capacity according to IEC 60898-1 standard for household installations
Class 3 energy limitation technology minimizing let-through energy during short circuits
IP20 fingerproof protection against solid bodies larger than 12.5mm for safe operation
Flexible connection options via copper cable or busbar (top or bottom side)
DIN rail mounting with 44mm built-in depth for standard electrical panels
400V rated voltage with 500V insulation voltage and 4kV impulse withstand capability
50-60 Hz frequency operation for universal compatibility
Environmentally conscious design compliant with substance-restriction requirements

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Manufacturer	Legrand
Model Series	RX3
Reference Number	419166
EAN Code	3414970367235
Number of Poles	3 poles total with 3 protected poles
Rated Current	6 Amperes (A)
Release Characteristic	B curve (tripping threshold 3-5 In, between 18A and 30A)
Rated Voltage	400 Volts (V)
Insulation Voltage (Ui)	500 Volts (V)
Impulse Withstand Voltage (Uimp)	4 Kilovolts (kV)
Breaking Capacity at 230V	10 kA (Icn and Icu)
Breaking Capacity at 400V	6 kA (Icn and Icu)
Frequency Range	50-60 Hz
Current Limiting Class	Class 3 (maximum energy limitation)
Degree of Protection (IP)	IP20 (fingerproof)
Degree of Impact Strength (IK)	IK02
Width	53.1 millimeters (mm)
Height	88.5 millimeters (mm)
Depth	77.8 millimeters (mm) / Built-in depth 44 mm
Width in Modular Spacings	3 spacings
Mounting Method	DIN rail mounting
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	By top or bottom
Flush-Mounted Installation	Yes
Concurrent Neutral Switching	No
Pollution Degree	2
Colour	Grey
RAL Number	7035
Halogen Free	No
Storage Temperature Range	-40 to 70 degrees Celsius
Nominal Voltage Range	360-440 Volts
Terminal Marking	Yes
Additional Equipment Possible	No
Explosion-Proof	No
Standard Compliance	IEC 60898-1, IEC 60947-2, IEC/EN 60529
Environmental Compliance	RoHS Directive, REACH Declaration compliant

Order Legrand RX3 MCB 3 Pole 6A Curve B Circuit Breaker | 419166 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
