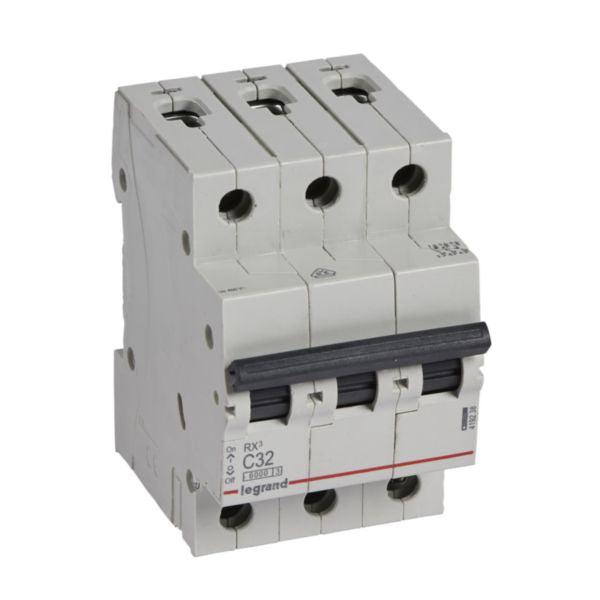

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance 3-pole circuit breaker rated at 32A with a C-type release characteristic, designed for residential and small commercial electrical installations. This device provides exceptional protection against overcurrents and short circuits with a breaking capacity of 6000A according to IEC 60898-1 standards. The tripping threshold in case of short-circuit ranges between 160A and 320A (C curve between 5 In and 10 In), ensuring reliable and fast fault detection.
The MCB RX3 features advanced current limiting technology (energy limitation class 3) that minimizes let-through energy during fault conditions, protecting downstream equipment and reducing arc damage. With a rated voltage of 400V and impulse withstand voltage of 4kV, this breaker is suitable for demanding industrial and commercial applications. The device is protected against solid bodies larger than 12.5mm (fingerproof) with IP20 protection rating according to IEC/EN 60529 standards, making it safe for installation in accessible locations.
This product can be supplied with copper cable, prong busbar (top or bottom side), or fork busbar (bottom side) connections, offering flexible installation options. The grey-colored device (RAL 7035) is designed for DIN rail mounting and complies with substance-restriction requirements while being manufactured through environmentally conscious processes. With dimensions of 53.1mm width, 88.5mm height, and 77.8mm depth, it occupies 3 modular spacing units on standard DIN rails.
Key Features
- 6000A breaking capacity according to IEC 60898-1 standards for household installations
- C-type release characteristic with tripping threshold between 160A and 320A (5 In to 10 In)
- Energy limitation class 3 for maximum protection of downstream equipment
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Flexible connection options: copper cable, prong busbar, or fork busbar
- 400V rated voltage with 4kV impulse withstand voltage
- DIN rail mounting with 3 modular spacing units
- Environmentally conscious design with substance-restriction compliance
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Number of Poles | 3 poles (3P) |
| Rated Current | 32 Amperes (A) |
| Release Characteristic | Type C (5-10 In) |
| Breaking Capacity | 6000A at 400V according to IEC 60898-1 |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Impulse Withstand Voltage | 4 kV |
| Short-circuit Breaking Capacity at 230V | 10 kA (Icn and Icu) |
| Short-circuit Breaking Capacity at 400V | 6 kA (Icn and Icu) |
| Current Limiting Class | Class 3 |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 (fingerproof) |
| Impact Strength Rating | IK02 |
| Width | 53.1 mm |
| Height | 88.5 mm |
| Depth | 77.8 mm (built-in depth 44 mm) |
| Modular Spacing | 3 units |
| Mounting Method | DIN rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | By the top or bottom |
| Pollution Degree | 2 |
| Color | Grey (RAL 7035) |
| Storage Temperature Range | -40 to 70°C |
| Nominal Voltage Range | 360-440V |
| Flush-mounted Installation | Yes |
| Concurrent Neutral Conductor Switching | No |
| Additional Equipment Possible | No |
| Halogen Free | No |
| Reference Number | 419238 |
| EAN Code | 3414970368157 |
