Shop Legrand RX3 MCB 3 Pole 16A Circuit Breaker C Curve | 419708 In Iraq Best Prices

Legrand RX3 3-pole miniature circuit breaker rated 16A with C-curve protection, 4500A breaking capacity, and advanced current limiting technology for residential and commercial installations.

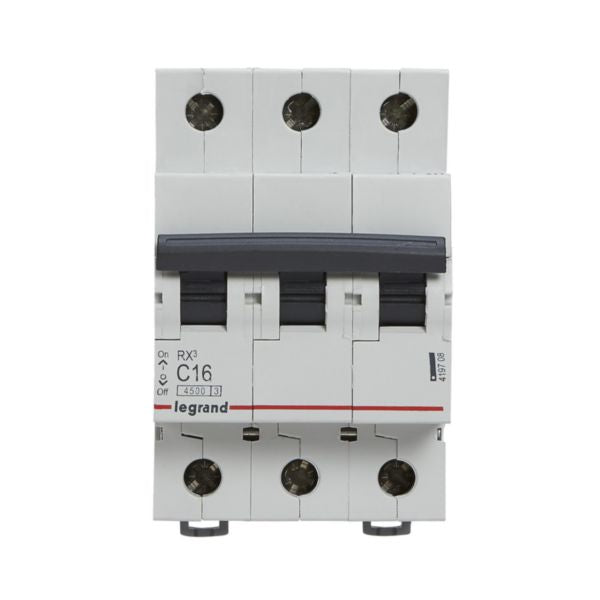

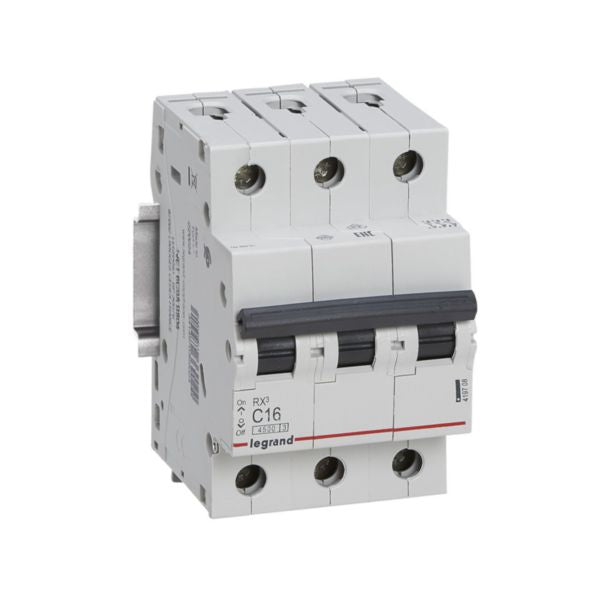

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance 3-pole circuit breaker designed for residential and small commercial electrical installations. With a rated current of 16A and a breaking capacity of 4500A according to IEC 60898-1 standard, this device provides reliable protection against overcurrent and short-circuit faults. The C-curve characteristic offers a tripping threshold between 80A and 160A (5 to 10 times the rated current), making it ideal for general-purpose circuits with moderate inrush currents. This circuit breaker features advanced current limiting technology (Class 3) that minimizes let-through energy during fault conditions, ensuring maximum protection for connected equipment and personnel. The device is rated at 400V AC with an impulse withstand voltage of 4kV, providing excellent protection against transient overvoltages. It complies with IP20 protection degree, offering fingerproof design that prevents accidental contact with internal components. The RX3 series is engineered with environmental consciousness, utilizing halogen-free materials and complying with RoHS and REACH directives. Installation is straightforward via DIN rail mounting with either copper cable or prong busbar connection (top or bottom supply). The compact design with 3-module width (53.4mm) makes it suitable for space-constrained panel installations. All Legrand products must be installed by qualified electricians in compliance with local electrical installation rules and regulations.

Key Features

Breaking capacity of 4500A according to IEC 60898-1 standard for household installations
C-curve characteristic with tripping threshold between 80A and 160A (5-10 times rated current)
Advanced current limiting technology (Class 3) minimizes let-through energy during faults
IP20 fingerproof protection against solid bodies larger than 12.5mm
Halogen-free construction with RoHS and REACH compliance for environmental protection
Flexible connection options: copper cable or prong busbar (top or bottom supply)

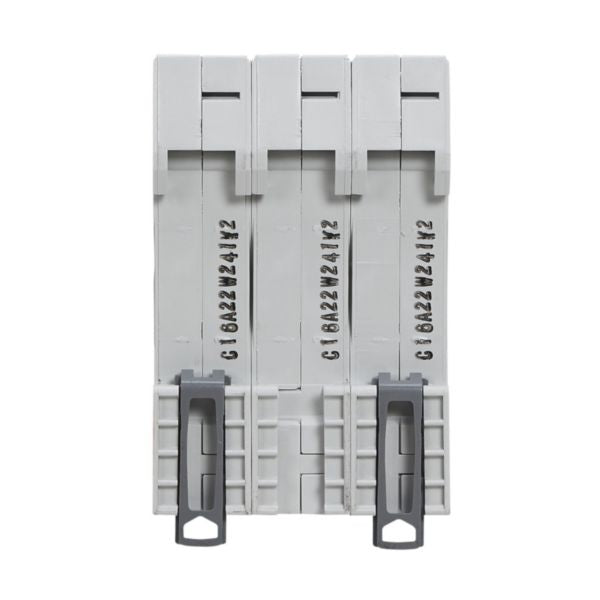

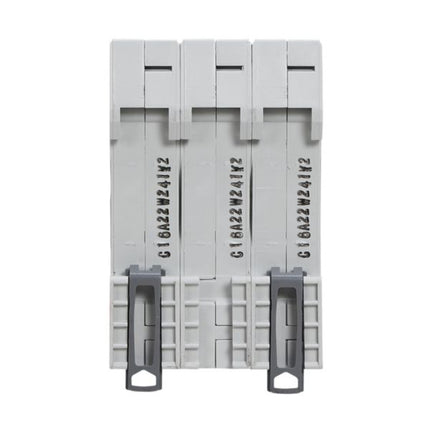

Compact 3-module DIN rail mounting design (53.4mm width)
Rated at 400V AC with 4kV impulse withstand voltage
Operating frequency range 50-60Hz for universal compatibility
Storage temperature range -25 to 60°C for reliable performance in various climates

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Number of Poles	3 poles (3P)
Rated Current	16 Amperes (A)
Rated Voltage	400 Volts AC
Rated Insulation Voltage	400V (Ui)
Rated Impulse Withstand Voltage	4 kV (Uimp)
Breaking Capacity (Icn) at 230V	6 kA according to EN 60898
Breaking Capacity (Icn) at 400V	4.5 kA according to EN 60898
Ultimate Breaking Capacity (Icu) at 230V	6 kA according to IEC 60947-2
Ultimate Breaking Capacity (Icu) at 400V	4.5 kA according to IEC 60947-2
Trip Characteristic	C-curve (80A to 160A)
Current Limiting Class	Class 3
Frequency Range	50-60 Hz
Degree of Protection (IP)	IP20 (Fingerproof)
Impact Strength (IK)	IK04
Width (Module Spacing)	3 modules (53.4 mm)
Height	88.8 mm
Depth (Built-in)	44 mm
Overall Depth	77.3 mm
Color	Grey (RAL 7035)
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	By the top or bottom
Mounting Method	DIN rail
Flush-mounted Installation	Yes
Neutral Conductor Switching	No (3 protected poles only)
Pollution Degree	2
Nominal Voltage Range	360-440 V
Storage Temperature Range	-25 to 60°C
Halogen Free	Yes
Additional Equipment	Not possible
Explosion-proof	No
Reference Number	419708
EAN Code	3414970369024
Brand	Legrand
Series	RX3

Order Legrand RX3 MCB 3 Pole 16A Circuit Breaker C Curve | 419708 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
