Shop Legrand RX3 MCB 3 Pole 13A Curve C Circuit Breaker | 419234 In Iraq Best Prices
Three-pole 13A Curve C miniature circuit breaker with 6000A breaking capacity, IP20 protection, and advanced current limiting technology for reliable household and commercial electrical protection.

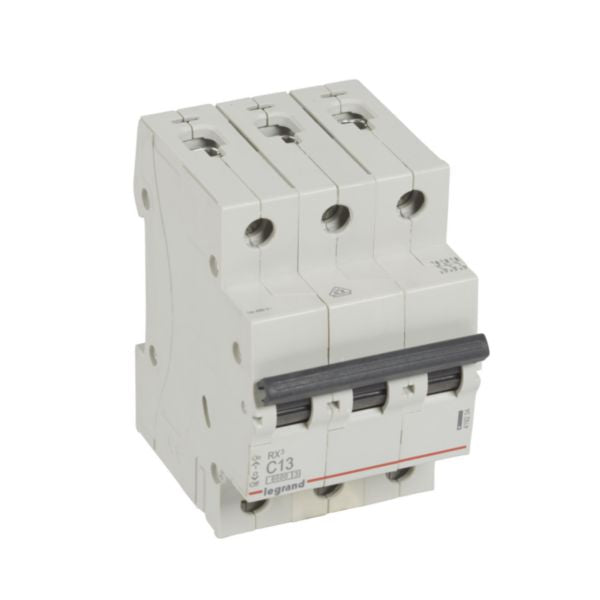

The Legrand RX3 MCB (Miniature Circuit Breaker) is a three-pole circuit breaker rated at 13 Amperes with a Curve C release characteristic, designed for household and small commercial electrical installations. This device provides reliable protection against overcurrent and short-circuit faults with a breaking capacity of 6000A according to IEC 60898-1 standard. The MCB features advanced current limiting technology (Class 3 energy limitation) that minimizes the let-through energy during fault conditions, ensuring maximum protection for connected equipment and personnel.
The RX3 series breaker is engineered with multiple connection options including copper cables, prong busbars (top or bottom side), and fork busbars (bottom side), providing flexibility for various installation configurations. The device is protected against solid bodies larger than 12.5mm with an IP20 rating according to IEC/EN 60529 standard, ensuring fingerproof protection. Its compact design with 3-module width (53.1mm) fits seamlessly into standard DIN rail-mounted distribution panels.
This circuit breaker complies with all substance-restriction requirements and has been manufactured using environmentally conscious processes. The RX3 operates reliably across a wide frequency range of 50-60 Hz with a rated voltage of 400V and insulation voltage of 500V. With its tripping threshold between 65A and 130A for short-circuit protection, this breaker is ideal for protecting lighting circuits, general purpose circuits, and small loads in residential and commercial applications.
Key Features
- 6000A breaking capacity according to IEC 60898-1 standard for household installations
- Curve C release characteristic with tripping threshold between 65A and 130A for short-circuit protection
- Class 3 current limiting technology minimizes let-through energy during fault conditions
- IP20 fingerproof protection against solid bodies larger than 12.5mm per IEC/EN 60529
- Multiple connection options: copper cable, prong busbar, or fork busbar for flexible installation
- Compact 3-module width (53.1mm) for DIN rail-mounted distribution panels
- Operates reliably at 50-60 Hz frequency with 400V rated voltage
- Environmentally conscious manufacturing with compliance to substance-restriction requirements
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Number of Poles | 3 poles (3 protected poles) |
| Rated Current | 13 Amperes |
| Release Characteristic | Curve C |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 10 kA (Icn and Icu) |
| Breaking Capacity at 400V | 6 kA (Icn and Icu) |
| Current Limiting Class | Class 3 |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK02 |
| Width in Modular Spacings | 3 modules |
| Physical Width | 53.1 mm |
| Physical Height | 88.5 mm |
| Physical Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Mounting Method | DIN rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Electric Supply Direction | Top or bottom |
| Colour | Grey (RAL 7035) |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 360-440V |
| Terminal Marking | Yes |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral Conductor | No |
| Additional Equipment Possible | No |
| Halogen Free | No |
| SKU | 419234 |
| EAN Code | 3414970368072 |
| Manufacturer | Legrand |
| Series | RX³ |
