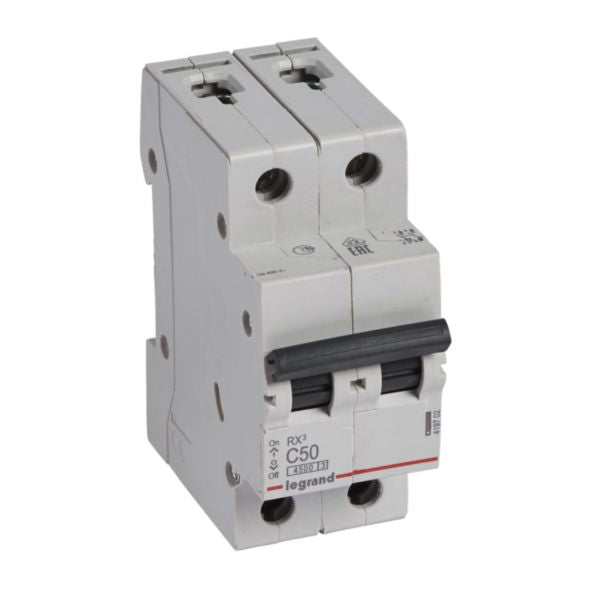

Shop Legrand RX3 MCB 2P 50A Curve C Circuit Breaker | 419702 In Iraq Best Prices

Professional 2-pole 50A miniature circuit breaker with 4500A breaking capacity, C-curve protection, and IP20 rating for reliable household and commercial electrical installations

The Legrand RX3 MCB 2P 50A Curve C is a high-performance miniature circuit breaker designed for household and small commercial electrical installations. With a breaking capacity of 4500A according to IEC 60898-1 standard, this device provides reliable protection against short circuits and overloads. The C-curve characteristic offers a tripping threshold between 250A and 500A (5 In to 10 In), making it ideal for circuits with moderate inrush currents. The breaker features current limiting class 3, ensuring maximum limitation of let-through energy for enhanced safety and equipment protection. This two-pole circuit breaker is constructed with advanced protection against solid bodies larger than 12.5mm, achieving IP20 protection rating according to IEC/EN 60529 standard. The device can be supplied through either copper cable or prong busbar connections from the top or bottom, providing flexible installation options. Built with halogen-free materials and designed through environmentally conscious processes, this MCB complies with all substance-restriction requirements. The compact design with 34.6mm width allows for space-efficient installation on DIN rails. The RX3 series delivers superior reliability and performance for modern electrical systems. It features rated impulse withstand voltage of 4kV and operates across a frequency range of 50-60Hz. With a rated voltage of 400V AC and insulation voltage of 400V, this circuit breaker is suitable for various industrial and residential applications requiring dependable overcurrent protection.

Key Features

4500A breaking capacity according to IEC 60898-1 standard for household installations
C-curve characteristic with tripping threshold between 250A and 500A for moderate inrush currents
Current limiting class 3 for maximum let-through energy limitation
IP20 protection rating against solid bodies larger than 12.5mm (fingerproof)
Flexible supply options via copper cable or prong busbar from top or bottom

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Manufacturer	Legrand
Series	RX³
Reference Number	419702
EAN Code	3414970368928
Number of Poles	2 (2P)
Rated Current	50 A
Release Characteristic	C Curve
Rated Voltage	400 V AC
Rated Insulation Voltage	400 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity (Icn) at 230V	6 kA
Breaking Capacity (Icn) at 400V	4.5 kA
Breaking Capacity (Icu) at 230V	6 kA
Breaking Capacity (Icu) at 400V	4.5 kA
Current Limiting Class	3
Frequency Range	50-60 Hz
Degree of Protection (IP)	IP20
Impact Strength Rating (IK)	IK04
Width	34.6 mm
Height	88.8 mm
Depth	77.3 mm
Built-in Depth	44 mm
Modular Width	2 spacings
Color	Grey (RAL 7035)
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	Top or bottom
Mounting Method	DIN rail
Flush-mounted Installation	Yes
Concurrently Switching Neutral	No
Pollution Degree	2
Nominal Voltage Range	360-440 V
Storage Temperature Range	-25 to 60 °C
Halogen Free	Yes
Additional Equipment Possible	No
Explosion-proof	No
Terminal Marking	No
Label Space	No

Order Legrand RX3 MCB 2P 50A Curve C Circuit Breaker | 419702 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
