Shop Legrand RX3 MCB 2 Pole 40A Circuit Breaker Type C | 419228 In Iraq Best Prices
Legrand RX3 2-pole 40A miniature circuit breaker with Type C curve, 6000A breaking capacity, IP20 protection, and DIN rail mounting for residential and commercial electrical installations.

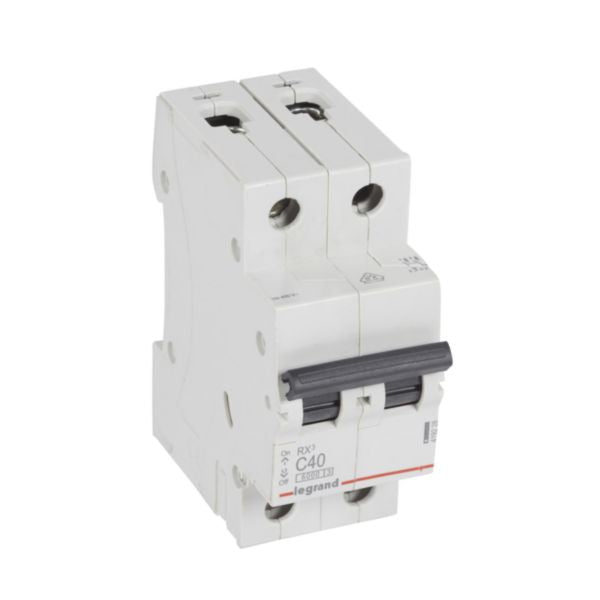

The Legrand RX3 MCB 2 Pole 40A Circuit Breaker with Type C curve (Reference 419228) is a high-performance miniature circuit breaker designed for household and small commercial electrical installations. This device features a breaking capacity of 6000A according to IEC 60898-1 standard, providing reliable protection against short circuits and overloads. The Type C curve characteristic offers a tripping threshold between 200A and 400A (5 In to 10 In), making it ideal for circuits with moderate inrush currents.
This 2-pole circuit breaker is manufactured to the highest standards with IP20 protection rating (fingerproof against solid bodies larger than 12.5mm) and achieves maximum energy limitation classification 3 according to IEC 60898-1 standard. The device can be supplied via copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), offering flexible installation options. With a rated voltage of 400V and rated insulation voltage of 500V, it provides comprehensive electrical protection for residential and commercial applications.
The RX3 MCB features a compact design with DIN rail mounting capability, dimensions of 35.4mm width and 44mm built-in depth, making it suitable for standard distribution panels and switchboards. The device complies with all substance-restriction requirements and has been designed with environmental consciousness in mind. Its grey color (RAL 7035) and professional finish ensure aesthetic integration into modern electrical installations. Legrand's commitment to quality ensures long-term reliability and compliance with all relevant electrical safety standards.
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
- Type C curve characteristic with tripping threshold between 200A and 400A (5 In to 10 In)
- IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
- Maximum energy limitation class 3 providing superior short-circuit protection
- Flexible supply options: copper cable, prong busbar, or fork busbar connections
- DIN rail mounting with compact design - 35.4mm width and 44mm depth
- Rated voltage 400V with 500V insulation voltage and 4kV impulse withstand voltage
- Environmentally conscious design complying with substance-restriction requirements
- Grey color (RAL 7035) with professional finish for modern installations
- Suitable for both residential and small commercial electrical applications
Technical Specifications
| Specification |
Value |
| Product Reference | 419228 |
| EAN Code | 3414970367945 |
| Number of Poles | 2 poles |
| Rated Current | 40 A |
| Release Characteristic | Type C (5 In to 10 In) |
| Breaking Capacity | 6000A according to IEC 60898-1 |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Short-Circuit Breaking Capacity at 230V | 10 kA (Icn and Icu) |
| Short-Circuit Breaking Capacity at 400V | 6 kA (Icn and Icu) |
| Frequency | 50-60 Hz |
| Current Limiting Class | 3 |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK02 |
| Width | 35.4 mm |
| Height | 88.5 mm |
| Depth (Built-in) | 44 mm |
| Overall Depth | 77.8 mm |
| Modular Width | 2 modular spacings |
| Color | Grey (RAL 7035) |
| Mounting Method | DIN rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | By the top or bottom |
| Flush-Mounted Installation | Yes |
| Neutral Conductor Switching | No |
| Pollution Degree | 2 |
| Storage Temperature Range | -40 to 70 °C |
| Nominal Voltage Range | 360-440 V |
| Halogen Free | No |
| Standards Compliance | IEC 60898-1, IEC/EN 60529, IEC 60947-2 |
