Shop Legrand RX3 MCB 2 Pole 25A Curve B Circuit Breaker | 419160 In Iraq Best Prices
Professional-grade 2-pole 25A B-curve MCB with 6000A breaking capacity, IP20 protection, and advanced energy limitation for reliable circuit protection in residential and commercial installations.

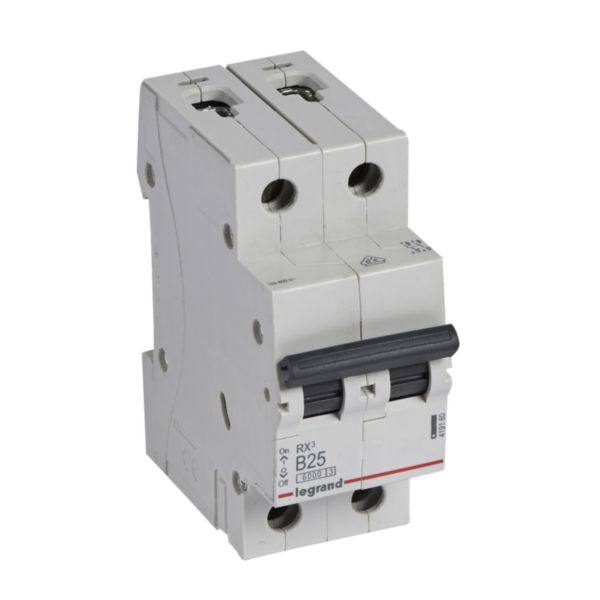

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance 2-pole circuit breaker rated at 25A with B-curve characteristics, designed for residential and small commercial electrical installations. This device provides reliable protection against overloads and short circuits with a breaking capacity of 6000A according to IEC 60898-1 standards. The B-curve tripping characteristic ensures protection between 3-5 times the rated current, making it ideal for general-purpose circuits with moderate inrush currents.
Built to the highest safety standards, this MCB features IP20 protection rating (fingerproof against solid bodies larger than 12.5mm) and operates at rated voltage of 400V with insulation voltage of 500V. The device incorporates current limiting technology (Class 3 energy limitation) that minimizes let-through energy during short circuits, providing superior protection for connected equipment. With dimensions of 35.4mm width and 44mm depth, it fits standard DIN rail mounting in compact electrical panels.
The RX3 series is engineered with environmental consciousness, complying with substance-restriction requirements and offering halogen-free construction options. It can be supplied via copper cable, prong busbar, or fork busbar connections, providing flexible installation options. The terminal marking indication feature aids in proper circuit identification and maintenance. This industrial-grade circuit breaker is suitable for flush-mounted installation and operates reliably across 50-60 Hz frequency range, making it a versatile choice for modern electrical systems.
Key Features
- 6000A breaking capacity per IEC 60898-1 standard for household installations
- B-curve tripping characteristic (3-5 times rated current) for general-purpose circuits
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Class 3 energy limitation for superior short-circuit protection
- DIN rail mounting with 2-module width (35.4mm) for compact panel installation
- Multiple connection options: copper cable, prong busbar, or fork busbar
- Rated voltage 400V with 500V insulation and 4kV impulse withstand voltage
- Terminal marking indication for easy circuit identification
- Environmentally conscious design complying with substance-restriction requirements
- Reliable operation across 50-60 Hz frequency range
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Brand | Legrand |
| Series | RX3 |
| Reference Number | 419160 |
| EAN Code | 3414970367082 |
| Number of Poles | 2 |
| Rated Current | 25 A |
| Release Characteristic | B Curve |
| Rated Voltage | 400 V AC |
| Rated Insulation Voltage | 500 V |
| Rated Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 10 kA |
| Breaking Capacity at 400V | 6 kA |
| Current Limiting Class | Class 3 |
| Degree of Protection | IP20 |
| Impact Strength | IK02 |
| Width | 35.4 mm |
| Height | 88.5 mm |
| Depth | 77.8 mm |
| Built-in Depth | 44 mm |
| Width in Module Spacing | 2 |
| Mounting Method | DIN Rail |
| Flush-mounted Installation | Yes |
| Connection Type | Screwed Terminal, Busbar and Cable |
| Electric Supply Direction | Top or Bottom |
| Terminal Marking | Yes |
| Frequency Range | 50-60 Hz |
| Nominal Voltage Range | 360-440 V |
| Storage Temperature Range | -40 to 70 °C |
| Pollution Degree | 2 |
| Colour | Grey |
| RAL Number | 7035 |
| Halogen Free | No |
| Concurrently Switching Neutral | No |
| Additional Equipment Possible | No |
| Explosion-proof | No |
| Label Space/Information Surface | No |
