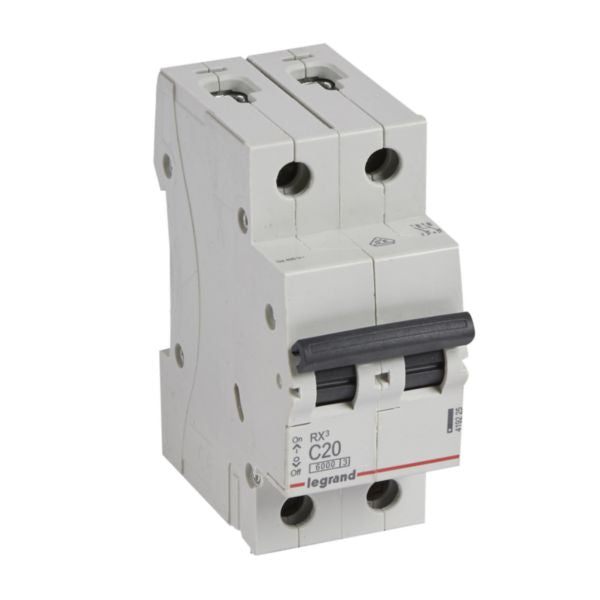

Shop Legrand RX3 MCB 2 Pole 20A Curve C Circuit Breaker | 419225 In Iraq Best Prices

Legrand RX³ 2-pole 20A C-curve MCB with 6000A breaking capacity, IP20 protection, and advanced energy limitation for reliable residential and commercial electrical safety.

The Legrand RX³ MCB (Miniature Circuit Breaker) is a high-performance 2-pole circuit breaker designed for residential and small commercial electrical installations. With a rated current of 20A and a breaking capacity of 6000A according to IEC 60898-1 standard, this device provides reliable protection against overloads and short circuits. The C-curve characteristic offers tripping thresholds between 100A and 200A (5-10 times the rated current), making it ideal for circuits with moderate inrush currents. The RX³ series features advanced current limiting technology (Class 3 energy limitation) that minimizes let-through energy during fault conditions, ensuring superior protection for connected equipment. This circuit breaker is constructed with robust materials and offers IP20 protection rating, making it fingerproof against solid bodies larger than 12.5mm. The device can be supplied by copper cables, prong busbars (top or bottom side), or fork busbars (bottom side), providing flexible installation options. Built-in depth of 44mm and width of 35.4mm (2 modular spacings) ensure compatibility with standard DIN rail mounted enclosures. The grey colored housing (RAL 7035) blends seamlessly with modern electrical installations while maintaining professional aesthetics. Compliant with IEC 60898-1 and IEC 60947-2 standards, this MCB incorporates environmentally conscious design principles and substance-restriction compliance. The device operates across 50-60 Hz frequency range with a rated insulation voltage of 500V and impulse withstand voltage of 4kV. Installation should be performed by qualified electricians in accordance with local electrical codes and regulations. Legrand's commitment to quality ensures long-term reliability and safety in demanding electrical environments.

Key Features

Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
C-curve characteristic with tripping threshold between 100A and 200A (5-10 times rated current)
IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
Class 3 energy limitation for superior protection of connected equipment
Flexible supply options: copper cable, prong busbar (top/bottom), or fork busbar (bottom)
Rated insulation voltage of 500V with 4kV impulse withstand voltage
Compact DIN rail mounting with 2 modular spacings for standard enclosures
Grey RAL 7035 color for professional aesthetic appearance
Operates across 50-60 Hz frequency range
Environmentally conscious design with substance-restriction compliance

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Number of Poles	2 poles
Rated Current	20A
Release Characteristic	C curve
Breaking Capacity (Icn) at 230V	10 kA
Breaking Capacity (Icn) at 400V	6 kA
Ultimate Breaking Capacity (Icu) at 230V	10 kA
Ultimate Breaking Capacity (Icu) at 400V	6 kA
Rated Voltage	400V
Rated Insulation Voltage (Ui)	500V
Impulse Withstand Voltage (Uimp)	4 kV
Voltage Type	AC
Frequency Range	50-60 Hz
Current Limiting Class	Class 3
Degree of Protection (IP)	IP20
Degree of Impact Strength (IK)	IK02
Built-in Depth	44 mm
Width	35.4 mm
Height	88.5 mm
Total Depth	77.8 mm
Width in Modular Spacings	2 modules
Color	Grey (RAL 7035)
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable
Electric Supply Direction	By the top or bottom
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Additional Equipment Possible	No
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	360-440V
Terminal Marking	Yes
Halogen Free	No
Standards Compliance	IEC 60898-1, IEC 60947-2, IEC/EN 60529
Reference Number	419225
EAN Code	3414970367853

Order Legrand RX3 MCB 2 Pole 20A Curve C Circuit Breaker | 419225 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
