Shop Legrand RX3 MCB 2 Pole 20A Curve B Circuit Breaker | 419159 In Iraq Best Prices

Legrand RX3 2-pole 20A B-curve MCB with 6000A breaking capacity, IP20 fingerproof protection, and advanced energy limitation for reliable residential and commercial circuit protection.

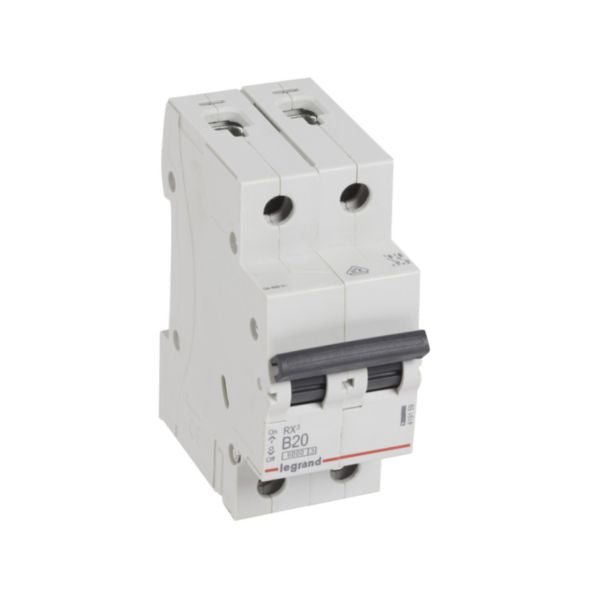

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance 2-pole circuit breaker rated at 20A with a B-curve characteristic, designed for residential and small commercial electrical installations. This device provides reliable protection against overload and short-circuit faults with a breaking capacity of 6000A according to IEC 60898-1 standard. The RX3 series offers advanced energy limitation technology (Class 3) ensuring maximum protection and minimal damage during electrical faults. This 2-pole circuit breaker features a tripping threshold between 60A and 100A for short-circuit protection, making it ideal for protecting circuits in homes and small businesses. The device is fingerproof (IP20) and protected against solid bodies larger than 12.5mm, ensuring safe operation in residential environments. With its compact design and DIN rail mounting capability, the RX3 integrates seamlessly into distribution panels and switchboards. The product complies with all substance-restriction requirements and has been designed following environmentally conscious manufacturing processes. It can be supplied with copper cable connections, prong busbar, or fork busbar options, offering flexible installation solutions. The grey RAL 7035 colored housing provides aesthetic integration into modern electrical installations.

Key Features

6000A breaking capacity according to IEC 60898-1 standard for household installations
B-curve tripping characteristic with 60A-100A threshold for short-circuit protection
IP20 fingerproof protection against solid bodies larger than 12.5mm
Class 3 energy limitation for maximum fault limitation and minimal damage
Flexible connection options: copper cable, prong busbar, or fork busbar
DIN rail mounting for easy integration into distribution panels
Rated for 400V AC with 4kV impulse withstand voltage
Environmentally conscious design compliant with substance-restriction requirements

Technical Specifications

Specification	Value
Number of Poles	2 poles (2P)
Rated Current	20 A
Release Characteristic	B curve (3-5 In)
Breaking Capacity	6000A at 400V (Icn according to IEC 60898-1)
Rated Voltage	400V AC
Rated Insulation Voltage	500V (Ui)
Impulse Withstand Voltage	4 kV (Uimp)
Frequency Range	50-60 Hz
Energy Limitation Class	Class 3
Degree of Protection	IP20 (fingerproof)
Impact Strength Rating	IK02
Built-in Depth	44 mm
Width	35.4 mm
Height	88.5 mm
Total Depth	77.8 mm
Width in Modular Spacings	2 modules
Color	Grey (RAL 7035)
Connection Type	Screwed terminal, Busbar and cable
Mounting Method	DIN rail
Flush-mounted Installation	Yes
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	360-440V
Supply Direction	By the top or bottom
Pollution Degree	2
Reference Number	419159
EAN Code	3414970367051

Order Legrand RX3 MCB 2 Pole 20A Curve B Circuit Breaker | 419159 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
