Legrand RX3 2-pole 16A MCB with C-curve protection, 6000A breaking capacity, IP20 rated, suitable for residential and commercial electrical installations with advanced current limiting technology.

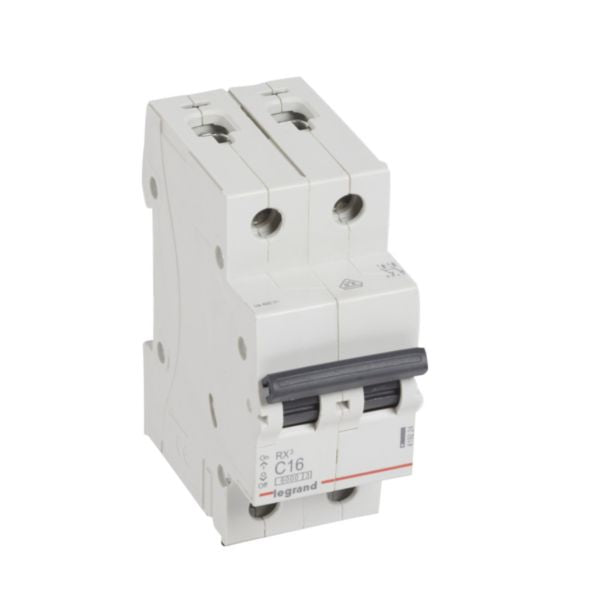

The Legrand RX3 MCB (Miniature Circuit Breaker) is a 2-pole 16A circuit breaker with C-curve release characteristic, designed for household and small commercial electrical installations. This device provides reliable protection against overcurrent and short-circuit conditions with a breaking capacity of 6000A according to IEC 60898-1 standard. The MCB features advanced current limiting technology (Class 3) that minimizes let-through energy during fault conditions, ensuring maximum safety for electrical systems and connected equipment.
This circuit breaker is engineered for flush-mounted installation on DIN rails and can be supplied via copper cable, prong busbar, or fork busbar connections. The device offers IP20 protection against solid bodies larger than 12.5mm, making it fingerproof and suitable for various installation environments. With a rated voltage of 400V and impulse withstand voltage of 4kV, the RX3 MCB meets strict international standards including EN 60898 and IEC 60947-2, ensuring compliance with modern electrical safety regulations.
The product incorporates environmentally conscious design principles and substance-restriction compliance, making it an eco-friendly choice for modern electrical installations. Its compact design with 44mm built-in depth and 2-module width allows for space-efficient panel arrangements. The terminal marking indication and screwed terminal/busbar connection options provide flexibility in installation scenarios, while the C-curve characteristic (tripping between 5In and 10In) makes it ideal for circuits with moderate inrush currents typical in residential and small commercial applications.
Key Features
- Breaking capacity of 6000A according to IEC 60898-1 standard for household installations
- C-curve release characteristic with tripping threshold between 5In and 10In for moderate inrush currents
- Class 3 current limiting technology minimizing let-through energy during short-circuits
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Multiple connection options: copper cable, prong busbar, or fork busbar
- Compact 44mm built-in depth with 2-module width for space-efficient installations
- Rated voltage 400V with 4kV impulse withstand voltage
- DIN rail flush-mounted installation compatible
- Terminal marking indication for easy identification
- Environmentally conscious design with substance-restriction compliance
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Number of Poles | 2 poles |
| Rated Current | 16 Amperes |
| Release Characteristic | C curve (5In to 10In) |
| Breaking Capacity | 6000A at 400V according to IEC 60898-1 |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Impulse Withstand Voltage | 4 kV |
| Short-circuit Breaking Capacity (Icn) at 230V | 10 kA |
| Short-circuit Breaking Capacity (Icn) at 400V | 6 kA |
| Short-circuit Breaking Capacity (Icu) at 230V | 10 kA according to IEC 60947-2 |
| Short-circuit Breaking Capacity (Icu) at 400V | 6 kA according to IEC 60947-2 |
| Current Limiting Class | Class 3 |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 (fingerproof) |
| Degree of Impact Strength | IK02 |
| Built-in Depth | 44 mm |
| Width | 35.4 mm (2 module spacing) |
| Height | 88.5 mm |
| Total Depth | 77.8 mm |
| Colour | Grey (RAL 7035) |
| Mounting Method | DIN rail (flush-mounted installation) |
| Connection Type | Screwed terminal, Busbar and cable |
| Electric Supplying Direction | By the top or bottom |
| Concurrently Switching Neutral Conductor | No |
| Terminal Marking Indication | Yes |
| Additional Equipment Possible | No |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to +70°C |
| Nominal Voltage Range | 360-440V |
| Halogen Free | No |
| Explosion-proof | No |
| Reference Number | 419224 |
| EAN Code | 3414970367822 |
| Brand | Legrand |
| Series | RX3 |
