Legrand RX3 1P+N 25A curve C miniature circuit breaker with 3kA breaking capacity, IP20 protection, and advanced current limiting for reliable household electrical protection

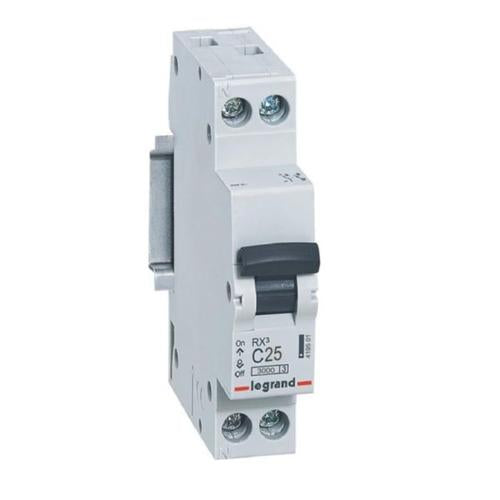

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance residential and small commercial circuit protection device designed for modern electrical installations. This 1 pole + neutral configuration with 25A rated current and curve C characteristics provides reliable protection against overloads and short circuits. The device features a breaking capacity of 3000A (3kA) according to IEC 60898-1 standard, making it ideal for household installations requiring dependable electrical safety.
This circuit breaker incorporates advanced current limiting technology (class 3) to minimize the let-through energy during fault conditions, ensuring superior protection for connected equipment and circuits. The RX3 series is engineered with a compact modular design that fits standard DIN rail mounting systems, occupying just 2 modular spacings. The device is fingerproof (IP20) with protection against solid bodies larger than 12.5mm, meeting all IEC/EN 60529 standards. It features a tripping threshold range of 125A-250A for short-circuit conditions, providing optimal protection across various electrical loads.
The product is manufactured with environmental consciousness, complying with substance-restriction requirements and RoHS directives. It supports both copper cable and prong busbar connections from the top or bottom, offering installation flexibility. With its grey finish (RAL 7035) and halogen-free construction, this MCB represents a modern, safe, and environmentally responsible choice for residential and small commercial electrical distribution systems.
Key Features
- 3000A (3kA) breaking capacity according to IEC 60898-1 standard for household installations
- 1 pole + neutral configuration with 25A rated current and curve C tripping characteristic
- Advanced current limiting class 3 technology minimizes let-through energy during faults
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Compact 2-module width DIN rail mounting with flexible top or bottom connection
- Concurrently switching neutral conductor for enhanced safety
- Halogen-free and environmentally conscious design with RoHS compliance
- Short-circuit tripping threshold between 125A and 250A (C curve 5-10 In)
- 230V rated voltage with 250V insulation and 4kV impulse withstand capability
- Grey finish (RAL 7035) with terminal marking indication and IK04 impact resistance
Technical Specifications
| Specification |
Value |
| Product Type | Miniature Circuit Breaker (MCB) |
| Brand | Legrand |
| Series | RX3 |
| Reference Number | 419501 |
| EAN Code | 3414970693815 |
| Number of Poles | 1 pole + neutral (2 total poles) |
| Rated Current | 25A |
| Release Characteristic | Curve C |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 250V |
| Rated Impulse Withstand Voltage | 4kV |
| Breaking Capacity (Icn) | 3kA at 230V according to EN 60898 |
| Short-Circuit Tripping Threshold | 125A-250A (C curve 5-10 In) |
| Current Limiting Class | Class 3 |
| Frequency | 50-60 Hz |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Pollution Degree | 2 |
| Width in Modular Spacings | 2 modules |
| Built-in Depth | 44mm |
| Physical Width | 17.8mm |
| Physical Height | 88.7mm |
| Physical Depth | 77.5mm |
| Colour | Grey (RAL 7035) |
| Mounting Method | DIN rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom |
| Neutral Conductor Switching | Concurrently switching |
| Nominal Voltage Range | 210-250V |
| Storage Temperature Range | -40°C to +70°C |
| Halogen Free | Yes |
| Additional Equipment Possible | Yes |
| Terminal Marking | Yes |
| Flush-mounted Installation | Yes |
| Carbon Footprint (Manufacturing Phase) | 0.653 kg CO2 eq. |
| Compliance Standards | IEC 60898-1, IEC/EN 60529, RoHS, REACH |
| Installation Requirement | Qualified electrician recommended |
