Description

Shop Legrand RX3 MCB 1P+N 16A Curve C 3kA Circuit Breaker | 419499 In Iraq Best Prices

Legrand RX3 16A 1P+N circuit breaker with 3kA breaking capacity and curve C characteristic for reliable household electrical protection

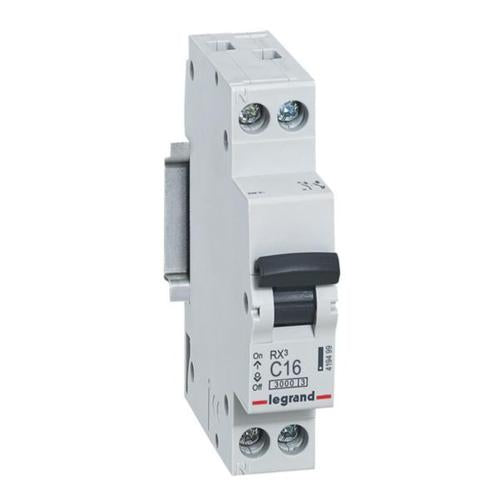

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance 1 pole + neutral 16A circuit breaker with a curve C characteristic and 3000A breaking capacity, designed for residential and small commercial electrical installations. This device provides reliable protection against overload and short-circuit faults, featuring advanced current limiting technology (class 3) that minimizes let-through energy and reduces the risk of electrical fires. The RX3 series breaker is engineered to comply with EN 60898-1 standards for household installations, ensuring maximum safety and durability. This MCB features a compact modular design with DIN rail mounting, occupying just 2 modular spacing units, making it ideal for space-constrained electrical panels. The device can be supplied with either copper cable or prong busbar connections (top or bottom entry), providing flexible installation options. With an IP20 protection rating and IK04 impact strength, it offers robust protection against solid bodies larger than 12.5mm while maintaining fingerproof safety. The RX3 3000A breaker is manufactured using environmentally conscious processes and is halogen-free, complying with RoHS and REACH regulations. It operates reliably across 50-60 Hz frequencies and maintains consistent performance within the nominal voltage range of 210-250V. The device includes terminal marking indication and is suitable for concurrent switching of the neutral conductor, making it an excellent choice for modern electrical installations requiring both safety and compliance.

Key Features

Breaking capacity of 3000A according to IEC 60898-1 standard for household installations
Advanced current limiting technology (class 3) with minimal let-through energy
Curve C tripping characteristic with short-circuit threshold between 80A-160A (5In-10In)
Compact 2-module DIN rail design with IP20 protection and IK04 impact strength
Flexible connection options with top or bottom copper cable and prong busbar supply
Concurrent neutral conductor switching with terminal marking indication
Halogen-free environmentally conscious design compliant with RoHS and REACH regulations
Operates reliably across 50-60 Hz frequencies with 210-250V nominal voltage range

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Rated Current	16 Amperes
Breaking Capacity	3000A (Icn according to EN 60898 at 230V)
Trip Characteristic	Curve C (80A-160A or 5In-10In)
Number of Poles	2 poles (1 protected pole + neutral)
Rated Voltage	230V AC
Rated Insulation Voltage	250V
Impulse Withstand Voltage	4 kV
Frequency Range	50-60 Hz
Current Limiting Class	Class 3
Degree of Protection	IP20
Impact Strength Rating	IK04
Width (Module Units)	2 modules
Width	17.8 mm
Height	88.7 mm
Depth (Built-in)	44 mm
Overall Depth	77.5 mm
Mounting Method	DIN Rail
Connection Type	Screwed terminal, Busbar and cable (top or bottom entry)
Color	Grey (RAL 7035)
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	210-250V
Halogen Free	Yes
Neutral Conductor Switching	Concurrent switching supported
Additional Equipment	Possible
Carbon Footprint (Manufacturing)	0.571 kg CO2 eq.
Reference Number	419499
EAN Code	3414970693754
Standards Compliance	EN 60898-1, IEC 60898-1, NF, VDE

Order Legrand RX3 MCB 1P+N 16A Curve C 3kA Circuit Breaker | 419499 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
