Description

Shop Legrand RX3 MCB 1P+N 10A Curve C Circuit Breaker | 419497 In Iraq Best Prices

Professional-grade 1P+N 10A curve C miniature circuit breaker with 3000A breaking capacity, IP20 protection, and advanced current limiting technology for reliable residential and commercial electrical protection.

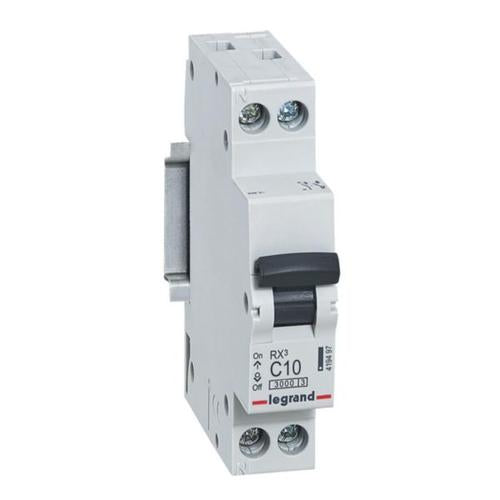

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance 1 pole + neutral 10A curve C circuit breaker designed for residential and small commercial electrical installations. With a rated short-circuit breaking capacity of 3000A according to IEC 60898 standard, this device provides reliable protection against overloads and short circuits. The C-curve characteristic ensures a tripping threshold between 50A and 100A (5 to 10 times the rated current), making it ideal for general purpose circuits with normal inrush currents. This circuit breaker features advanced current limiting technology (Class 3) that minimizes let-through energy and provides superior protection to downstream equipment. The device is constructed with IP20 protection rating, offering fingerproof safety with protection against solid bodies larger than 12.5mm. It operates at rated voltage of 230V AC with frequency range of 50-60Hz and maintains rated impulse withstand voltage of 4kV, ensuring compatibility with modern electrical systems. The RX3 is engineered with environmental consciousness, complying with substance-restriction requirements and manufactured through environmentally responsible processes. Installation is straightforward via DIN rail mounting with either top or bottom busbar connection or copper cable terminals. The compact design with 44mm built-in depth and 2-module width makes it suitable for integration into standard distribution panels and switchboards. All Legrand products are designed to meet rigorous international standards and certifications including NF, VDE, and CB certifications.

Key Features

3000A rated short-circuit breaking capacity per IEC 60898-1 standard for household installations
C-curve characteristic with tripping threshold between 50A-100A (5-10 times rated current)
Advanced Class 3 current limiting technology minimizing let-through energy
IP20 protection rating with fingerproof safety against solid bodies larger than 12.5mm
230V AC rated voltage with 4kV impulse withstand capability and 50-60Hz frequency compatibility
DIN rail mounting with flexible top/bottom busbar or copper cable connection options
Compact 44mm built-in depth and 2-module width for standard distribution panel integration
Environmentally conscious design complying with RoHS and substance-restriction requirements
Concurrently switching neutral conductor for enhanced safety
Multiple certifications: NF, VDE, and CB compliance for international standards

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Brand	Legrand
Series	RX³ (RX3)
Reference/SKU	419497
EAN Code	3414970693723
Number of Poles	1 pole + neutral (2 total poles)
Rated Current	10 A
Rated Voltage	230 V AC
Frequency Range	50-60 Hz
Rated Insulation Voltage	250 V
Rated Impulse Withstand Voltage	4 kV
Release Characteristic	C curve (5-10 In tripping range)
Rated Short-Circuit Breaking Capacity (Icn)	3 kA at 230V per EN 60898
Current Limiting Class	Class 3
Degree of Protection (IP)	IP20
Impact Strength Rating (IK)	IK04
Built-in Depth	44 mm
Width	17.8 mm
Height	88.7 mm
Total Depth	77.5 mm
Module Width	2 modular spacings
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable
Electric Supply Direction	By top or bottom
Concurrently Switching Neutral	Yes
Flush-Mounted Installation	Yes
Additional Equipment Possible	Yes
Pollution Degree	2
Nominal Voltage Range	210-250 V
Storage Temperature Range	-40 to +70 °C
Color	Grey
RAL Number	7035
Halogen Free	Yes
Terminal Marking	Yes
Explosion-Proof	No
Environmental Compliance	RoHS compliant, REACH declaration available
Certifications	NF, VDE, CB, IEC 60898-1
Carbon Footprint (Manufacturing)	0.565 kg CO₂ eq.
Warranty	Legrand standard product warranty

Order Legrand RX3 MCB 1P+N 10A Curve C Circuit Breaker | 419497 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
