Shop Legrand RX3 MCB 1P 32A Curve C Circuit Breaker | 419667 In Iraq Best Prices

Legrand RX3 single-pole 32A circuit breaker with C-curve protection, 4500A breaking capacity, IP20 rated, suitable for residential and small commercial installations with superior current limiting technology.

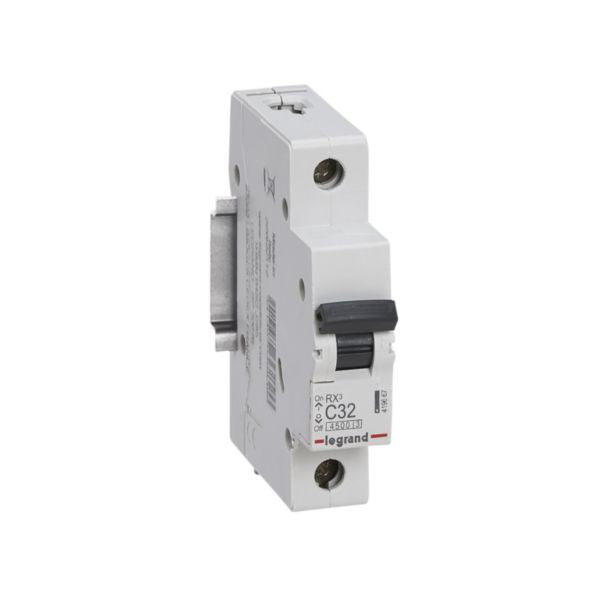

The Legrand RX3 MCB (Miniature Circuit Breaker) is a single-pole 32A circuit breaker with a C-curve tripping characteristic, designed for household and small commercial electrical installations. This reliable protective device features a breaking capacity of 4500A according to IEC 60898-1 standard, providing superior protection against overloads and short circuits. The C-curve tripping characteristic offers a tripping threshold between 160A and 320A (5 to 10 times the rated current), making it ideal for circuits with moderate inrush currents such as general lighting and standard power outlets. The RX3 breaker is engineered with advanced current limiting technology (Class 3 energy limitation) that minimizes let-through energy during fault conditions, ensuring maximum protection for downstream equipment and personnel. With IP20 protection rating against solid bodies larger than 12.5mm, this device meets fingerproof safety standards. The compact modular design allows for easy DIN rail mounting in residential and small commercial panels, and it can be supplied with either copper cable or prong busbar connections from the top or bottom. This product complies with all substance-restriction requirements and has been manufactured using environmentally conscious processes. The RX3 is halogen-free, making it safer for both installation environments and end-users. With a rated voltage of 230V AC and impulse withstand voltage of 4kV, this circuit breaker is suitable for standard European electrical installations and provides reliable long-term performance in demanding applications.

Key Features

Breaking capacity of 4500A according to IEC 60898-1 standard for household installations
C-curve tripping characteristic with threshold between 160A and 320A (5 to 10 times rated current)
Current limiting Class 3 technology minimizes let-through energy during faults
IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
Flexible supply options: copper cable or prong busbar from top or bottom connection
Compact single-pole modular design for easy DIN rail installation
Halogen-free construction for safe installation and environmentally conscious design
Rated voltage 230V AC with 4kV impulse withstand voltage
Pollution degree 2 suitable for residential and light commercial environments
Complies with substance-restriction requirements and RoHS directives

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Manufacturer	Legrand
Model Series	RX3
Reference Number	419667
EAN Code	3414970368386
Number of Poles	1 pole (single-pole)
Rated Current	32A
Rated Voltage	230V AC
Rated Insulation Voltage (Ui)	400V
Rated Impulse Withstand Voltage (Uimp)	4kV
Breaking Capacity (Icn)	4.5kA at 230V according to EN 60898
Ultimate Breaking Capacity (Icu)	4.5kA at 230V according to IEC 60947-2
Release Characteristic	Curve C
Tripping Threshold	160A to 320A (5 to 10 times rated current)
Current Limiting Class	Class 3
Degree of Protection (IP)	IP20
Impact Strength Rating (IK)	IK04
Voltage Type	AC
Frequency Range	50-60 Hz
Nominal Voltage Range	210-440V
Width in Modular Spacings	1 module
Width	17.8mm
Height	88.8mm
Depth	77.3mm
Built-in Depth	44mm
Mounting Method	DIN rail
Flush-mounted Installation	Yes
Connection Type	Screwed terminal, Busbar and cable
Electric Supply Direction	Top or bottom
Concurrently Switching Neutral	No
Number of Protected Poles	1
Pollution Degree	2
Storage Temperature Range	-25°C to +60°C
Colour	Grey
RAL Number	7035
Halogen Free	Yes
Explosion-proof	No
Additional Equipment Possible	No
Terminal Marking	No
Label Space/Information Surface	No
Compliance Standards	IEC 60898-1, EN 60898, IEC 60947-2, IEC/EN 60529
Warranty	As per Legrand standard warranty policy

Order Legrand RX3 MCB 1P 32A Curve C Circuit Breaker | 419667 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
