Description

Shop Legrand RX3 MCB 1P 25A Curve C Circuit Breaker | 419204 In Iraq Best Prices

Single-pole 25A Legrand RX3 miniature circuit breaker with curve C characteristic, 6000A breaking capacity, IP20 protection, and advanced current limiting technology for reliable household and commercial electrical protection.

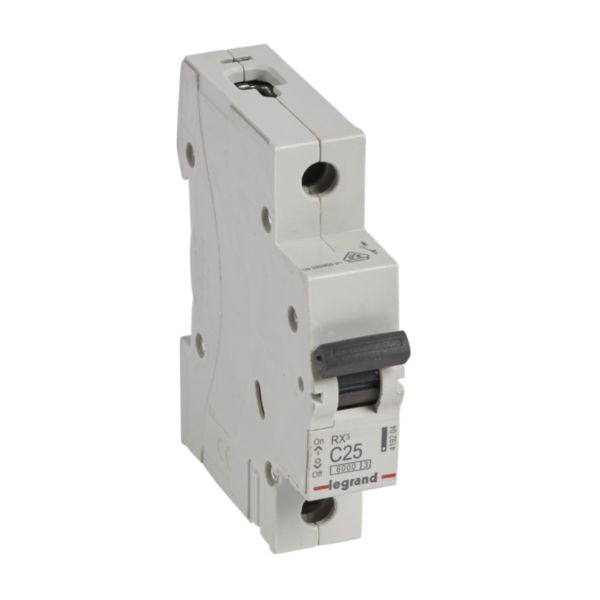

The Legrand RX3 MCB (Miniature Circuit Breaker) is a single-pole 25A circuit breaker with curve C characteristic, designed for household and small commercial electrical installations. This device provides reliable protection against overload and short-circuit faults with a breaking capacity of 6000A according to IEC 60898-1 standard. The curve C tripping characteristic offers optimal protection with a tripping threshold between 125A and 250A (5-10 times the rated current), making it ideal for circuits with normal inrush currents. The RX3 series breaker features advanced current limiting technology (Class 3) that minimizes let-through energy during short circuits, ensuring maximum protection of downstream equipment. It is fingerproof (IP20 protection) against solid bodies larger than 12.5mm and can be supplied via copper cable, prong busbar, or fork busbar connections. The device complies with all substance-restriction requirements and is designed following environmentally conscious manufacturing processes. With its compact design (17.7mm width, single modular spacing), the RX3 fits efficiently into standard DIN rail-mounted distribution boards. The breaker operates reliably across AC frequencies of 50-60Hz and maintains performance within the nominal voltage range of 210-250V. Installation should be performed by qualified electricians in compliance with local electrical installation rules to ensure safety and proper operation.

Key Features

Single-pole design with 25A rated current for household circuits
Curve C tripping characteristic with 125A-250A threshold for normal inrush current applications
6000A breaking capacity according to IEC 60898-1 standard for reliable fault protection
Advanced Class 3 current limiting technology minimizing let-through energy during short circuits
IP20 fingerproof protection against solid bodies larger than 12.5mm
Compact 17.7mm width fitting standard DIN rail distribution boards
Multiple connection options: copper cable, prong busbar, or fork busbar
AC 50-60Hz operation with 210-250V nominal voltage range
Environmentally conscious design complying with substance-restriction requirements
Terminal marking indication for easy identification and installation

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Manufacturer	Legrand
Series	RX3
Reference Number	419204
EAN Code	3414970367587
Number of Poles	1 (Single-pole)
Rated Current	25 A
Release Characteristic	Curve C
Tripping Threshold	125A to 250A (5-10 times rated current)
Rated Voltage	230 V
Nominal Voltage Range	210-250 V
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity (Icn)	6000 A at 230V according to IEC 60898-1
Breaking Capacity (Icu)	6000 A at 230V according to IEC 60947-2
Current Limiting Class	Class 3 (Maximum energy limitation)
Voltage Type	AC
Frequency Range	50-60 Hz
Degree of Protection (IP)	IP20 (Fingerproof)
Impact Strength Rating (IK)	IK02
Width	17.7 mm
Height	88.5 mm
Depth	77.8 mm (Built-in depth: 44 mm)
Modular Spacings	1 (single module width)
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	By the top or bottom
Color	Grey
RAL Number	7035
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Halogen Free	No
Terminal Marking	Yes
Flush-mounted Installation	Yes
Concurrent Switching of Neutral	No
Additional Equipment Possible	No
Standards Compliance	IEC 60898-1, IEC 60947-2, IEC/EN 60529
Environmental Compliance	RoHS Directive, REACH Declaration, Substance-restriction requirements

Order Legrand RX3 MCB 1P 25A Curve C Circuit Breaker | 419204 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
