Description

Shop Legrand RX3 MCB 1 Pole 6A Curve C Circuit Breaker | 419837 In Iraq Best Prices

Single-pole miniature circuit breaker with 6A rated current, 6000A breaking capacity, and C-curve characteristic for reliable household and commercial electrical protection

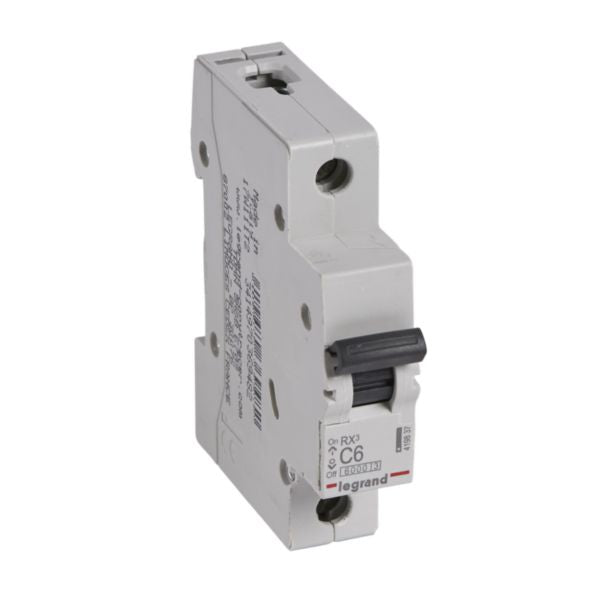

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance single-pole circuit breaker designed for household and small commercial electrical installations. With a rated current of 6A and a breaking capacity of 6000A according to IEC 60898-1 standard, this device provides exceptional protection against short circuits and overloads. The C-curve characteristic offers a tripping threshold between 30A and 60A (5-10 times the rated current), making it ideal for circuits with moderate inrush currents such as lighting and general-purpose outlets. This circuit breaker features advanced current-limiting technology classified as energy limitation class 3, which minimizes the let-through energy during fault conditions. The device is protected against solid bodies larger than 12.5mm with IP20 rating according to IEC/EN 60529 standard, ensuring fingerproof protection. It can be supplied either by copper cable or prong busbar from the top or bottom, providing flexible installation options. The compact design with a width of 17.8mm and depth of 44mm allows for space-efficient mounting on DIN rails. The RX3 circuit breaker is manufactured with halogen-free materials and designed in an environmentally conscious process, ensuring compliance with modern sustainability requirements. It operates reliably across a frequency range of 50-60 Hz with a nominal voltage of 210-440V, making it suitable for various electrical systems. The device includes comprehensive safety features and is backed by rigorous testing and certification, including VDE and CB scheme approvals.

Key Features

6000A breaking capacity according to IEC 60898-1 standard for household installations
C-curve tripping characteristic with 30A-60A threshold for moderate inrush current protection
Energy limitation class 3 for maximum let-through energy minimization during faults
IP20 fingerproof protection against solid bodies larger than 12.5mm
Flexible supply options with copper cable or prong busbar from top or bottom
Halogen-free materials designed with environmental consciousness
Compact DIN rail mounting with 1-module width for space-efficient installation

Technical Specifications

Specification	Value
Number of Poles	1 pole (single-pole)
Rated Current	6 A
Rated Voltage	230 V AC
Rated Insulation Voltage (Ui)	400 V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Breaking Capacity (Icn/Icu)	6 kA at 230V according to IEC 60898-1 and EN 60898
Release Characteristic	Curve C (30-60A tripping threshold)
Current Limiting Class	Class 3
Frequency Range	50-60 Hz
Nominal Voltage Range	210-440 V
Degree of Protection (IP)	IP20
Impact Strength (IK)	IK04
Width	17.8 mm (1 modular spacing)
Height	88.8 mm
Depth	44 mm (built-in depth) / 77.3 mm (total depth)
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	By top or bottom
Mounting Method	DIN rail
Color	Grey (RAL 7035)
Pollution Degree	2
Storage Temperature Range	-25 to 60°C
Halogen Free	Yes
Concurrently Switching Neutral	No
Additional Equipment Possible	No
Flush-mounted Installation	Yes
Reference Number	419837
EAN Code	3414970369482
Brand	Legrand
Product Line	RX3

Order Legrand RX3 MCB 1 Pole 6A Curve C Circuit Breaker | 419837 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
