Shop Legrand RX3 MCB 1 Pole 32A Curve C Circuit Breaker | 419843 In Iraq Best Prices

Single-pole 32A miniature circuit breaker with 6000A breaking capacity, C-curve protection, and IP20 rating for residential and small commercial electrical installations

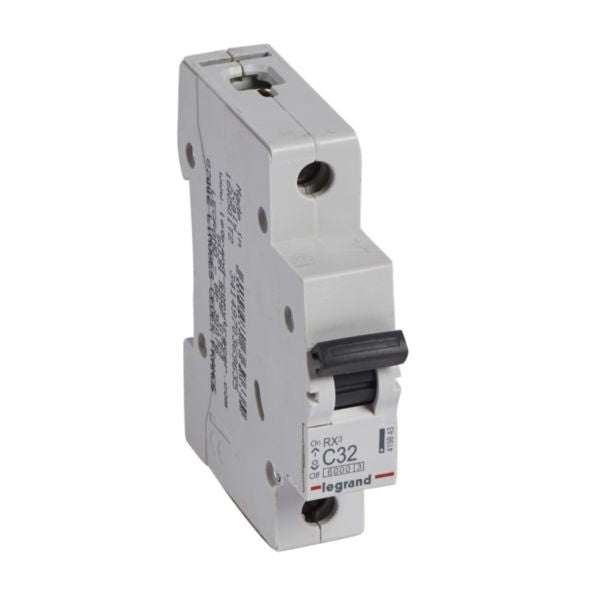

The Legrand RX3 MCB (Miniature Circuit Breaker) is a single-pole 32A rated current device designed for household and residential installations. This circuit breaker features a breaking capacity of 6000A according to IEC 60898-1 standard, with a C-curve tripping characteristic that provides protection between 160A and 320A short-circuit thresholds. The device offers maximum energy limitation with current limiting class 3, ensuring superior protection against electrical faults and overloads. Built with IP20 protection rating (fingerproof against solid bodies larger than 12.5mm), this MCB can be supplied by copper cable or prong busbar from either the top or bottom side, providing flexible installation options. The RX3 series delivers reliable performance with rated voltage of 230V AC and impulse withstand voltage of 4kV, making it ideal for modern electrical installations requiring robust circuit protection. This product is manufactured with environmentally conscious processes and complies with substance-restriction requirements including RoHS and REACH directives. The compact design features a built-in depth of 44mm and DIN rail mounting capability, making it suitable for installation in residential and small commercial electrical panels. The breaker is halogen-free and designed for pollution degree 2 environments, with storage temperature range from -25°C to +60°C. Its grey color (RAL 7035) provides a professional appearance, while the IK04 impact strength rating ensures durability in various installation environments. The device is protected against unauthorized modifications and should only be installed by qualified electricians in compliance with local installation rules and regulations.

Key Features

6000A breaking capacity according to IEC 60898-1 standard for household installations
C-curve tripping characteristic with 160A-320A short-circuit threshold protection
Maximum energy limitation with current limiting class 3 for superior fault protection
IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
Flexible supply options via copper cable or prong busbar from top or bottom installation
DIN rail mounting with 44mm built-in depth for compact panel integration
Halogen-free design compliant with RoHS and REACH environmental requirements
4kV impulse withstand voltage for enhanced durability and reliability

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Number of Poles	1 pole (single-pole)
Rated Current	32A
Rated Voltage	230V AC
Rated Insulation Voltage	400V
Rated Impulse Withstand Voltage	4kV
Breaking Capacity (Icn)	6000A at 230V according to EN 60898
Breaking Capacity (Icu)	6000A at 230V according to IEC 60947-2
Release Characteristic	Curve C (160A-320A short-circuit threshold)
Current Limiting Class	3 (Maximum energy limitation)
Frequency	50-60 Hz
Degree of Protection (IP)	IP20 (Fingerproof)
Impact Strength Rating	IK04
Built-in Depth	44mm
Width (in modular spacings)	1 module
Physical Width	17.8mm
Physical Height	88.8mm
Physical Depth	77.3mm
Color	Grey (RAL 7035)
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable
Electric Supply Direction	Top or bottom
Nominal Voltage Range	210-440V
Storage Temperature Range	-25°C to +60°C
Pollution Degree	2
Halogen Free	Yes
Flush-mounted Installation	Yes
Concurrently Switching Neutral	No
Additional Equipment Possible	No
Explosion-proof	No
Reference Number (SKU)	419843
EAN Code	3414970369635
Brand	Legrand
Series	RX³

Order Legrand RX3 MCB 1 Pole 32A Curve C Circuit Breaker | 419843 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
