Description

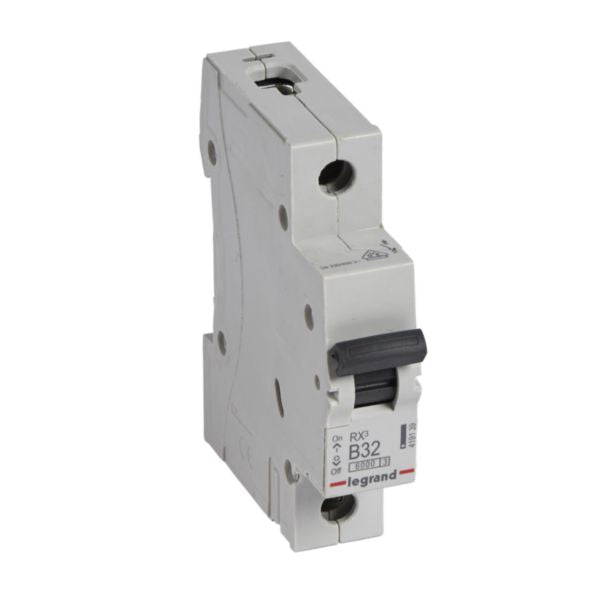

Shop Legrand RX3 MCB 1 Pole 32A Curve B Circuit Breaker | 419139 In Iraq Best Prices

Single-pole miniature circuit breaker with 32A rated current, B-curve characteristic, and 6000A breaking capacity for reliable residential and commercial electrical protection.

The Legrand RX3 MCB (Miniature Circuit Breaker) is a high-performance electrical protection device designed for residential and small commercial installations. This single-pole circuit breaker features a 32A rated current with a B-curve release characteristic, providing optimal protection against overcurrent and short-circuit faults. With a breaking capacity of 6000A according to IEC 60898-1 standard, this device ensures reliable protection for household electrical systems and small commercial applications. This MCB features advanced current limiting technology (Class 3) that minimizes let-through energy during fault conditions, protecting downstream equipment from damage. The device can be supplied with copper cable, prong busbar, or fork busbar connections, offering flexible installation options. With an IP20 protection rating (fingerproof against solid bodies larger than 12.5mm), this breaker meets international safety standards and provides secure operation in various environments. The RX3 series is engineered with environmental consciousness and complies with substance-restriction requirements. It features a compact modular design suitable for DIN rail mounting in distribution panels and switchboards. The B-curve characteristic ensures protection with a tripping threshold between 3 and 5 times the rated current, making it ideal for circuits with moderate inrush currents typical in residential applications.

Key Features

6000A breaking capacity according to IEC 60898-1 standard for household installations
B-curve tripping characteristic with threshold between 3-5 times rated current (96A-160A)
Class 3 current limiting technology minimizing let-through energy during faults
IP20 protection rating - fingerproof against solid bodies larger than 12.5mm
Flexible connection options: copper cable, prong busbar, or fork busbar
Compact modular design with DIN rail mounting capability
Environmentally conscious design complying with substance-restriction requirements
Rated for 230V AC with 50-60Hz frequency operation
Single pole configuration suitable for individual circuit protection
Terminal marking indication for easy circuit identification

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Number of Poles	1 pole
Rated Current	32 A
Release Characteristic	B curve
Breaking Capacity	6000A (6 kA) at 230V
Rated Voltage	230V AC
Rated Insulation Voltage	500V
Impulse Withstand Voltage	4 kV
Frequency Range	50-60 Hz
Current Limiting Class	Class 3
Protection Degree (IP)	IP20
Impact Strength (IK)	IK02
Width	17.7 mm (1 modular spacing)
Height	88.5 mm
Depth	77.8 mm (built-in depth 44 mm)
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable
Color	Grey (RAL 7035)
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	210-250V
Pollution Degree	2
Flush-mounted Installation	Yes
Concurrently Switching Neutral	No
Halogen Free	No
Reference Number	419139
EAN Code	3414970366818

Order Legrand RX3 MCB 1 Pole 32A Curve B Circuit Breaker | 419139 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
