Shop Legrand RX3 MCB 1 Pole 25A Curve C Circuit Breaker | 419842 In Iraq Best Prices

Reliable single-pole 25A circuit breaker with 6000A breaking capacity, C-curve characteristic, and advanced current limiting technology for household and commercial electrical protection.

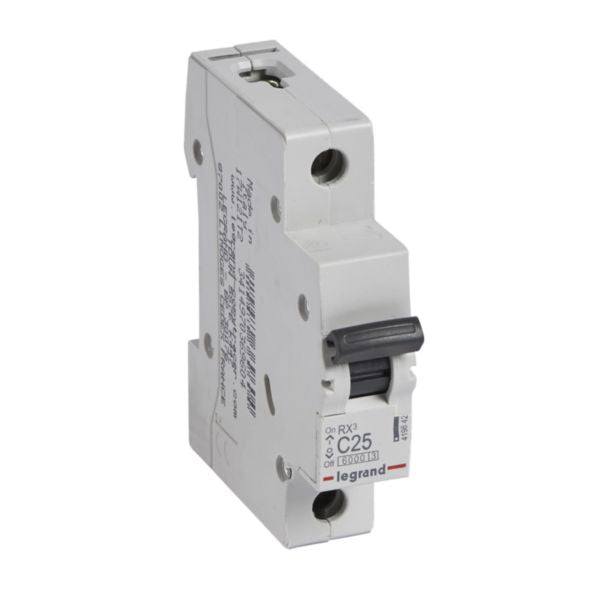

The Legrand RX3 MCB (Miniature Circuit Breaker) is a single-pole 25A circuit breaker with a C-curve characteristic, designed for household and small commercial electrical installations. This device features a breaking capacity of 6000A according to IEC 60898-1 standard, providing reliable protection against short circuits and overloads. The tripping threshold in case of short-circuit ranges between 125A and 250A (C curve between 5 In and 10 In), making it suitable for general-purpose circuits with moderate inrush currents. The RX3 breaker is engineered with advanced current limiting technology (Class 3 energy limitation) to minimize the let-through energy during fault conditions, ensuring maximum protection for connected equipment. It can be supplied by either copper cable or prong busbar from the top or bottom, providing flexible installation options. The device is protected against solid bodies larger than 12.5mm with IP20 rating according to IEC/EN 60529 standard, offering safe operation in various environments. This environmentally conscious product complies with substance-restriction requirements and is designed for DIN rail mounting in residential and commercial panels. With a rated voltage of 230V AC and an impulse withstand voltage of 4kV, the RX3 delivers reliable performance in demanding electrical systems. The device features a compact design with a built-in depth of 44mm and is available in grey color (RAL 7035), making it compatible with modern electrical installations.

Key Features

6000A breaking capacity according to IEC 60898-1 standard for household installations
C-curve tripping characteristic with threshold between 125A and 250A for general-purpose circuits
Class 3 current limiting technology for maximum energy limitation and equipment protection
IP20 fingerproof protection against solid bodies larger than 12.5mm
Flexible installation with copper cable or busbar supply from top or bottom
DIN rail mounting with 1-module width (17.8mm) for compact panel integration
Rated voltage 230V AC with 4kV impulse withstand voltage
Environmentally conscious design compliant with substance-restriction requirements
Halogen-free construction for safer operation and reduced environmental impact
Suitable for both residential and small commercial electrical applications

Technical Specifications

Specification	Value
Product Type	Miniature Circuit Breaker (MCB)
Brand	Legrand
Series	RX3
Reference Number	419842
EAN Code	3414970369604
Number of Poles	1 (Single Pole)
Rated Current	25 Amperes
Rated Voltage	230V AC
Rated Insulation Voltage (Ui)	400V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Breaking Capacity (Icn)	6000A at 230V according to EN 60898
Short-Circuit Breaking Capacity (Icu)	6000A at 230V according to IEC 60947-2
Trip Characteristic	C-Curve (125A-250A)
Current Limiting Class	Class 3
Frequency	50-60 Hz
Degree of Protection (IP)	IP20
Impact Strength (IK)	IK04
Built-in Depth	44 mm
Width	17.8 mm (1 modular spacing)
Height	88.8 mm
Total Depth	77.3 mm
Color	Grey (RAL 7035)
Mounting Method	DIN Rail
Connection Type	Screwed Terminal, Busbar and Cable
Electric Supply Direction	Top or Bottom
Pollution Degree	2
Nominal Voltage Range	210-440V
Storage Temperature Range	-25°C to +60°C
Halogen Free	Yes
Flush-Mounted Installation	Yes
Concurrently Switching Neutral	No
Additional Equipment Possible	No
Voltage Type	AC
Explosion-Proof	No

Order Legrand RX3 MCB 1 Pole 25A Curve C Circuit Breaker | 419842 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
