Description

Shop Legrand RTX3 Thermal Overload Relay 80-100A Class 10A | 416751 In Iraq Best Prices

Professional thermal overload relay for motor protection with adjustable 80-100A range, Class 10A rating, and direct CTX3 contactor attachment capability for industrial applications.

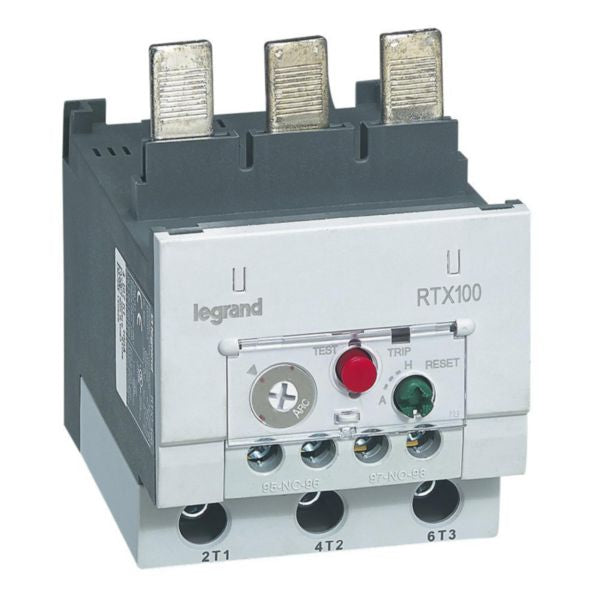

The Legrand RTX3 Thermal Overload Relay is a professional-grade motor protection device designed for tertiary and industrial installations. This relay offers adjustable current range from 80 to 100 amperes with Class 10A release classification, providing reliable protection against thermal overload conditions in three-phase asynchronous motors. The device features direct attachment capability to CTX3 contactors, making it an ideal solution for integrated motor control systems. Equipped with 1NO (normally open) and 1NC (normally closed) auxiliary contacts rated at 0.75A/240V AC, this thermal relay ensures comprehensive circuit protection and control. The cage terminals accommodate power connections from 25mm² to 35mm², with auxiliary circuit capacity up to 1mm². The RTX3 includes a reset button selector allowing both automatic and manual reset modes, a trip indicator for visual fault detection, and a stop/test button for system verification. With a maximum rated operation voltage of 690V and screw connection terminals, the RTX3 thermal overload relay meets international industrial standards and is suitable for demanding applications. The device can be mounted independently using the optional RTX3 separate mounting unit (CatNo 416596), offering flexibility in installation configurations. This relay is an essential component for motor protection systems in modern industrial and tertiary sector installations.

Key Features

Adjustable current range 80-100A with Class 10A release classification
1NO and 1NC auxiliary contacts rated 0.75A/240V AC for comprehensive circuit control
Direct attachment to CTX3 contactors for integrated motor control systems
Reset button selector with automatic or manual reset modes and trip indicator
Maximum rated operation voltage 690V with cage terminals for power 25-35mm² and auxiliary 1mm²

Technical Specifications

Specification	Value
Product Type	Thermal Overload Relay
Model	RTX3 100
Adjustable Current Range	80-100 A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690 V AC
Auxiliary Contacts	1NO + 1NC (0.75A / 240V AC)
Power Terminal Capacity	25mm² to 35mm²
Auxiliary Circuit Terminal Capacity	1mm²
Main Circuit Connection Type	Screw Connection
Mounting Method	Direct attachment to CTX3 contactor
Reset Options	Automatic or Manual Reset
SKU	416751
EAN	3414970407115
Manufacturer	Legrand
Application	Three-phase asynchronous motor protection

Order Legrand RTX3 Thermal Overload Relay 80-100A Class 10A | 416751 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
