Description

Shop Legrand RTX3 Thermal Overload Relay 0.1-0.16A Class 10A | 416640 In Iraq Best Prices

Precision thermal overload relay for motor protection with 0.1-0.16A range, CLASS 10 rating, auxiliary contacts, and flexible mounting options for industrial applications.

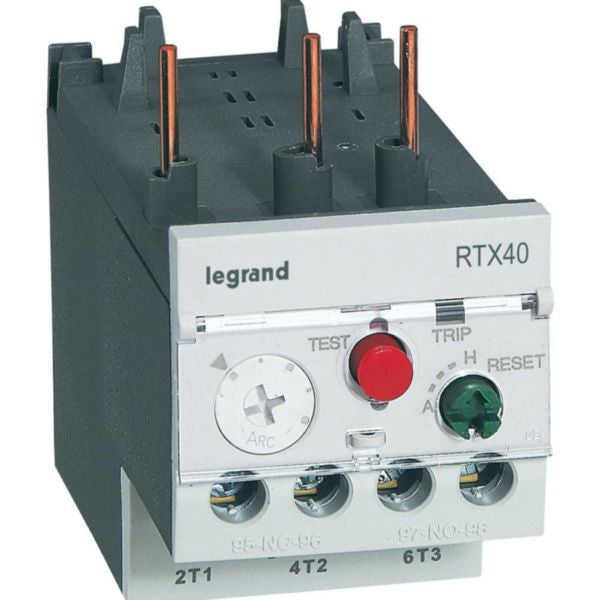

The Legrand RTX³ Thermal Overload Relay Model 416640 is a precision-engineered protection device designed for three-phase asynchronous motors in tertiary and industrial installations. This thermal overload relay provides reliable motor protection with an adjustable current range of 0.1-0.16A and operates at a maximum rated voltage of 690V. The relay features direct attachment capability to CTX3 contactors, making it an ideal choice for integrated motor control systems. This advanced protection device incorporates 1 normally open (NO) and 1 normally closed (NC) auxiliary contact rated at 0.75A/240V AC, ensuring comprehensive circuit control and monitoring. The RTX³ relay includes a reset button selector allowing users to choose between automatic or manual reset modes, a visual trip indicator for fault detection, and a convenient stop/test button for maintenance and testing purposes. With screw terminal connections supporting up to 1mm² power and auxiliary circuit wiring, this relay provides secure and reliable electrical connections. The thermal overload relay is specially designed for demanding tertiary and industrial applications where motor protection is critical. It can be mounted independently using the RTX3 separate mounting unit (CatNo 416591) or directly integrated with CTX3 contactors. The CLASS 10 release classification ensures precise and reliable protection against thermal overloads, making this relay an essential component for any professional motor control installation.

Key Features

Adjustable current range from 0.1 to 0.16A with CLASS 10 release classification for precise motor protection
Direct attachment capability to CTX3 contactors for seamless motor control integration
1 normally open and 1 normally closed auxiliary contact rated at 0.75A/240V AC for comprehensive circuit control
Reset button selector offering automatic or manual reset modes with visual trip indicator for fault detection
Screw terminal connections supporting up to 1mm² power and auxiliary circuit wiring with maximum rated operation voltage of 690V

Technical Specifications

Specification	Value
Product Model	RTX³ 40
Reference Number	416640
EAN Code	3414970405494
Adjustable Current Range	0.1-0.16A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690V
Normally Open Auxiliary Contacts	1
Normally Closed Auxiliary Contacts	1
Auxiliary Contact Rating	0.75A / 240V AC
Power Terminal Capacity	1mm²
Auxiliary Circuit Terminal Capacity	1mm²
Electrical Connection Type	Screw connection
Mounting Method	Direct attachment to CTX3 or independent with mounting unit 416591
Reset Options	Automatic or Manual reset selector
Additional Features	Trip indicator, Stop/Test button

Order Legrand RTX3 Thermal Overload Relay 0.1-0.16A Class 10A | 416640 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
