Shop Legrand RTX3 Thermal Overload Relay 120-185A Class 10A | 416783 In Iraq Best Prices

Legrand RTX³ thermal overload relay with 120-185A adjustable range, CLASS 10 protection, and direct CTX3 contactor compatibility for reliable industrial motor protection.

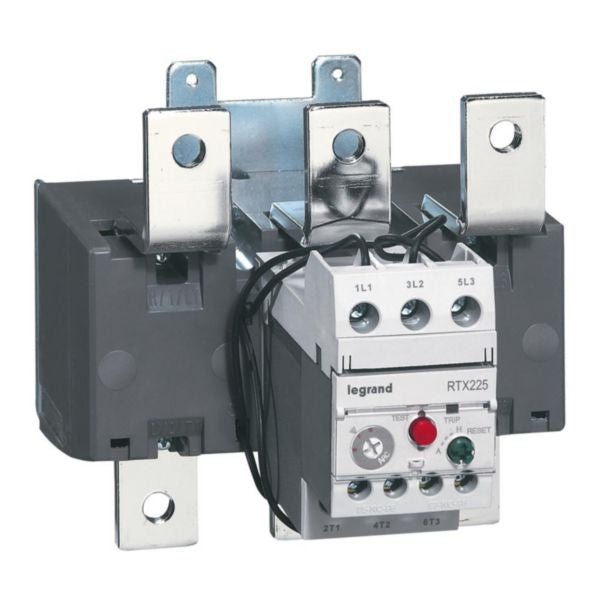

The Legrand RTX³ Thermal Overload Relay (Reference 416783) is a high-performance motor protection device designed for industrial and tertiary installations. With an adjustable current range of 120-185A and CLASS 10 release class, this relay provides reliable protection against thermal overload conditions in three-phase asynchronous motor circuits. The device features direct mounting capability on fixing plates and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact rated at 0.75A/240V AC, ensuring comprehensive circuit protection and signaling capabilities. This thermal overload relay is engineered for direct association with CTX3 contactors, making it an ideal choice for motor control applications in industrial environments. The screw terminal connections provide secure power connections up to 95mm² and auxiliary circuit connections up to 1mm². The device incorporates a reset button selector allowing operators to choose between automatic or manual reset modes, a trip indicator for visual fault confirmation, and a Stop/Test button for convenient testing and troubleshooting. Maximum rated operation voltage is 690V, making it suitable for high-power industrial applications. The RTX³ relay is specifically engineered to meet the demanding requirements of tertiary and industrial installations where reliable motor protection is critical. Its CLASS 10 release class ensures rapid response to thermal faults, protecting motors from damage and extending equipment lifespan. The product is manufactured to the highest standards by Legrand, a global leader in electrical and digital infrastructure solutions.

Key Features

Adjustable current range from 120A to 185A with precise thermal protection
CLASS 10 release class for rapid response to thermal overload conditions
1 normally open (NO) and 1 normally closed (NC) auxiliary contacts rated 0.75A/240V AC
Reset button selector with automatic or manual reset mode options
Direct mounting on fixing plates with independent installation capability
Compatible with CTX3 contactors for seamless motor control integration
Screw terminal connections supporting power up to 95mm² and auxiliary circuits up to 1mm²
Trip indicator and Stop/Test button for convenient operation and troubleshooting
Maximum rated operation voltage of 690V for high-power industrial applications
Designed specifically for tertiary and industrial motor protection installations

Technical Specifications

Specification	Value
Product Type	Thermal Overload Relay
Brand	Legrand
Series	RTX³
Reference Number	416783
EAN Code	3414970407405
Adjustable Current Range	120-185A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690V
Normally Open Auxiliary Contacts	1
Normally Closed Auxiliary Contacts	1
Change-over Auxiliary Contacts	0
Auxiliary Contact Rating	0.75A / 240V AC
Main Circuit Screw Terminal Capacity	95mm²
Auxiliary Circuit Screw Terminal Capacity	1mm²
Main Circuit Connection Type	Screw connection
Mounting Method	Direct attachment on fixing plate
Reset Options	Automatic or manual reset selector
Features	Trip indicator, Stop/Test button, Reset button selector
Compatible Contactors	CTX3 contactor series
Application	3-phase asynchronous motor protection
Installation Type	Tertiary and industrial installations

Order Legrand RTX3 Thermal Overload Relay 120-185A Class 10A | 416783 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
