Shop Legrand RTX3 65 Thermal Overload Relay 22-32A Class 10A | 416707 In Iraq Best Prices

Professional thermal overload relay with 22-32A adjustable current range, Class 10A protection, direct CTX3 contactor mounting, dual auxiliary contacts, and selectable automatic or manual reset for industrial motor protection applications.

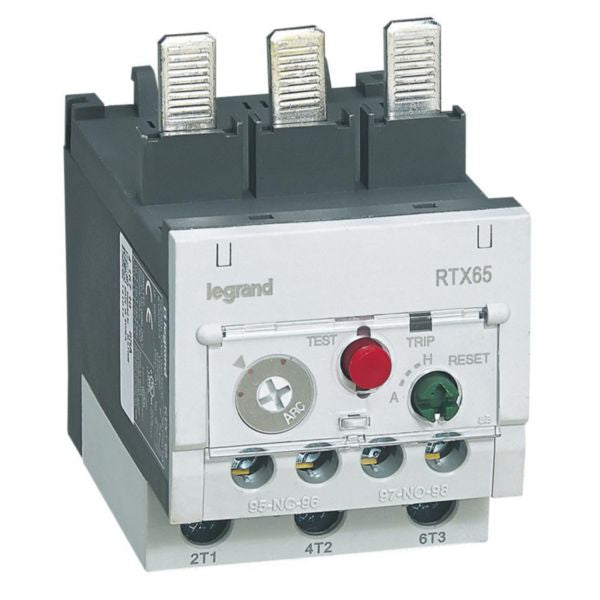

The Legrand RTX3 65 Thermal Overload Relay is a professional-grade motor protection device designed for tertiary and industrial installations. This relay provides reliable thermal overload protection with an adjustable current range of 22-32A and is specifically engineered for use with CTX3 contactors. The relay features a maximum rated operation voltage of 690V and utilizes screw connection terminals for secure power circuit connections with capacity up to 6mm². It incorporates a sophisticated reset button selector allowing operators to choose between automatic or manual reset modes, ensuring flexibility in various installation scenarios. The device includes a trip indicator for visual fault confirmation and a stop/test button for maintenance verification. With 1 normally open and 1 normally closed auxiliary contact rated at 0.75A/240V AC, this relay provides comprehensive control and signaling capabilities for complex motor protection schemes.

Key Features

Adjustable thermal protection with 22-32A current range for flexible motor sizing
CLASS 10 release class providing precise overload protection per IEC standards
Direct attachment mounting to CTX3 contactors for compact integrated solutions
Dual auxiliary contacts (1NO + 1NC) rated 0.75A/240V AC for signaling and control
Reset button selector with automatic or manual reset modes for operational flexibility
Trip indicator for visual fault detection and maintenance verification
Stop/Test button for safe equipment testing and diagnostics
Cage terminals supporting power circuit up to 6mm² and auxiliary circuit up to 1mm²
690V maximum rated operation voltage for industrial three-phase applications
Screw connection terminals ensuring secure and reliable electrical connections

Technical Specifications

Specification	Value
Model	RTX3 65
Manufacturer	Legrand
Product Reference	416707
EAN Code	3414970406576
Adjustable Current Range	22-32 A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690 V
Mounting Method	Direct attachment to CTX3 contactor
Main Circuit Connection Type	Screw connection
Power Circuit Cage Terminal Capacity	4mm² to 6mm²
Auxiliary Circuit Cage Terminal Capacity	1mm²
Normally Open Auxiliary Contacts	1
Normally Closed Auxiliary Contacts	1
Change-over Auxiliary Contacts	0
Auxiliary Contact Rating	0.75A / 240V AC
Reset Options	Automatic or Manual Reset Selector
Features	Trip Indicator, Stop/Test Button, Reset Button Selector
Application Type	Tertiary and Industrial Motor Protection
Compatible Contactor	CTX3 Series
Installation Type	Direct attachment or separate mounting unit (CatNo 416594)

Order Legrand RTX3 65 Thermal Overload Relay 22-32A Class 10A | 416707 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
