Shop Legrand RTX3 65 Thermal Overload Relay 12-18A Class 10A | 416704 In Iraq Best Prices
Professional thermal overload relay for motor protection with 12-18A adjustable range, Class 10A, direct CTX3 contactor mounting, and dual auxiliary contacts for industrial applications.

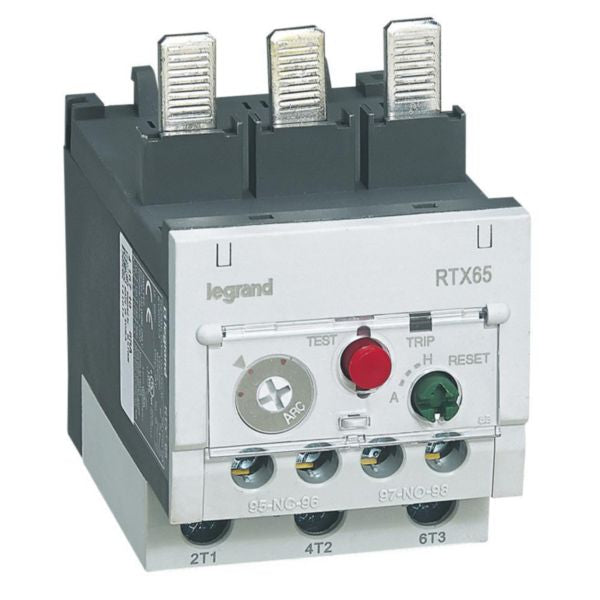

The Legrand RTX3 65 Thermal Overload Relay is a professional-grade motor protection device designed for tertiary and industrial installations. This relay provides reliable protection against motor overload conditions with an adjustable current range of 12-18A and operates at a maximum rated voltage of 690V. The device features direct attachment capability to CTX3 contactors, making it an ideal choice for integrated motor control systems. With its Class 10A release classification, this thermal relay ensures precise and consistent protection for three-phase asynchronous motors in demanding industrial environments.
This thermal overload relay is equipped with advanced control features including a reset button selector that allows for both automatic and manual reset modes, a trip indicator for visual fault detection, and a stop/test button for maintenance and testing purposes. The auxiliary contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact, each rated at 0.75A and 240V AC, providing flexible signaling capabilities. The cage terminals support power connections up to 2.5mm² and auxiliary circuit connections up to 1mm², ensuring compatibility with various installation configurations.
The RTX3 65 can be mounted independently using the separate mounting unit (CatNo 416594) or directly attached to compatible contactors. This versatility makes it suitable for both new installations and retrofit applications. The product is fully compliant with RoHS directives and includes comprehensive technical documentation, CAD specifications, and installation guides to support proper implementation in industrial motor control applications.
Key Features
- Adjustable thermal protection with 12-18A current range for precise motor overload protection
- Direct attachment to CTX3 contactors for integrated motor control systems
- Class 10A release classification ensuring accurate and consistent protection
- Dual auxiliary contacts (1NO + 1NC) rated at 0.75A/240V AC for flexible signaling
- Reset button selector with automatic and manual reset modes plus trip indicator
- Maximum rated operation voltage of 690V for high-power industrial applications
- Screw connection terminals supporting up to 2.5mm² power and 1mm² auxiliary circuits
- Independent mounting capability using separate mounting unit (CatNo 416594)
- Stop/Test button for maintenance and testing procedures
- RoHS compliant with comprehensive technical documentation and CAD specifications
Technical Specifications
| Specification |
Value |
| Product Model | RTX3 65 |
| Manufacturer | Legrand |
| Reference Number | 416704 |
| EAN Code | 3414970406514 |
| Adjustable Current Range | 12-18 A |
| Release Class | CLASS 10 |
| Maximum Rated Operation Voltage | 690 V |
| Mounting Method | Direct attachment to CTX3 contactor |
| Main Circuit Connection Type | Screw connection |
| Normally Open Auxiliary Contacts | 1 |
| Normally Closed Auxiliary Contacts | 1 |
| Change-over Auxiliary Contacts | 0 |
| Auxiliary Contact Rating | 0.75A / 240V AC |
| Power Cage Terminal Capacity | 2.5mm² |
| Auxiliary Circuit Terminal Capacity | 1mm² |
| Reset Options | Automatic or Manual Reset |
| Control Features | Reset button selector, Trip indicator, Stop/Test button |
| Independent Mounting Unit | CatNo 416594 (optional) |
| Application | Three-phase asynchronous motor protection |
| Compliance | RoHS Directive compliant |
