Shop Legrand RTX3 40 Thermal Overload Relay 28-40A Class 10A | 416677 In Iraq Best Prices

Professional thermal overload relay for motor protection with 28-40A adjustable range, Class 10A rating, and direct CTX3 contactor attachment capability

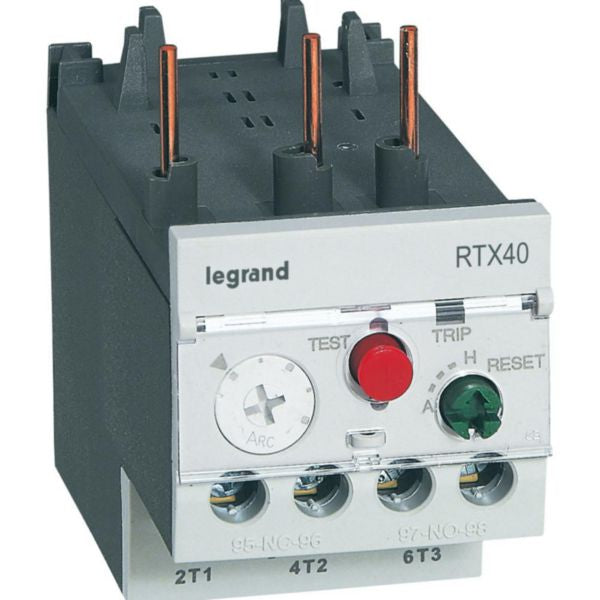

The Legrand RTX3 40 Thermal Overload Relay is a professional-grade motor protection device designed for tertiary and industrial installations. This relay provides reliable overload protection for three-phase asynchronous motors with an adjustable current range of 28-40A and Class 10A release classification. The device features direct attachment capability to CTX3 contactors, making it an ideal solution for comprehensive motor control systems. Equipped with 1NO + 1NC auxiliary contacts rated at 0.75A/240V AC, this thermal overload relay ensures precise protection and signaling capabilities. The screw terminals accommodate power connections from 4mm² to 10mm² and auxiliary circuit connections of 1mm². The RTX3 40 incorporates advanced safety features including a reset button selector for both automatic and manual reset modes, a trip indicator for visual fault detection, and a dedicated Stop/Test button for maintenance and testing purposes. Designed for maximum reliability and ease of installation, this relay can be mounted independently using the optional RTX3 separate mounting unit (CatNo 416592). The device operates at a maximum rated voltage of 690V and features screw connection terminals for secure and permanent installation. Perfect for motor protection applications in industrial facilities, manufacturing plants, and commercial installations requiring dependable overload protection.

Key Features

Adjustable current range 28-40A with Class 10A release classification for precise motor protection
Direct attachment to CTX3 contactors for integrated motor control solutions
1NO + 1NC auxiliary contacts rated 0.75A/240V AC for signaling and control
Reset button selector with automatic and manual reset modes for flexible operation
Trip indicator and Stop/Test button for easy maintenance and fault detection

Technical Specifications

Specification	Value
Product Type	Thermal Overload Relay
Model	RTX3 40
Manufacturer	Legrand
SKU/Reference	416677
EAN Code	3414970406194
Adjustable Current Range	28-40 A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690 V
Mounting Method	Direct attachment to CTX3 contactor
Main Circuit Connection	Screw connection
Power Terminal Capacity	4mm² to 10mm²
Auxiliary Circuit Terminal Capacity	1mm²
Auxiliary Contacts NO	1 (Normally Open)
Auxiliary Contacts NC	1 (Normally Closed)
Auxiliary Contact Rating	0.75A / 240V AC
Reset Options	Automatic or Manual Reset
Installation Type	Tertiary and Industrial Applications
Special Features	Trip indicator, Stop/Test button, Independent mounting capability
Optional Mounting Unit	RTX3 separate mounting unit CatNo 416592
Application	Three-phase asynchronous motor protection

Order Legrand RTX3 40 Thermal Overload Relay 28-40A Class 10A | 416677 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
