Description

Shop Legrand RTX3 225 Thermal Overload Relay 65-100A Class 10A | 416780 In Iraq Best Prices

Professional thermal overload relay for motor protection with 65-100A adjustable range, CLASS 10 release class, dual auxiliary contacts, and integrated reset/test functions for industrial applications.

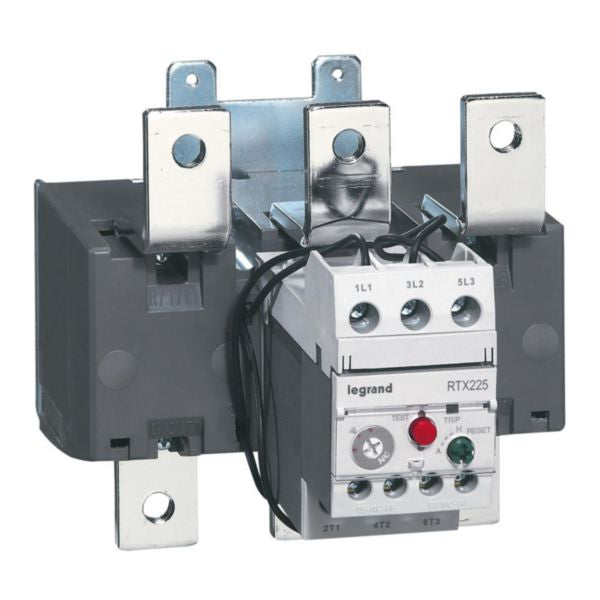

The Legrand RTX³ 225 Thermal Overload Relay is a professional-grade motor protection device designed for industrial and tertiary installations. This relay provides reliable protection against thermal overload conditions with an adjustable current range of 65-100A and operates at a maximum rated voltage of 690V. The device features advanced protection capabilities with CLASS 10 release classification, ensuring precise and dependable motor safeguarding in demanding industrial environments. This thermal overload relay is specifically engineered for direct association with CTX3 contactors, offering seamless integration into existing motor control systems. The RTX³ 225 model includes dual auxiliary contacts (1NO + 1NC) rated at 0.75A/240V AC, enabling flexible signaling and control circuit integration. The screw terminal connections accommodate power conductors up to 35mm² and auxiliary circuit conductors up to 1mm², providing versatile installation options for various industrial applications. The relay incorporates user-friendly features including a reset button selector with both automatic and manual reset options, a visual trip indicator for immediate fault identification, and a convenient stop/test button for system diagnostics. These features make the RTX³ 225 an ideal choice for applications requiring robust motor overload protection with comprehensive control and monitoring capabilities in industrial and commercial settings.

Key Features

Adjustable current range 65-100A for flexible motor protection settings
CLASS 10 release classification for precise thermal protection
1NO + 1NC auxiliary contacts rated 0.75A/240V AC for signaling circuits
Direct mounting capability on fixing plate with independent attachment option
Automatic or manual reset selector with trip indicator and stop/test button
Maximum rated operation voltage 690V for industrial applications
Screw terminal connections: 35mm² power, 1mm² auxiliary circuit capacity
Direct association with CTX3 contactors for seamless system integration
Visual trip indicator for immediate fault identification
Robust design for tertiary and industrial installation environments

Technical Specifications

Specification	Value
Product Name	Thermal Overload Relay RTX3 225
Manufacturer	Legrand
Product Reference	416780
EAN Code	3414970407375
Adjustable Current Range	65-100 A
Maximum Rated Operation Voltage	690 V
Release Class	CLASS 10
Mounting Method	Direct attachment to fixing plate
Main Circuit Connection Type	Screw connection
Auxiliary Contacts - Normally Open	1 contact
Auxiliary Contacts - Normally Closed	1 contact
Auxiliary Contacts Rating	0.75A / 240V AC - 15
Power Terminal Capacity	35 mm²
Auxiliary Circuit Terminal Capacity	1 mm²
Reset Options	Automatic or Manual reset selector
Control Functions	Trip indicator, Stop/Test button
Compatible Contactor	CTX3 contactor
Application Type	Motor overload protection
Installation Category	Tertiary and Industrial installations
Number of Auxiliary Contacts Change-over	0

Order Legrand RTX3 225 Thermal Overload Relay 65-100A Class 10A | 416780 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
