Description

Shop Legrand RTX3 150 Thermal Overload Relay 63-85A Class 10A | 416762 In Iraq Best Prices

Professional thermal overload relay for motor protection with adjustable 63-85A range, CLASS 10 release class, dual auxiliary contacts, and flexible reset modes for industrial applications

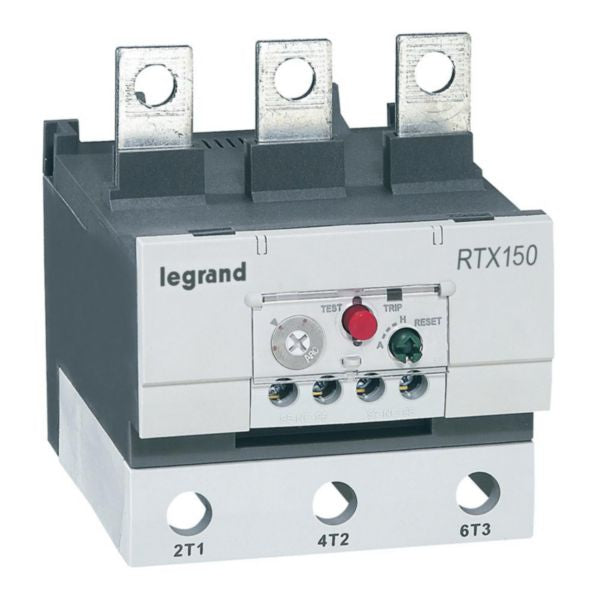

The Legrand RTX3 150 Thermal Overload Relay is a professional-grade motor protection device designed for tertiary and industrial installations. This relay provides reliable overload protection with an adjustable current range of 63-85A and operates at a maximum rated voltage of 690V. It features direct attachment mounting capability and screw terminal connections with a power capacity of 25mm² for the main circuit and 1mm² for auxiliary circuits. The relay includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact rated at 0.75A/240V AC, making it suitable for integration with CTX3 contactors. The RTX3 features a reset button selector allowing both automatic and manual reset modes, a trip indicator for visual fault detection, and a stop/test button for convenient testing and maintenance. With a release class of CLASS 10, this thermal overload relay ensures precise and reliable motor protection in demanding industrial environments.

Key Features

Adjustable current range 63-85A with CLASS 10 release class for precise motor protection
1 normally open and 1 normally closed auxiliary contact rated 0.75A/240V AC
Direct attachment mounting to CTX3 contactors or independent mounting with RTX3 separate mounting unit
Reset button selector with automatic or manual reset modes and trip indicator
Screw terminal connections: 25mm² for power circuit, 1mm² for auxiliary circuit
Maximum rated operation voltage 690V for industrial applications
Stop/Test button for convenient maintenance and testing procedures

Technical Specifications

Specification	Value
Product Name	Thermal Overload Relay RTX3 150
Reference Number	416762
EAN Code	3414970407177
Manufacturer	Legrand
Adjustable Current Range	63-85A
Maximum Rated Operation Voltage	690V
Release Class	CLASS 10
Normally Open Auxiliary Contacts	1
Normally Closed Auxiliary Contacts	1
Auxiliary Contact Rating	0.75A / 240V AC
Power Circuit Terminal Capacity	25mm²
Auxiliary Circuit Terminal Capacity	1mm²
Type of Electrical Connection	Screw connection
Mounting Method	Direct attachment to CTX3 contactor or independent mounting
Reset Options	Automatic or manual reset
Features	Trip indicator, Stop/Test button, Reset button selector
Application	Tertiary and industrial installations
Compatible With	CTX3 contactor, RTX3 separate mounting unit CatNo 416597

Order Legrand RTX3 150 Thermal Overload Relay 63-85A Class 10A | 416762 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
