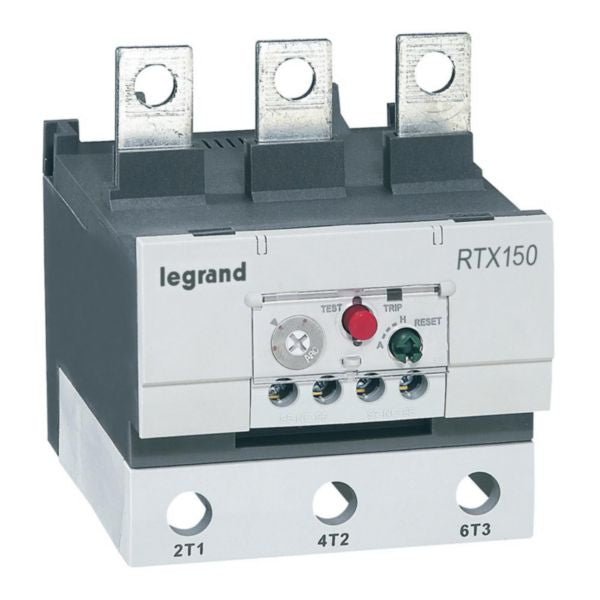

Shop Legrand RTX3 150 Thermal Overload Relay 54-75A Class 10A | 416761 In Iraq Best Prices

Legrand RTX3 150 thermal overload relay with 54-75A adjustable current range and Class 10A protection for reliable motor safeguarding in industrial applications

The Legrand RTX³ 150 Thermal Overload Relay is a precision-engineered motor protection device designed for tertiary and industrial installations. With an adjustable current range of 54-75A and Class 10A release classification, this relay provides reliable protection against motor overload conditions. The unit features direct attachment capability to CTX3 contactors, making it an ideal choice for comprehensive motor control systems. Built with screw terminals supporting up to 16mm² power connections and 1mm² auxiliary circuit connections, it ensures robust electrical integration. This thermal overload relay incorporates advanced safety features including a reset button selector that allows both automatic and manual reset modes, a trip indicator for immediate fault identification, and a Stop/Test button for system diagnostics. The device is rated for maximum operation voltage of 690V and features 1NO + 1NC auxiliary contacts with 0.75A/240V AC rating. The Class 10A release ensures rapid response to overcurrent conditions, protecting motors from thermal damage and extending equipment lifespan. Designed specifically for demanding industrial environments, the RTX³ 150 combines reliability with ease of installation. It can be mounted independently using the separate RTX3 mounting unit (CatNo 416597) or directly attached to compatible contactors. The product's compliance with RoHS directives and comprehensive technical documentation ensures seamless integration into modern electrical systems. Reference number 416761 with EAN 3414970407153 makes ordering and inventory management straightforward for electrical professionals.

Key Features

Adjustable current range 54-75A for flexible motor protection settings
Class 10A release classification ensures rapid response to overcurrent conditions
Direct attachment to CTX3 contactors for integrated motor control systems
Reset button selector with automatic and manual reset modes for operational flexibility
1NO + 1NC auxiliary contacts rated 0.75A/240V AC for signaling and control integration
Trip indicator and Stop/Test button for system diagnostics and fault identification
Maximum rated operation voltage of 690V for high-voltage industrial applications
Screw terminals supporting 16mm² power and 1mm² auxiliary circuit connections
Can be mounted independently using separate RTX3 mounting unit
RoHS compliant for environmental and regulatory compliance

Technical Specifications

Specification	Value
Product Name	Thermal Overload Relay RTX3 150
Manufacturer	Legrand
Reference Number	416761
EAN Code	3414970407153
Adjustable Current Range	54-75 A
Release Class	CLASS 10
Maximum Rated Operation Voltage	690 V
Mounting Method	Direct attachment to CTX3 contactor or independent mounting
Main Circuit Connection Type	Screw connection
Power Terminal Capacity	16 mm²
Auxiliary Circuit Terminal Capacity	1 mm²
Normally Open Auxiliary Contacts	1
Normally Closed Auxiliary Contacts	1
Change-over Auxiliary Contacts	0
Auxiliary Contact Rating	0.75A / 240V AC
Reset Options	Automatic and manual reset selector
Diagnostic Features	Trip indicator, Stop/Test button
Independent Mounting Unit	RTX3 mounting unit CatNo 416597
Application	Tertiary and industrial installations
Compliance	RoHS compliant

Order Legrand RTX3 150 Thermal Overload Relay 54-75A Class 10A | 416761 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
