Shop Legrand RTX3 150 Thermal Overload Relay 45-65A Class 10A | 416760 In Iraq Best Prices
Professional thermal overload relay for motor protection with 45-65A adjustable range, CLASS 10 release, auxiliary contacts, and flexible reset options for industrial applications.

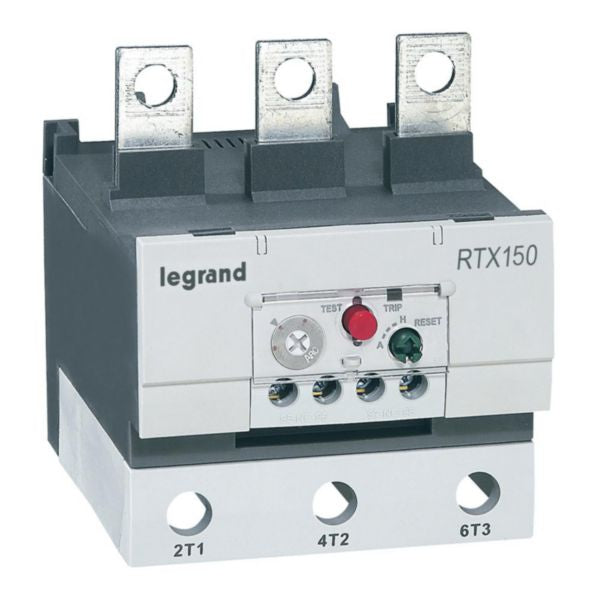

The Legrand RTX3 150 Thermal Overload Relay is a precision-engineered motor protection device designed for tertiary and industrial installations. With an adjustable current range of 45-65A and CLASS 10 release classification, this relay provides reliable protection against thermal overloads in three-phase asynchronous motor circuits. The unit features 1NO + 1NC auxiliary contacts rated at 0.75A/240V AC, enabling seamless integration with control systems and safety circuits.
This thermal overload relay is specifically engineered for direct association with CTX3 contactors, offering flexible mounting options including direct attachment or independent mounting with a separate RTX3 mounting unit (CatNo 416597). The screw terminals accommodate power connections up to 10mm² and auxiliary circuit connections up to 1mm², ensuring robust electrical connections. The relay features an intelligent reset button selector allowing both automatic and manual reset modes, a visual trip indicator for easy fault detection, and a convenient Stop/Test button for maintenance and testing procedures.
The RTX3 150 operates at a maximum rated voltage of 690V, making it suitable for a wide range of industrial applications. Its compact design and direct attachment capability to CTX3 contactors streamline installation and reduce panel space requirements. The product complies with RoHS directives and is backed by comprehensive technical documentation including instruction manuals, technical sheets in multiple languages, and CAD specifications for seamless integration into modern industrial control systems.
Key Features
- Adjustable current range 45-65A with CLASS 10 release classification for precise motor protection
- 1NO + 1NC auxiliary contacts rated at 0.75A/240V AC for seamless control system integration
- Direct attachment capability to CTX3 contactors with independent mounting unit option
- Dual reset modes - automatic and manual reset with visual trip indicator for fault detection
- Maximum rated operation voltage of 690V suitable for wide range of industrial applications
- Stop/Test button for convenient maintenance and testing procedures
- Screw terminals accommodating power connections up to 10mm² and auxiliary circuits up to 1mm²
- Compact design reducing panel space requirements in control cabinets
Technical Specifications
| Specification |
Value |
| Product Model | RTX3 150 |
| Manufacturer | Legrand |
| Reference Number | 416760 |
| EAN Code | 3414970407139 |
| Adjustable Current Range | 45-65 A |
| Release Class | CLASS 10 |
| Maximum Rated Operation Voltage | 690 V |
| Auxiliary Contacts - Normally Open | 1 (1NO) |
| Auxiliary Contacts - Normally Closed | 1 (1NC) |
| Auxiliary Contacts Rating | 0.75A / 240V AC |
| Power Terminal Capacity | 10 mm² |
| Auxiliary Circuit Terminal Capacity | 1 mm² |
| Electrical Connection Type | Screw connection |
| Mounting Method | Direct attachment to CTX3 contactor or independent mounting |
| Reset Options | Automatic or manual reset selector |
| Additional Features | Trip indicator, Stop/Test button |
| Application | Tertiary and industrial motor protection |
| Compliance | RoHS compliant |
Order Legrand RTX3 150 Thermal Overload Relay 45-65A Class 10A | 416760 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
